Operating Manual MODEL Reference Figure CP-45/55 Operation Process Tape Feeder Stick Feeder Tray Feeder * FEEDER 1.Tape Feeder Mechanical Type For bot h Paper / Emboss 1005,0603 Exclusive Feeder 8 ~ 56mm General Feeder C…
Operating Manual
MODEL
Reference Figure
CP-45/55 Operation Process
1
2
3
*FlyingCamera
1. Camera
2. Mirror
3. Head
Operating Manual
MODEL
Reference Figure
CP-45/55 Operation Process
Tape Feeder
Stick Feeder
Tray Feeder
* FEEDER
1.Tape Feeder
Mechanical Type
For both Paper / Emboss
1005,0603 Exclusive Feeder
8 ~ 56mm General Feeder
ChipR/C,Tantal,TR,Melf
SOIC,Connector….
2.Stick Feeder
Vibration / Belt
Only for Stick
Multi / Single
SOIC,PLCC,Connector,PTR…
3.Tray Feeder
Fixed/Shuttle
Only for Tray
Single / Multi
TSOP,QFP,BGA…
Operating Manual
MODEL
Reference Figure
CP-45/55 Operation Process
1 2 3 4
5 6 7

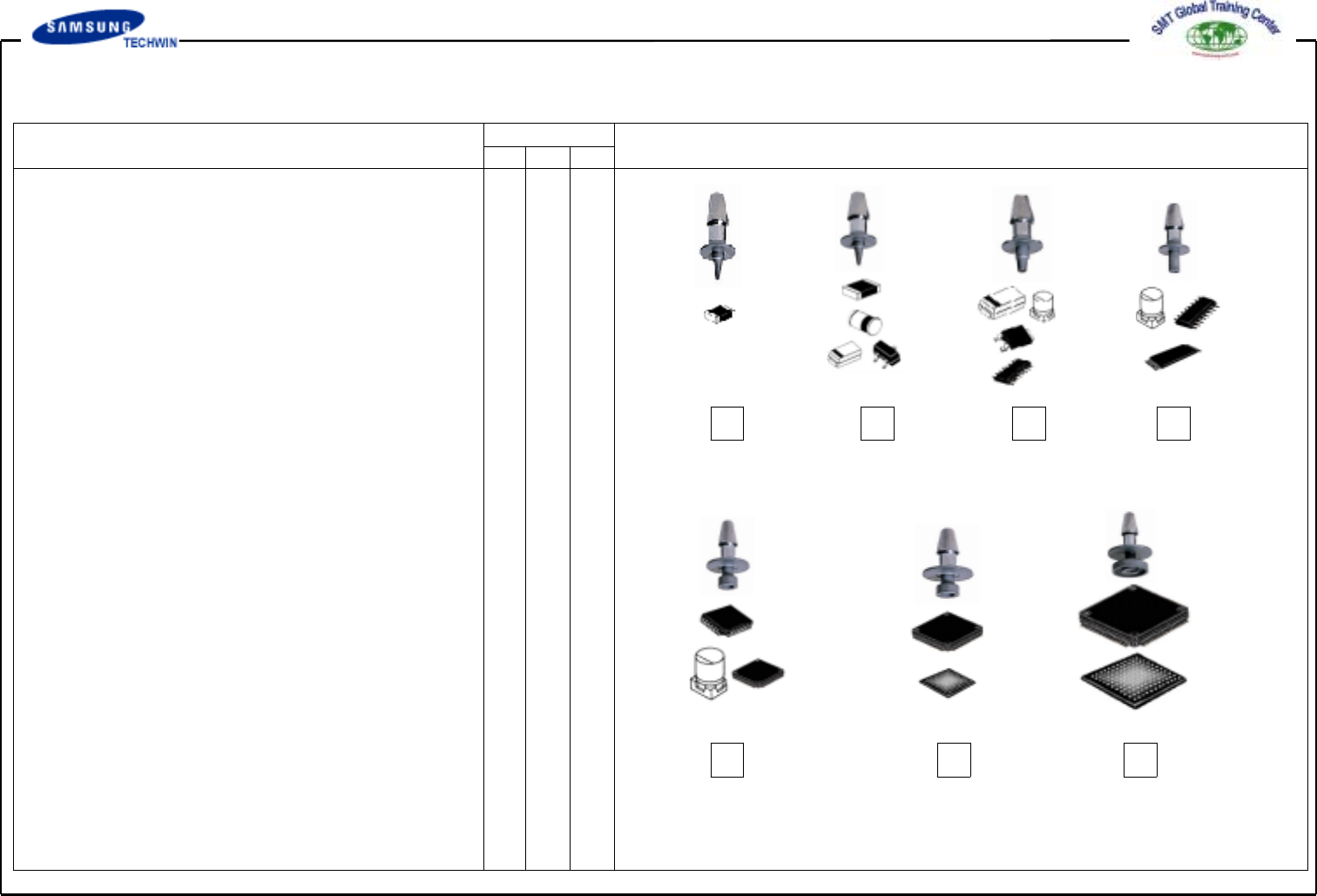

* NOZEL
1.TN-04 (0.38)
-
1005 1608
2.TN-065(0.65)
-
1608~3216 Melf Tantal(Small) TR…
3.TN-14(1.4)
-
Tantal(Middle) A/C(Small) PTR
SOP(Small)
4.TN-22(2.2)
-
A/C(Middle) SOP(Middle) TSOP
5.TN-40(4.0)
-A/C(Large) PLCC(Small) QFP(Small)
6.TN-75(7.5)
- PLCC(Middle) QFP(Middle)
BGA(Middle)
7.TN-110(11.0)
-PLCC(Large) QFP(Large) BGA(Large)
