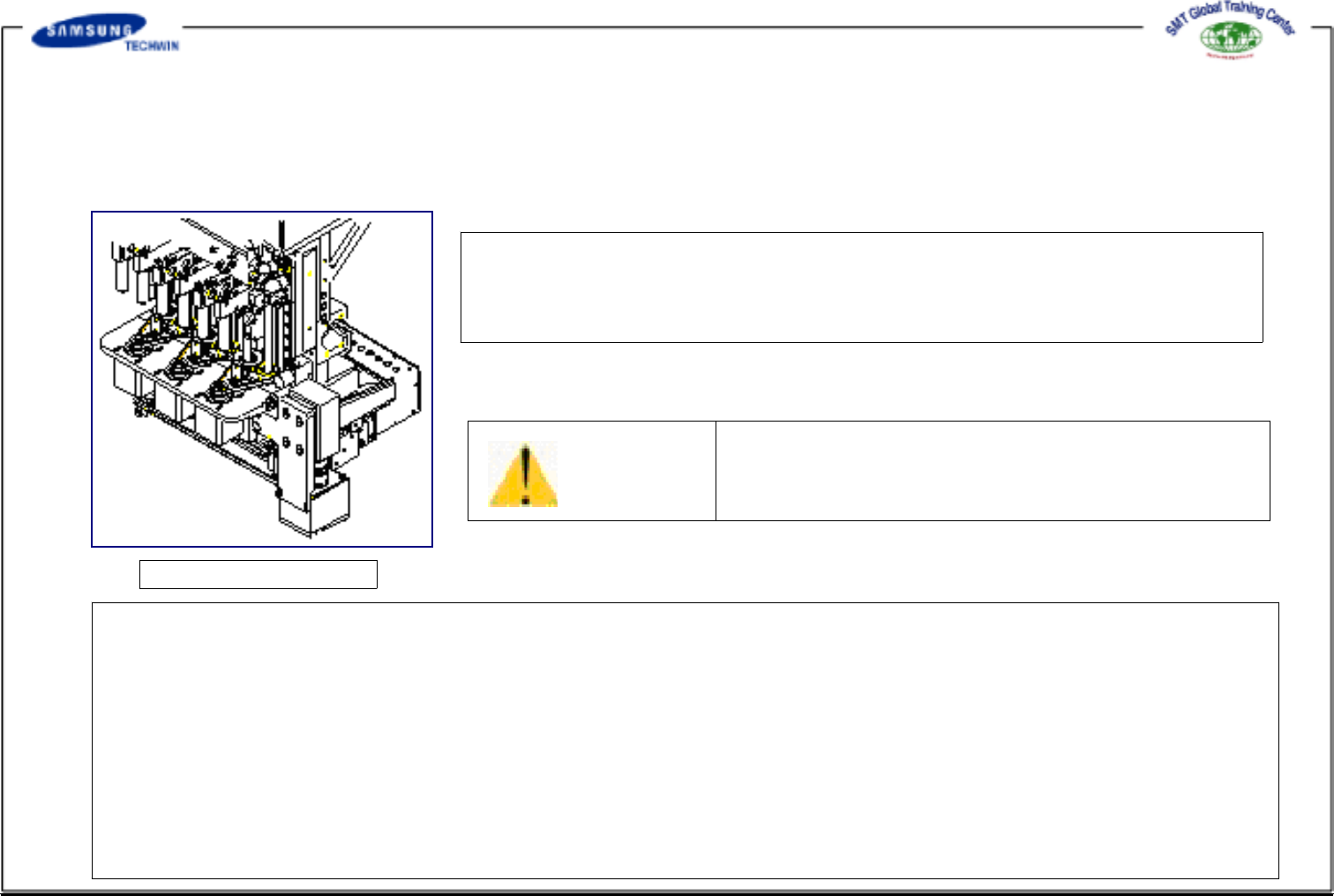

Operating Manual Reference Figure
CP-45/55 Operation Process
1.2.1 Head Part
1.2.1.1 Flying Vision
* Check Points *
If foreign materials are adhered to the upper surface of a mirror, the shape
acknowledgement of vision can not be achieved properly. Thus, check that there are dust
particles or foreign materials on the upper surface of a mirror on occasion.
Clean out lens with Cleaning Kit supplied with the
system.
Caution
* Actions to be taken *
@Stop the operating system and move the Head Ass'y forward as possible.
@Rise the Mirror up.
@Turn off the power of a system. Turn off the power, if required, and pull the X-Frame to move forward.
@Blow off dust particles on lens with an air blast included in the Cleaning Kit supplied by this company.
@Clean out the dust particles adhered to the clearance of approx. 1cm between the Light Ass'y Bracket and Lens
viewed from the lower with cotton buds. If necessary, clean out the Lens with cotton buds with a small quantity of
alcohol.
@If cleaned out by use of alcohol, carefully clean out the surface of lens with a clean cotton bud one more time
finally.
Fig 1-1.Flying vision
Operating Manual Reference Figure
CP-45/55 Operation Process
A
B

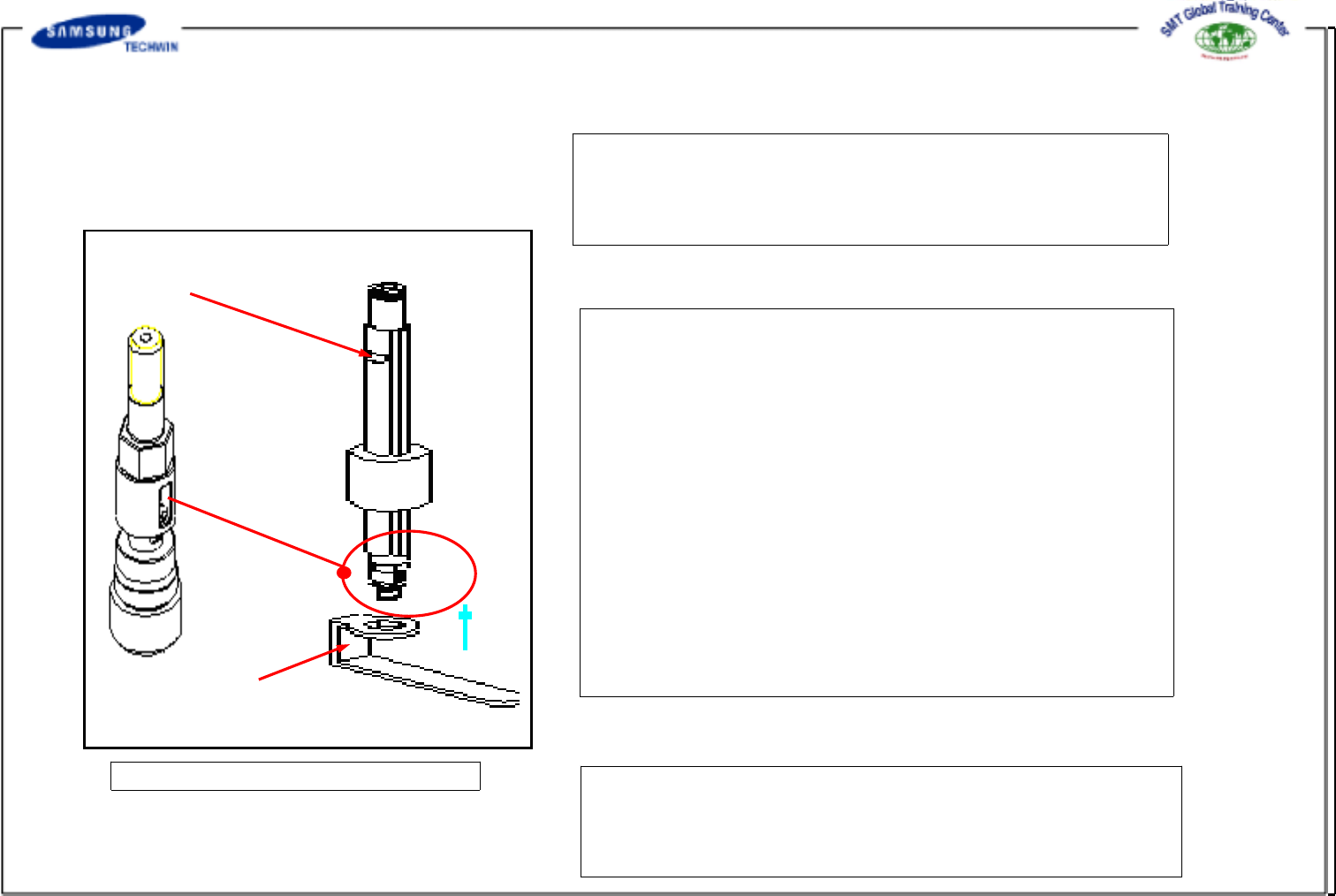

1.2.1.2 Compliance Assembly
* Check Points *
Compliance can be bent caused by improper operation during the
part mounting. Thus, be sure to check the spring
force and bending condition of the compliance occasionally.
*When disassembling the Compliance Assembly from
the Head
(1) Hold the spline upper slot(A) of Head with a
spanner.
(2) Insert the fixture(B) for assembling the compliance
into the compliance assembly to the arrow direction.
(3) Loosen the fixture for assembling the compliance
until the compliance assembly can be loosened
by hands.
(4) Loosen and remove the compliance assembly by hands.
*When assembling the Compliance Assembly to the Head
Tighten the compliance assembly in reverse order for
disassembly. Fix the compliance assembly by installing the
fixture(B) for assembling the Compliance.
*Actions to be taken*
Disconnect the damaged compliance from the spindle
with a 8mm wrench, and then install the new compliance
in reverse order for disassembly.
FIG. 1-2 Compliance Assembly
Operating Manual Reference Figure
CP-45/55 Operation Process
Caution
Failing to disconnect the air pressure when replacing
the coil tube may have an effect on the improper
function of a head. Be sure to replace the coil tube
after disconnecting the air pressure.
1.2.1.3 Coil Tube
*Check Points*
Check the coil tube for flexibility on
occasion since the clamping error can be
occurred when replacing the
nozzle caused by the poor flexibility in
operating the system for a long time. Also
care is to be taken for ensuring that the
coil tube can not be damaged. The coil
tubecanbebrokenbythat.
*Actions to be taken*
If the Silicon Tube is damaged, replace it
with new part.
