Operating Manual Reference Figure

CP-45/55 Operation Process

<Rectangular

Part>

<Part Outline

Acknowledge>

<Part Center

Searching>

Lead Width

<Lead Edge Test>

<Part Center

Searching>

<Lead Width>

<Lead Foot Edge

Acknowledge>

<Part Center

Searching>

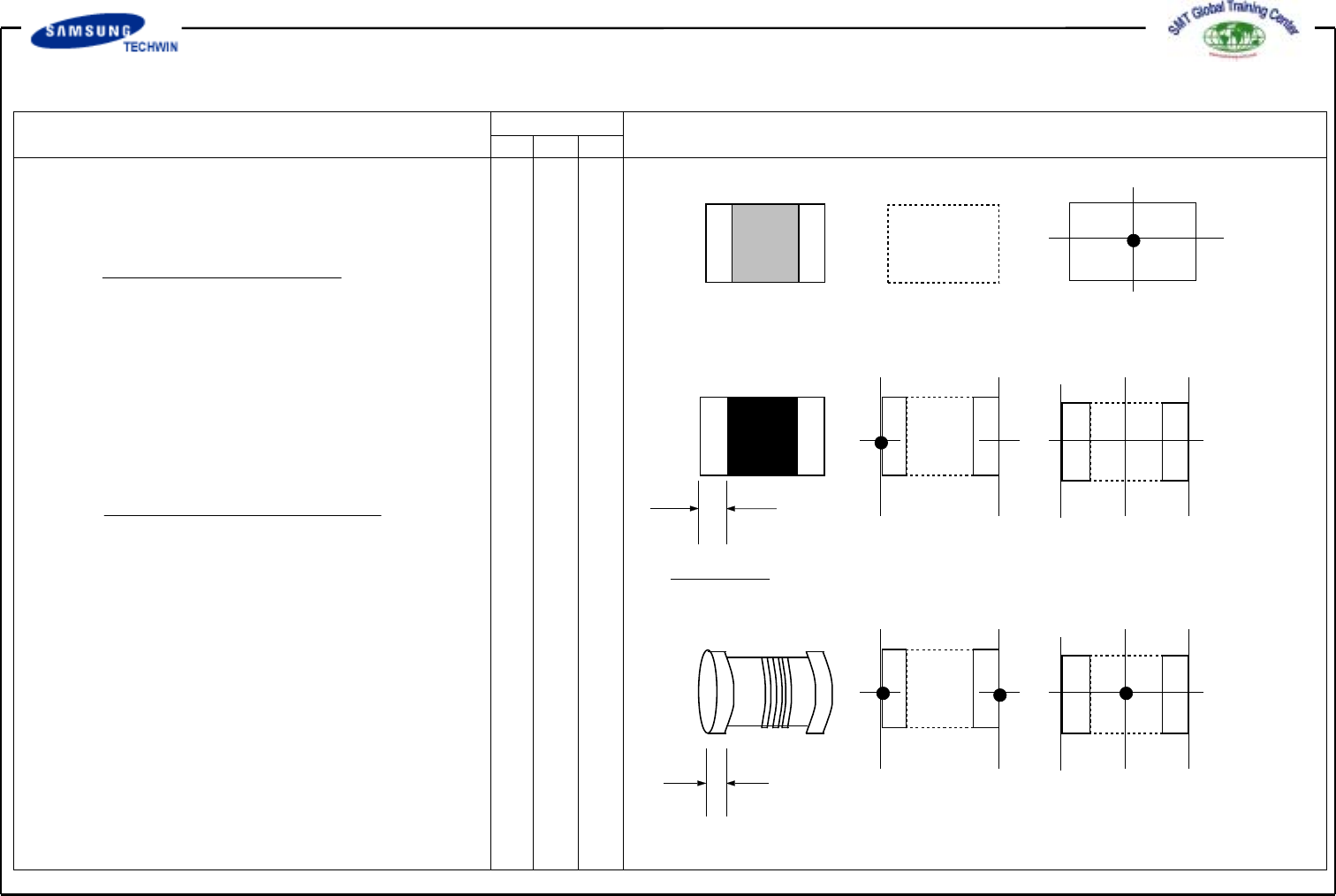

1) CHIP-Rec' Algorithm

*ChipResistor

< Part Outline Acknowledge >

Measure tangent line of all

directions and calculate the center.

(Used for part of white system)

Acknowledge distance and degree

of tangent line by finding out the

line from the top and the bottom.

* CHIP-Capacitor / MELF

< Lead Foot Edge Acknowledge >

Measure the Size of tangent

lines of the left and the right,

calculate the center, search that

as much as Lead W value and

find out distance and degree of the

tangent lines.

Lead Foot acknowledge type does

not test the part Body.
