Operating Manual MODEL Reference Figure CP-45/55 Operation Process V <Test> Button This inspects t he Mark by using the set Mark Data. If you use t his, y ou can check whether the set Mark Data is correct or not. I…

Operating Manual

MODEL

Reference Figure

CP-45/55 Operation Process

<Tuning> Button

This calculates the size of actual

Mark by using the set Mark Data.

After searching for the size of actual

Mark, Message Box as follows will

be shown. Click <Yes> button to

update with data searched, if not

so, click <No> button.

Carry out the process 1 time or

more for inputting the correct size.

Operating Manual

MODEL

Reference Figure

CP-45/55 Operation Process

<Test> Button

This inspects the Mark by using

the set Mark Data.

If you use this, you can check

whether the set Mark Data is

correct or not.

If an inspection is completed

successfully, a Message Box as

shown in the right will be shown.

Operating Manual

MODEL

Reference Figure

CP-45/55 Operation Process

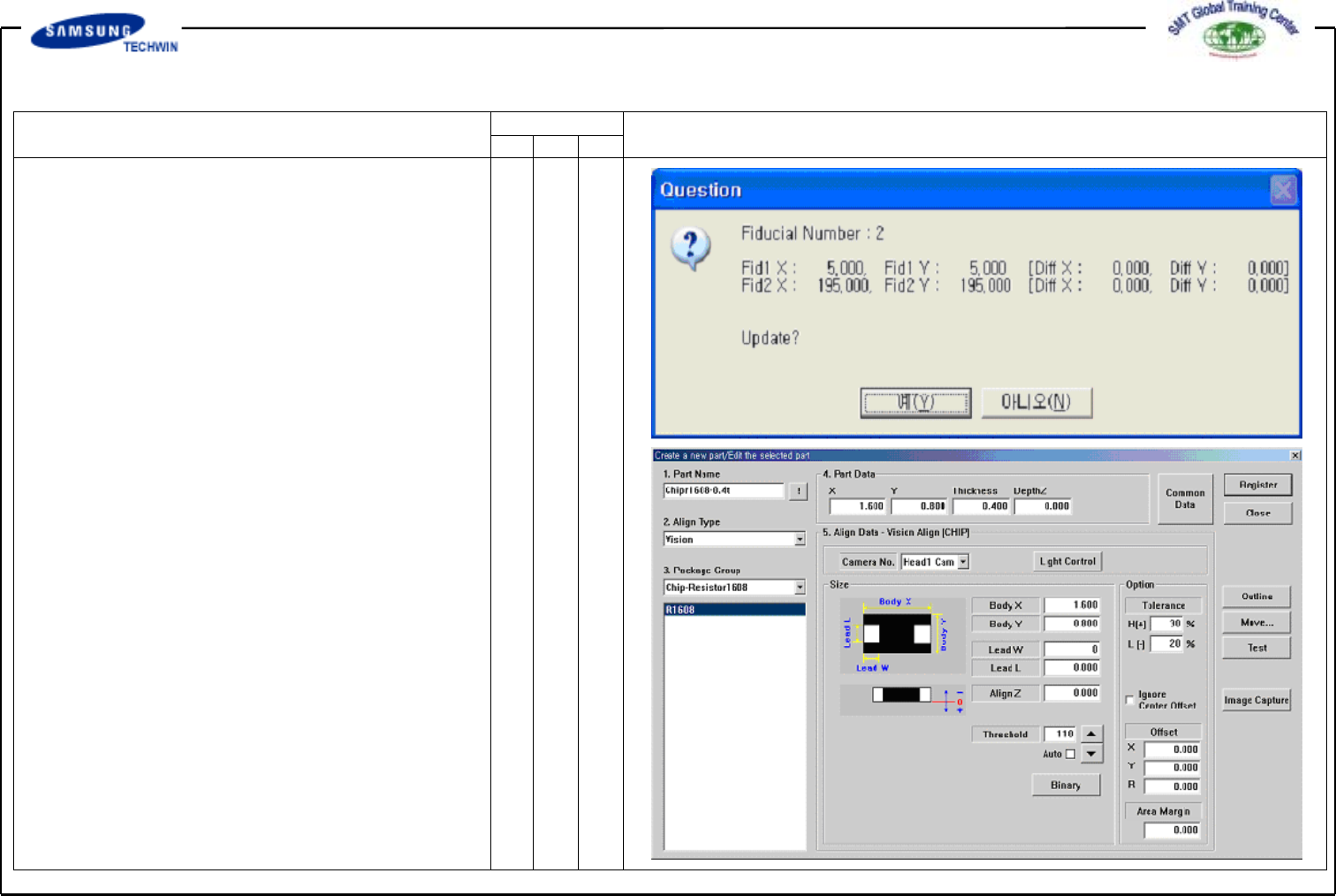

<Scan> Button

This executes the Scan Test for the

the set Fiducial Mark. By this Scan

Test, the actual Mark is tested with

the set Fiducial Mark Position and

the Mark Data and also the tested

results are shown as follows. The

position of Fiducial Mark shown in

the right Figure refers to the position

of Mark resulted from Scan Test.

Click "Yes" button to reflect this

value, if not so, click "No" button.

This is to compensate correctly the

Mark position inputted by using the

registered Mark Data. Apply the

process 2 times or more.

2.2)

Part (Work Pard Register)

2.2-1)

New Part Register

Chip (Resistor 1608,0.4t, 8mm,

TN05, TN08) Register

Click <New Part…>buttononthe

left of the bottom of a screen.
