CP-45/55 Operation Process
Operating Manual
MODEL
Reference Figure
CP-45/55 Operation Process
a
b
c
d
*

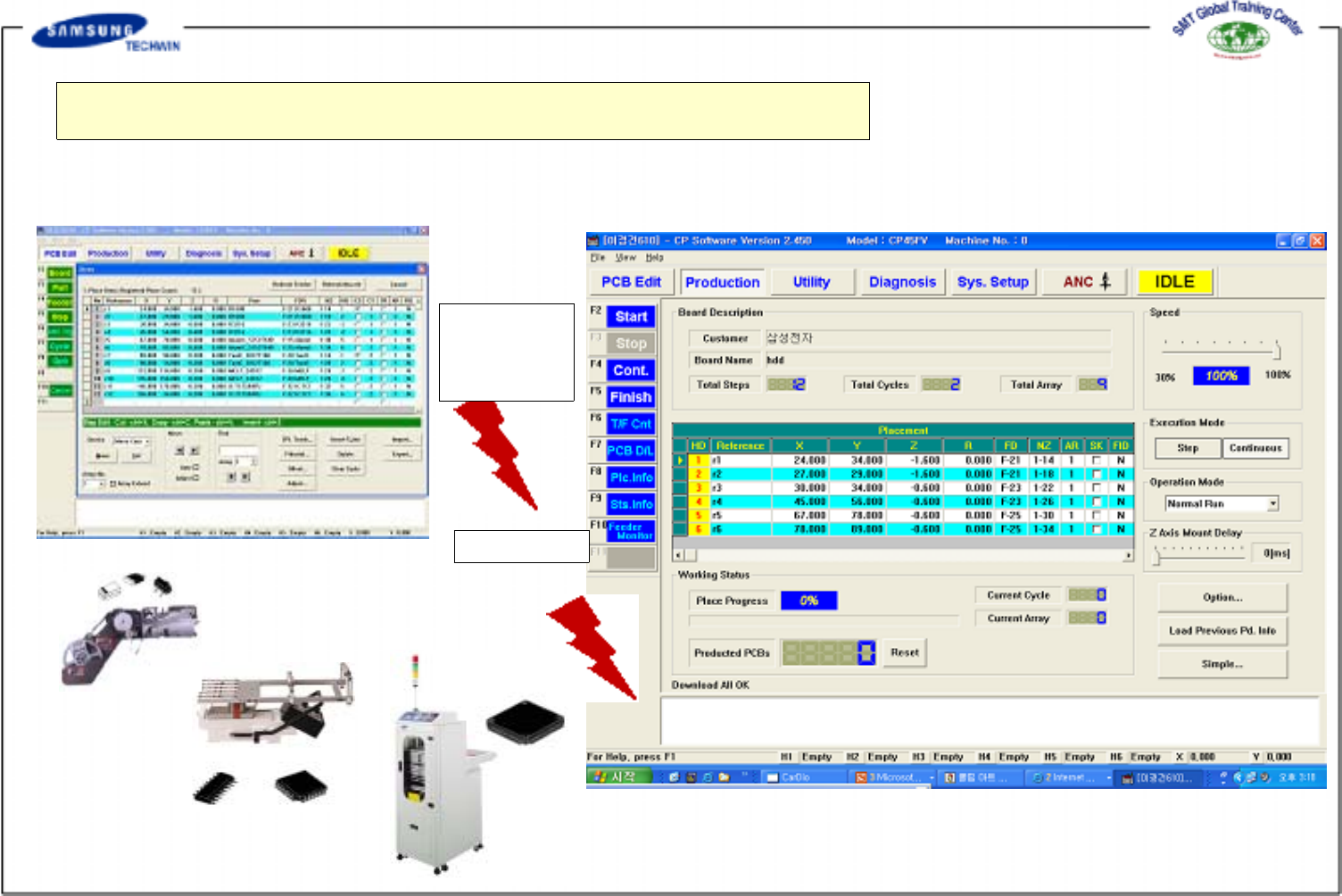

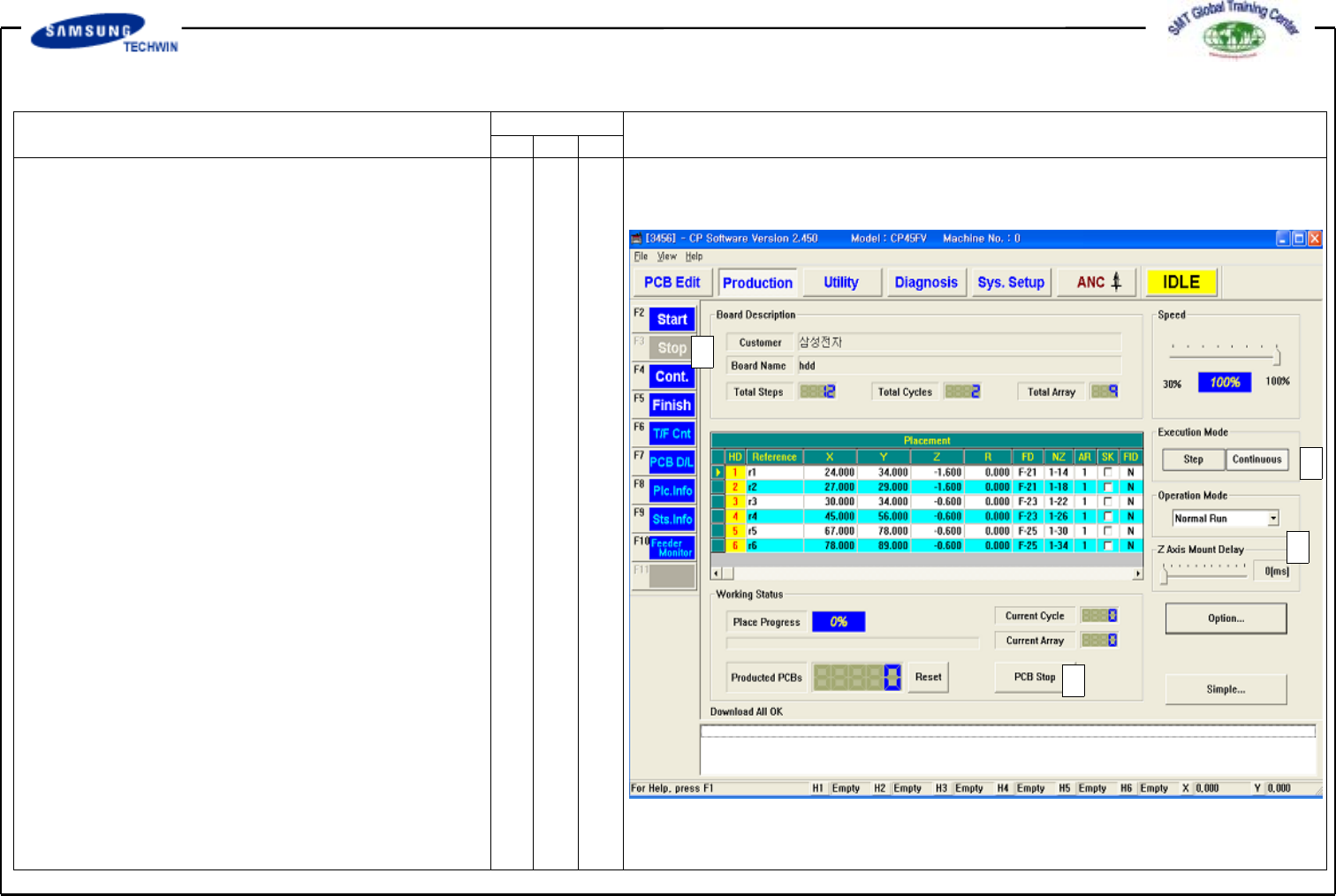

Production Menu
^a
-> cycle stop
Cycle Production
^b
->
Stop After 1-sheet
Production
^c
->
UP Delay Time After
Place
^d
->DRY
No Pickup Feeding Vision
Operating Manual
MODEL
Reference Figure
CP-45/55 Operation Process
*

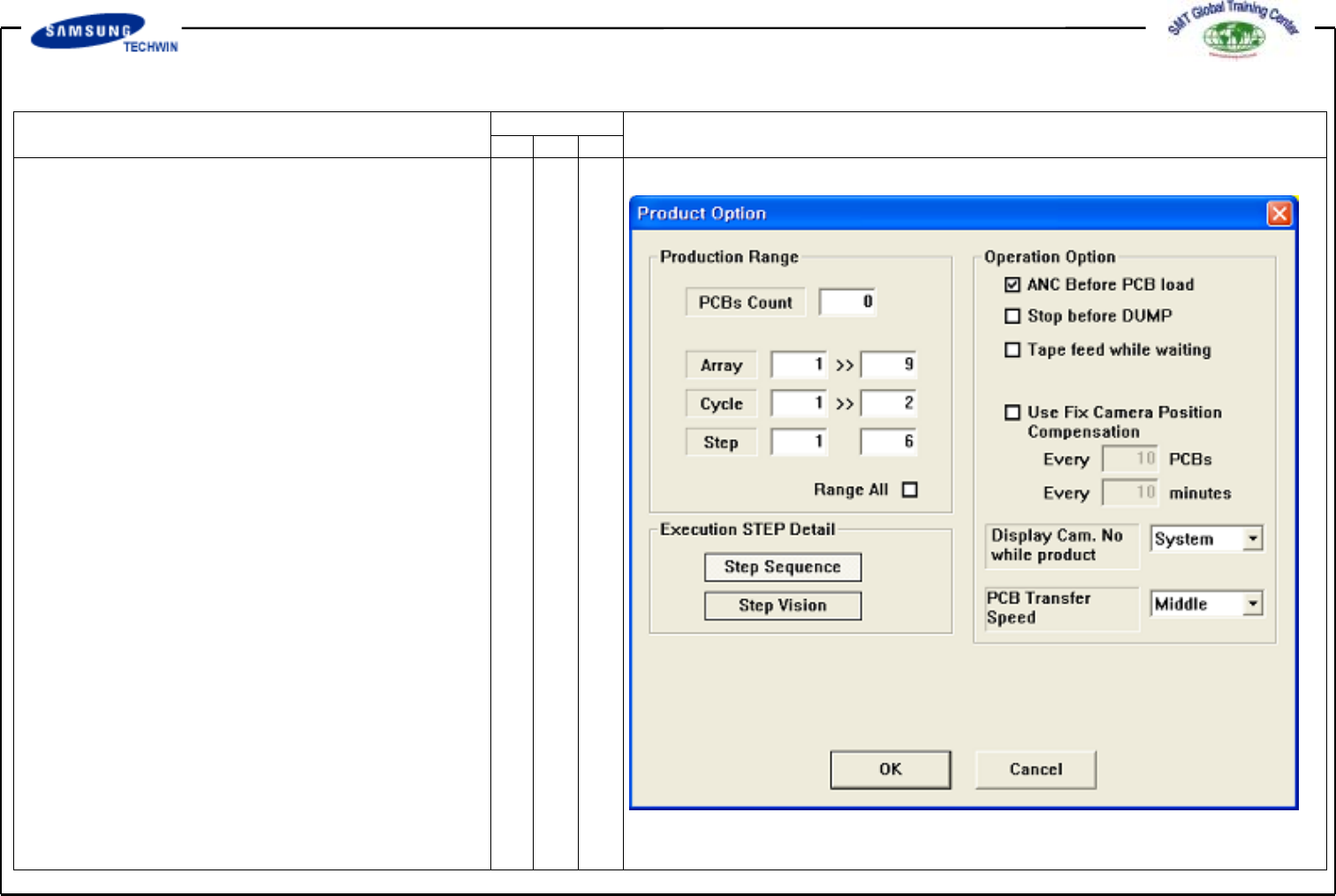

OPTION
^ Production Range
1) CB Production Plan Quantity
2) Production Range Option
^
Operation Option
1) ANC replacement can be
executed during PCB transfer.
2) Stop when Dumping.
3) Prior feeding of Feeder of
1Cycle.
4) Camera position checked as an
interval of Data inputted when
using Fix Camera.
5) Camera Option to display on
Vision Monitor in production.
6) PCB Transfer Speed Option
