Operating Manual Reference Figure
CP-45/55 Operation Process
a
b
c
d
e
f
g
h

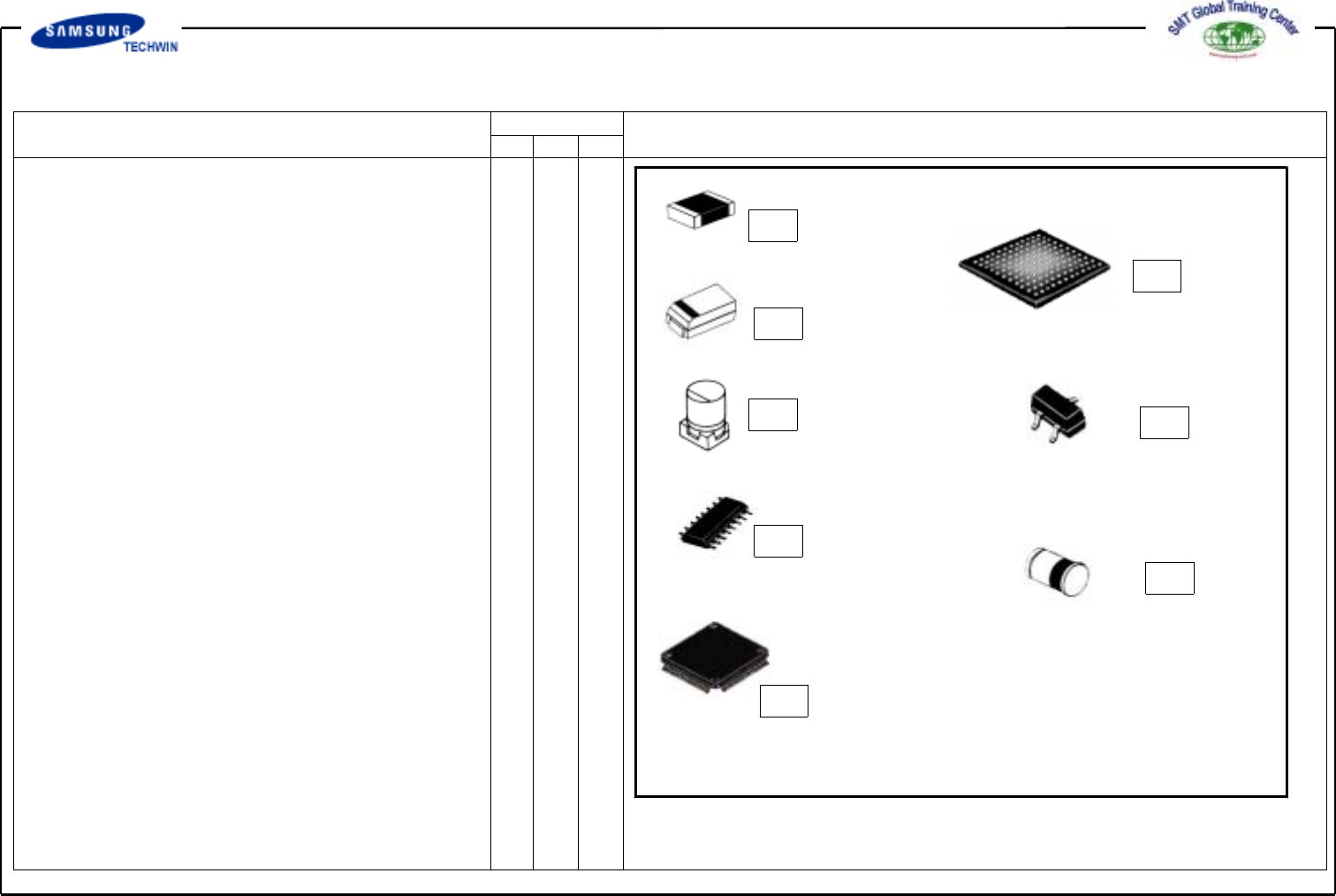

*TYPE
a,CHIP
b. TANTAL
c. A/C(Aluminum Capacitor)
d. SOP/SOJ
(Small Outline Package / J-Lead)
e .QFP/PLCC
(Quad Flat Pack
Plastic Leaded Chip Carrier)
f. BGA (Ball Grid Array)
g. TR (Transistor)
h. MRLF
Operating Manual Reference Figure
CP-45/55 Operation Process
X
Y
T
X
Y
TT
Chip-1608r
Chip-1005r
Chip-1608c
Chip-1005c
TR
SOP
QFP
Chipr1608-100k
Chipr1608-1k
Chipr1608-10k
.
.
.
.
.
.
.
Chipr1608-100
part name(Size,Align,NZ,Feeder)
Type(Package Group)
Operating Manual Reference Figure
CP-45/55 Operation Process
* 1. FOV (Fleld Of View)
1-1 STANDARD FOV (Field Of View) 1-2 OPTION FOV (Field Of View)
CAMERA
STANDARD
MOVE FLY FIXED
FOV 12 12mm 25 25mm 35 35mm
COMPONENT
SIZE
None
MAX. 22 22mm
(0.65)mm
MAX. 32 32mm
(0.40)mm
BASIC PIXEL 25[um/pixel] 50[um/pixel] 70[um/pixel]
CAMERA
OPTION
FLY FIXED-1 FIXED-2
FOV 15 15mm 20 20mm 45 45mm
COMPONENT
SIZE
MAX. 12
12mm
(0.65)mm
MAX. 17 17mm
(0.30)mm
MAX.42 42mm
(0.50)mm
BASIC PIXEL 30[um/pixel] 40[um/pixel] 90[um/pixel]
pixel
512a
512a
