1.2 Repair, Inspection and Maintenance of Individual Part Warning Failing to t urn off the power switch may cause serious injury to personnel. Be sure to turn off the power switch when maintaining individual part. Moving…

Operating Manual Reference Figure

CP-45/55 Operation Process

@Also, if taking the grease out of the

center of a container, the bleeding

phenomenon may be increased

caused that the gravity is centered to

the center. Thus, reserve the grease

container with the center ascended.

@If a cover of the grease container is

damaged, moisture can be penetrated

into the container or the grease can

be oxidized by contact with an air.

Care is to be taken for preventing

from that.

Reference

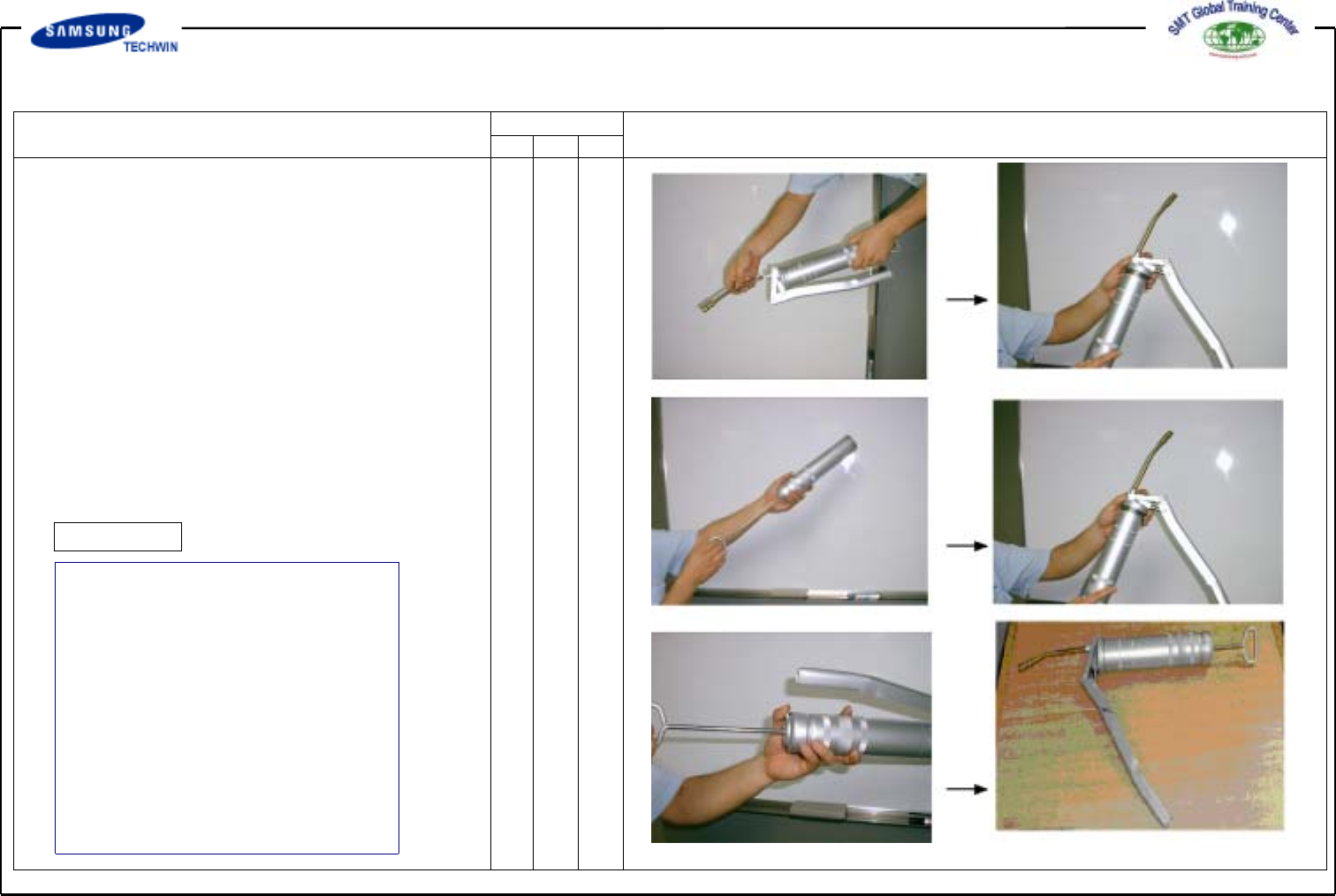

# Using Method of Grease Gun

1.Couple the grease hole with a

body.

2.Disconnect a cylinder from a

handle.

3.Pull off the cylinder fill the

grease.

4.Couple the handle again.

5.Press a button by thumb and

push the cylinder to remove

an internal air.

1.2 Repair, Inspection and Maintenance of Individual Part

Warning

Failing to turn off the power switch may cause serious injury to personnel. Be

sure to turn off the power switch when maintaining individual part. Moving the

gantry by pushing the head manually may cause severe damage to the system or

injury to personnel resulted from mis-operation of the system. Do not operate the

gantry manually.

Operating Manual Reference Figure

CP-45/55 Operation Process

1.2.1 Head Part

1.2.1.1 Flying Vision

* Check Points *

If foreign materials are adhered to the upper surface of a mirror, the shape

acknowledgement of vision can not be achieved properly. Thus, check that there are dust

particles or foreign materials on the upper surface of a mirror on occasion.

Clean out lens with Cleaning Kit supplied with the

system.

Caution

* Actions to be taken *

@Stop the operating system and move the Head Ass'y forward as possible.

@Rise the Mirror up.

@Turn off the power of a system. Turn off the power, if required, and pull the X-Frame to move forward.

@Blow off dust particles on lens with an air blast included in the Cleaning Kit supplied by this company.

@Clean out the dust particles adhered to the clearance of approx. 1cm between the Light Ass'y Bracket and Lens

viewed from the lower with cotton buds. If necessary, clean out the Lens with cotton buds with a small quantity of

alcohol.

@If cleaned out by use of alcohol, carefully clean out the surface of lens with a clean cotton bud one more time

finally.

Fig 1-1.Flying vision
