Operating Manual Reference Figure
CP-45/55 Operation Process
1.2.3 Conveyor System
1.2.3.1 PCB Conveyor Belt
*Check Points*
@Check the belt for a proper tension.
@Check the belt for improper wear.
@Check the drive motor pulley for
improper wear.
@Check the support idler for improper
wear.
@Check that the belt is moved to
the side or slid and missed during
operation.
*Actions to be taken*
@If a tension of the belt is loosened,
adjust the tension by use of the
support idler.
@When some problems occur to
PCB conveyance caused that a
tension of the belt is loosened,
Contact our designated C/S
company to replace the part.
Support Idler
Fig. 1-11. PCB Conveyor Belt
Operating Manual Reference Figure
CP-45/55 Operation Process
1.2.3.2 Width Adjusting Lead Screw
*Check Points*
@Check the screw for dust particles,
or stains, etc.
@If the screw is dried too much and
the lubrication condition is improper,
the width adjustment can not be
carried out properly. Thus, check
lubrication condition.
*Actions to be taken*
@Clean out the dust particles, foreign
materials, etc., and if required,
apply the grease to the screw.

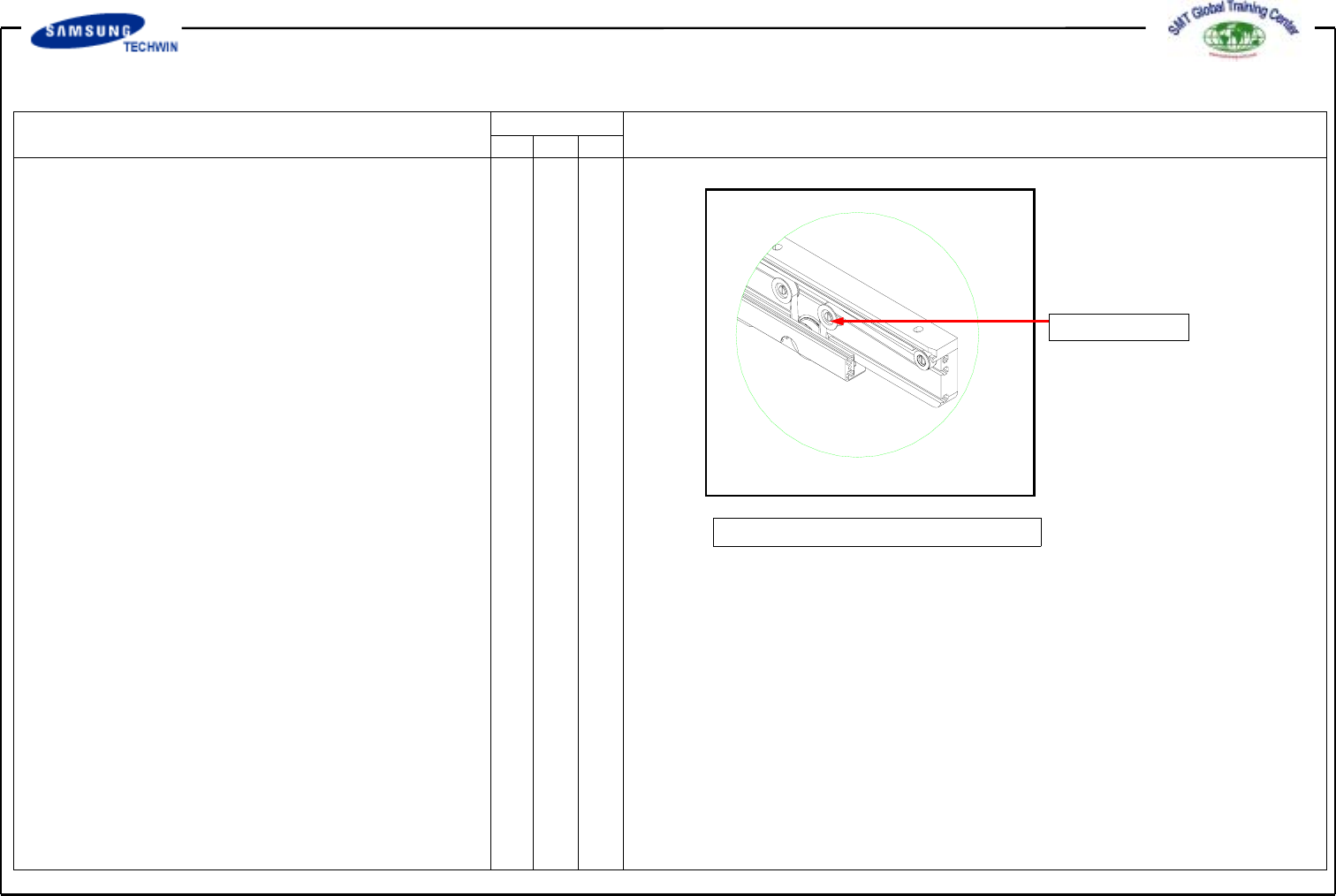

1.2.3.3 Width Adjusting L/M Guide Rail
*Check Points*
@Check the rail surface for debris,
dust particles, stains, etc.
@If the rail is dried too much and
the lubrication condition is improper,
the width adjustment can not be
carried out properly. Thus, check
lubrication condition.
*Actions to be taken*
@Clean out dust particles, foreign
materials, etc., and if required,
apply the grease to the rail surface.
@Lubricate the grease through the
Grease Nipple.
Belt &
Pulley
Lead
Screw
Srevo Motor
L/M Guide
Rail

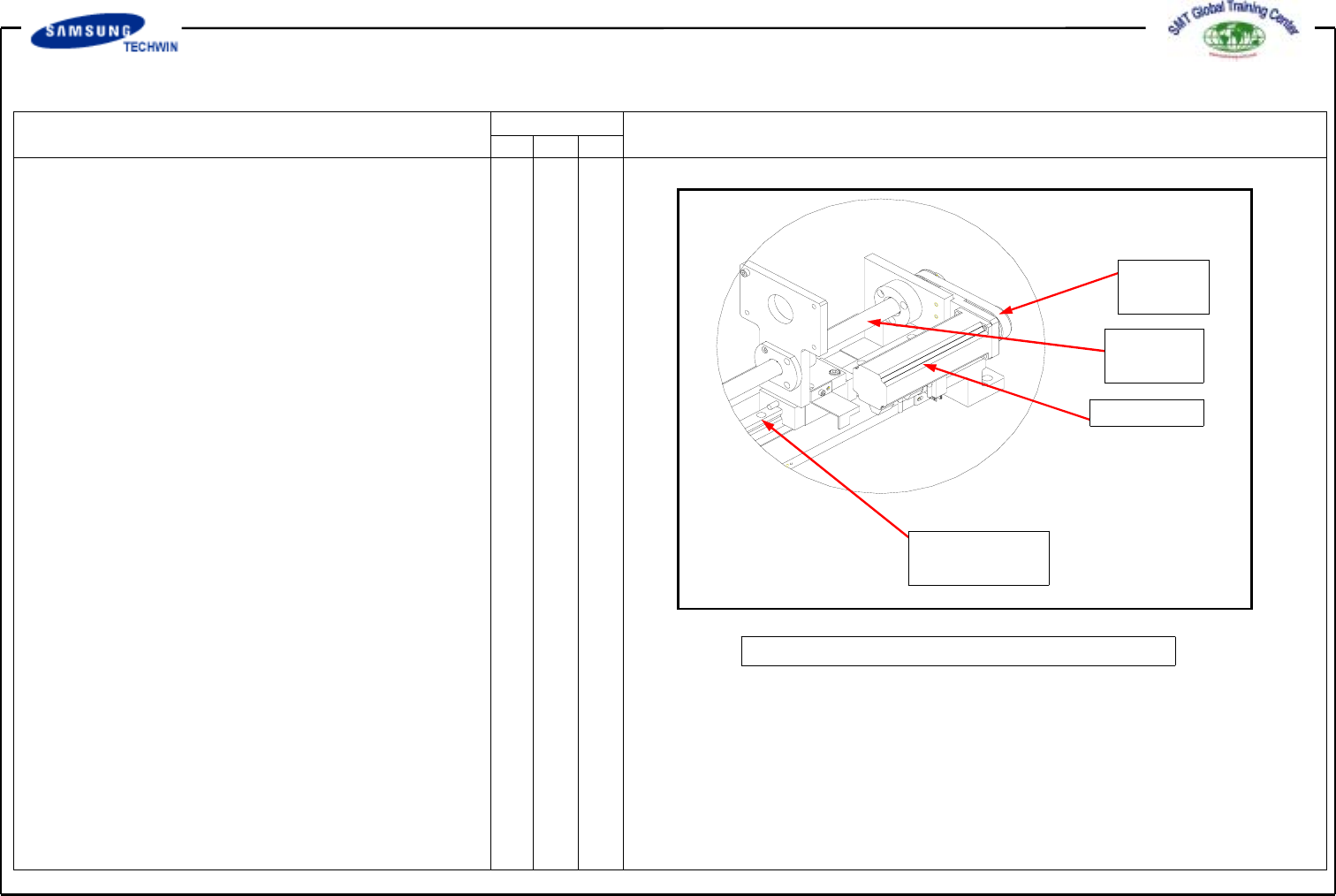

Fig. 1-12. Width Adjusting Lead Screw
Operating Manual Reference Figure
CP-45/55 Operation Process
1.2.3.4 Auto Width Adjusting Belt & Pulley
*Check Points*
@Check the belt for a proper tension.
@Check the belt for improper wear.
@Check the pulley for improper wear.
*Actions to be taken*
@If adjusting the belt tension with the
tension adjusting screw, excessive
fatigue may occur to the motor. If
the tension adjustment is required,
contact our C/S center for A/S.
