Operating Manual MODEL Reference Figure CP-45/55 Operation Process ^ Enter the Common Data by pressing the <Common Data> button. ^ Select 8mm Tape on <Feeder> Combo Box. ^ Select TN08 and TN08 on <Nozzle 1…
Operating Manual
MODEL
Reference Figure
CP-45/55 Operation Process
V
TR Register

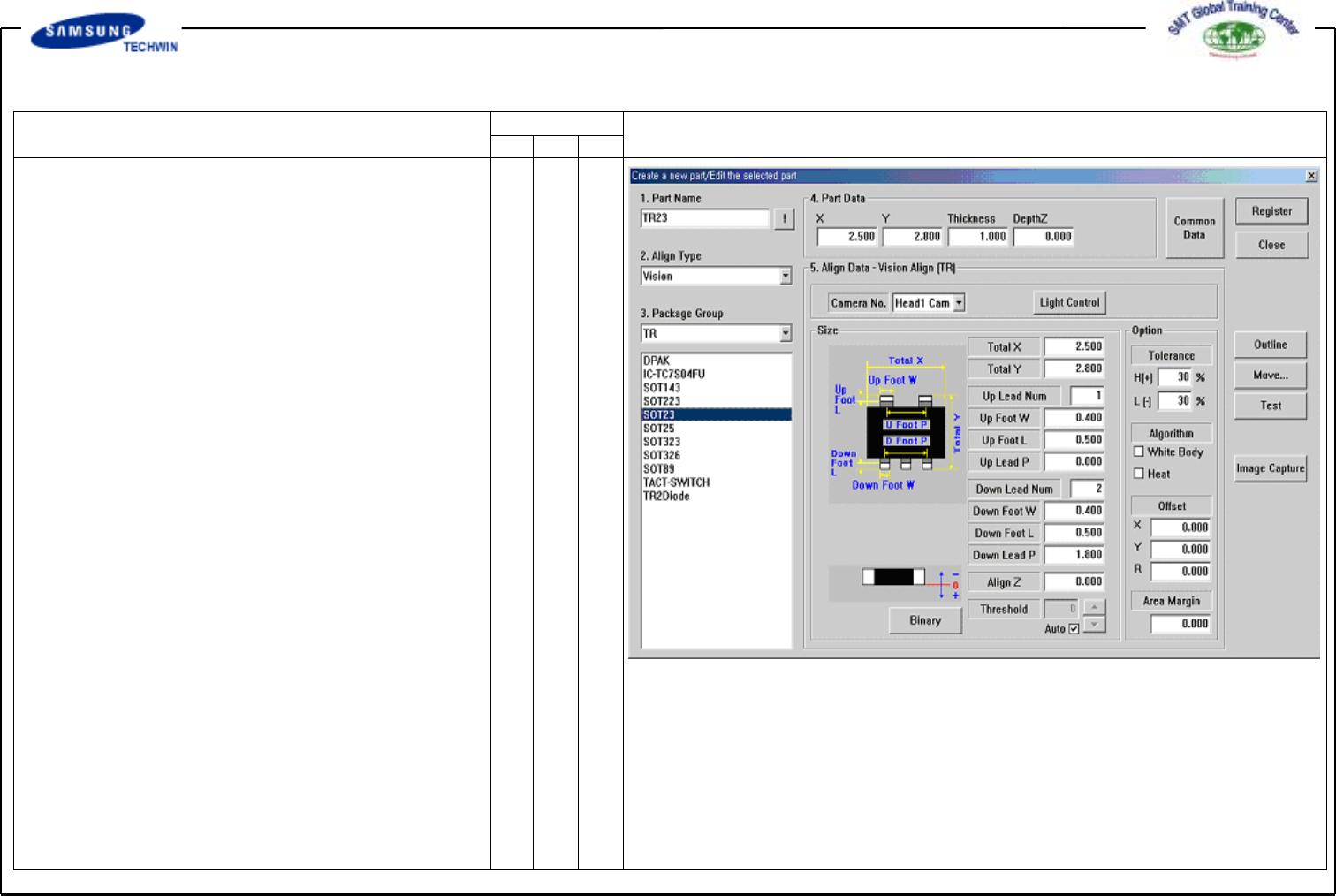

Click the <New Part…> button
on the left of the bottom of a
screen.
^ Create the Part Name. (TR23)
^ Select the Group to TR.
^ Enter the Part Size.
Align Data Total X: 2.5, Y: 2.8
Up Group Input:
Up Lead Number 1
Foot W: 0.5
Foot L: 0.5
Foot P: 0.0
Down Group Input:
Down Lead Number 2
Foot W: 0.5
Foot L: 0.5
Foot P: 1.8
Enter the thickness of Part Data.
Operating Manual
MODEL
Reference Figure
CP-45/55 Operation Process
^

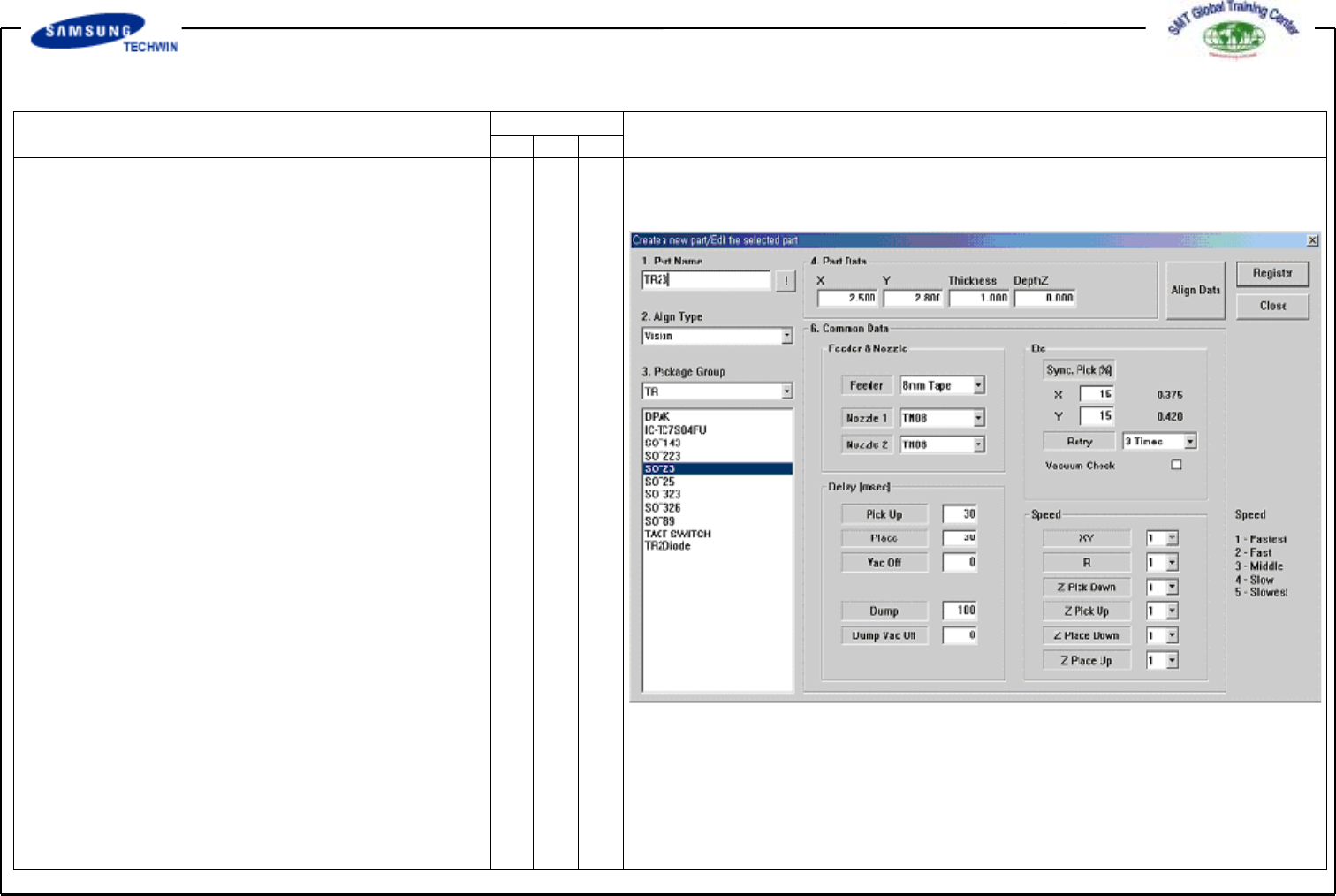

Enter the Common Data by
pressing the <Common Data>
button.
^ Select 8mm Tape on <Feeder>
Combo Box.
^ Select TN08 and TN08 on
<Nozzle 1> and <Nozzle 2>
Combo Box separately.
Register the part by clicking the
<Register> button.
Operating Manual
MODEL
Reference Figure
CP-45/55 Operation Process
V
A/C (Aluminum Capacitor)
Click the <New Part…> button
on the left of the bottom of a
screen.
Create the Part Name.
(AlumC 5753T540)
Select the Group to Aluminum
Capacitor.
Enter the Part Size.
Align Data - X: 5.7, Y: 5.3
Lead W: 2.0 Lead L: 0.8
Enter the thickness of the Part
Data.
