Operating Manual Reference Figure CP-45/55 Operation Process Step4 : Releasing the Ratchet Pawl Locked Secure the driver of r atchet pawl with "screwdriver"(at the left side of feeder) and release the locked ra…

Operating Manual Reference Figure

CP-45/55 Operation Process

Step2 : Inspection Jig Origin Point Setting 2

If a position was shown on the monitor, align the vertical line and the horizontal line which was shown on

the monitor 1 by adjusting the H1 and V1 switches of the line indicator as shown in a figure above. Align

the lines on the reference position shown on the monitor 2 by adjusting H2 and V2 switches, and then lock

all switches by using the locker.

(Align the horizontal line on 2mm pocket reference line for inspecting the 1005 tape pocket, and align it on

4mm pocket reference line for inspecting higher tape pockets more than 1608.

Step3 : Tape Guide Setting

If inspecting the gear on Monitor 1 whose feeder was fixed to inspection jig and set, you can see that the

reference line of the tape guide cover was changed upward or downward as shown in

the following figures.

Then, bend the ends of the tape guide cover to offset direction as shown in the following figures.

* Care is to be taken for ensuring that the center of the tape guide cover can not be bent during bending

process as shown in the following figures.

Operating Manual Reference Figure

CP-45/55 Operation Process

Step4 : Releasing the Ratchet Pawl Locked

Secure the driver of ratchet pawl with "screwdriver"(at the left side of feeder) and release the locked

ratchet pawl by turning the box wrench(at the right side of feeder).

With the box wrench of the right ratchet pawl secured, separate slightly the ratchet pawl from the gear with "slotted

screwdriver" of the left ratchet pawl.

Left Ratchet Pawl

("Screwdriver" Driver

Using)

Right Ratchet Pawl

(Box Wrench Using)

Operating Manual Reference Figure

CP-45/55 Operation Process

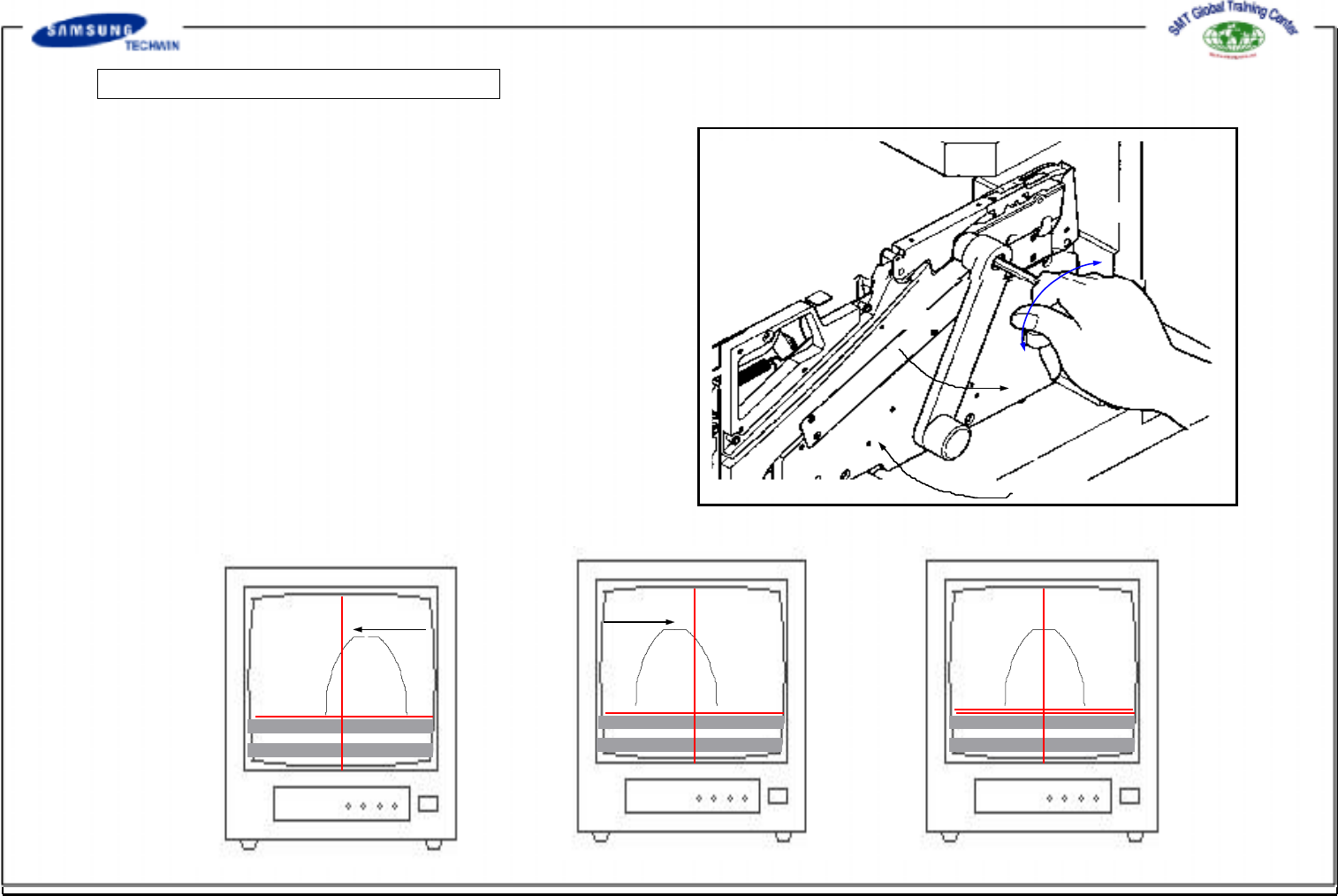

Step5 : Ratchet Pawl Adjustment

If the ratchet pawl is offset to left or right direction

from the center reference line of the gear on the gear

monitor of the feeder fixed as shown in the following

figures, release the lock of the push pawl to arrow

direction of (1) as shown in the right figure, and

secure the wrench of (2) by the other hand so that the

push pawl of (2) can not be moved. Align the center

of the gear on the gear center reference line of the

line indicator by turning the push pawl adjusting

wrench of (2) as shown in the following figures. At this

time, tighten the push pawl locker by turning it to (3)

direction lightly since the ratchet pawl should be

adjusted again. At this time secure the wrench by the

other hand so that the push pawl of (2) can not be

moved.

(1)

(2)

(3)
