Operating Manual MODEL Reference Figure CP-45/55 Operation Process 2.3-2) Tray Feeder Tray Feeder Setup <Select> Area: Max. 4 places allowable. N a m e/T y p e :R e g i s t e rw i t h FW-20S / FW-20S(393219). Origi…
Operating Manual
MODEL
Reference Figure
CP-45/55 Operation Process
2.3)
Feeder (Feeder Register)
V
Tape Feeder:
Register by Optimizer.
V
Stick Feeder: Multi Stick (SOP)
V
Tray Feeder: FW-20S
(QFP, BGA)
2.3-1)
Stick Feeder
Select the Stick Unit menu in
Feeders Dialogue Box.
V
Select the type.
(Multi Stick)
V
Select the part. (SOP14Pin)
V
Pickup Position
Definition(Device):
X, Y (Move), Z (Head)
V
Feeder Base Definition
: Change Button Click / Base, Slot
Definition
V
Refer to 1.2 Feeder in Operations
Manual for more information.
Operating Manual
MODEL
Reference Figure
CP-45/55 Operation Process
2.3-2)
Tray Feeder

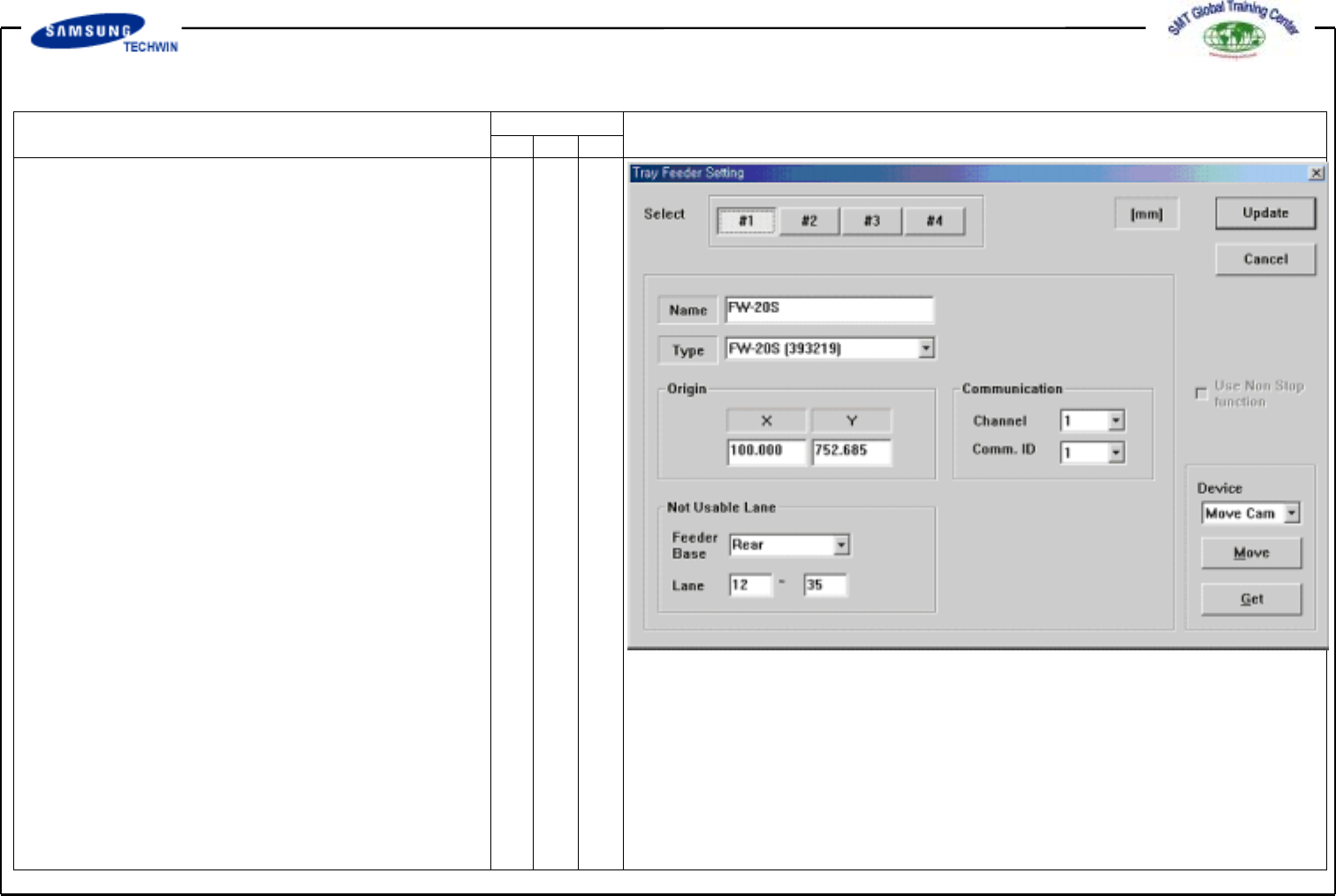

Tray Feeder Setup
<Select> Area: Max. 4 places
allowable.
Name/Type:Registerwith
FW-20S / FW-20S(393219).
Origin: Defines the reference
point within Tray.
Communication: Selects
Communication Channel.
(Apply the selection identical to
actual connections.)
Not Usable Lane: Selects the
area occupied to Feeder Base.
(Rear / 12~35)
Update: Completes the Setup and
applies the selection.
Refer to 1.2 Feeder in Operations
Manual for more information.
Operating Manual
MODEL
Reference Figure
CP-45/55 Operation Process
V
Tray Feeder Register
Part: QFP100Pin / BGA256 Select
Pallet Out: Selects Pallet Out
after selection of relevant
part.
Pocket Position: Applies 2Point
Teaching in 3 positions of Pallet.
XN / YN: Input of X and Y
columns number
PickZ / DumpZ
(Device): Input of Pickup Height
/ Dump Height(Head)
Test Pickup
Refer to 1.2 Feeder in Operations
Manual for more information.
