Operating Manual Reference Figure
CP-45/55 Operation Process
1.2.3.4 Auto Width Adjusting Belt & Pulley
*Check Points*
@Check the belt for a proper tension.
@Check the belt for improper wear.
@Check the pulley for improper wear.
*Actions to be taken*
@If adjusting the belt tension with the
tension adjusting screw, excessive
fatigue may occur to the motor. If
the tension adjustment is required,
contact our C/S center for A/S.
Operating Manual Reference Figure
CP-45/55 Operation Process
1.2.3.5 Manual Width Adjusting Chain,
Belt&Pulley
*Check Points*
@Check that foreign materials are
adhered to the chain.
@If the chain is dried too much and
the lubrication condition is improper,
the width adjustment can not be
carried out properly.
*Actions to be taken*
@Clean out the foreign materials and
apply the grease if the dried
conditions are serious.
1.2.3.6 PCB Sensor
*Check Points*
@Check that the sensor window is
contaminated.
@Check that the sensitivity of a
sensor is proper.
@Check the sensor for proper
operation.
*Actions to be taken*
@Remove the contaminated part and
clean out the sensor window with
soft cloth.
@Adjust the sensitivity.
@If abnormal conditions occur,
contact our designated C/S
to taking the corrective action.
Chain
Belt
Sensor
Window

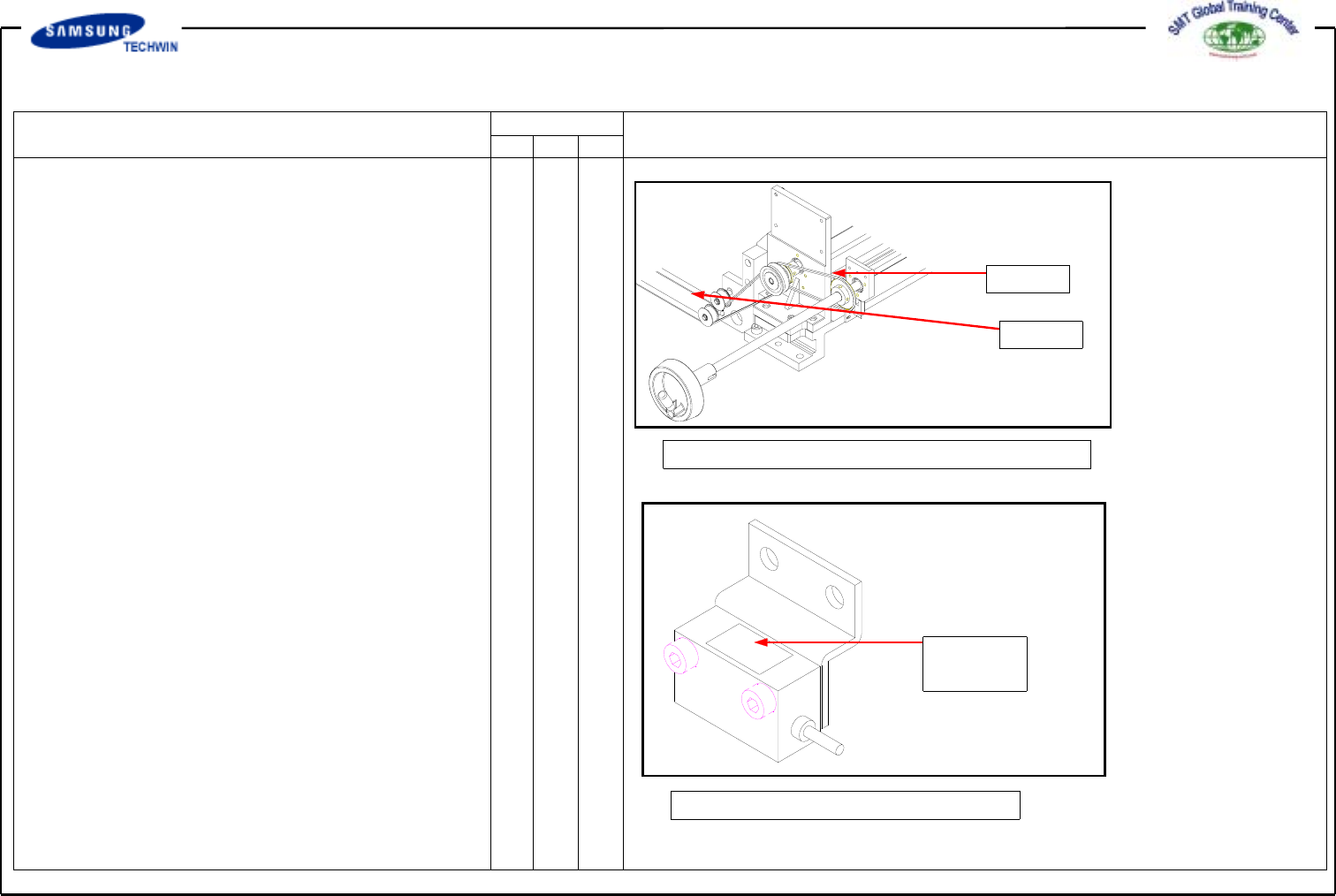

Fig. 113.Manual Width Adjusting Chain
Fig. 114. PCB Sensor
