Operating Manual MODEL Reference Figure CP-45/55 Operation Process Enter the Common Data by pressing the <Common Data> button. Select the Multi Stick on <Feeder> Combo Box. Select TN22 and TN22 on <Nozzle …
Operating Manual
MODEL
Reference Figure
CP-45/55 Operation Process
# Select the Camera to apply
actually and adjust the light.
Execute the Test again.
Operating Manual
MODEL
Reference Figure
CP-45/55 Operation Process

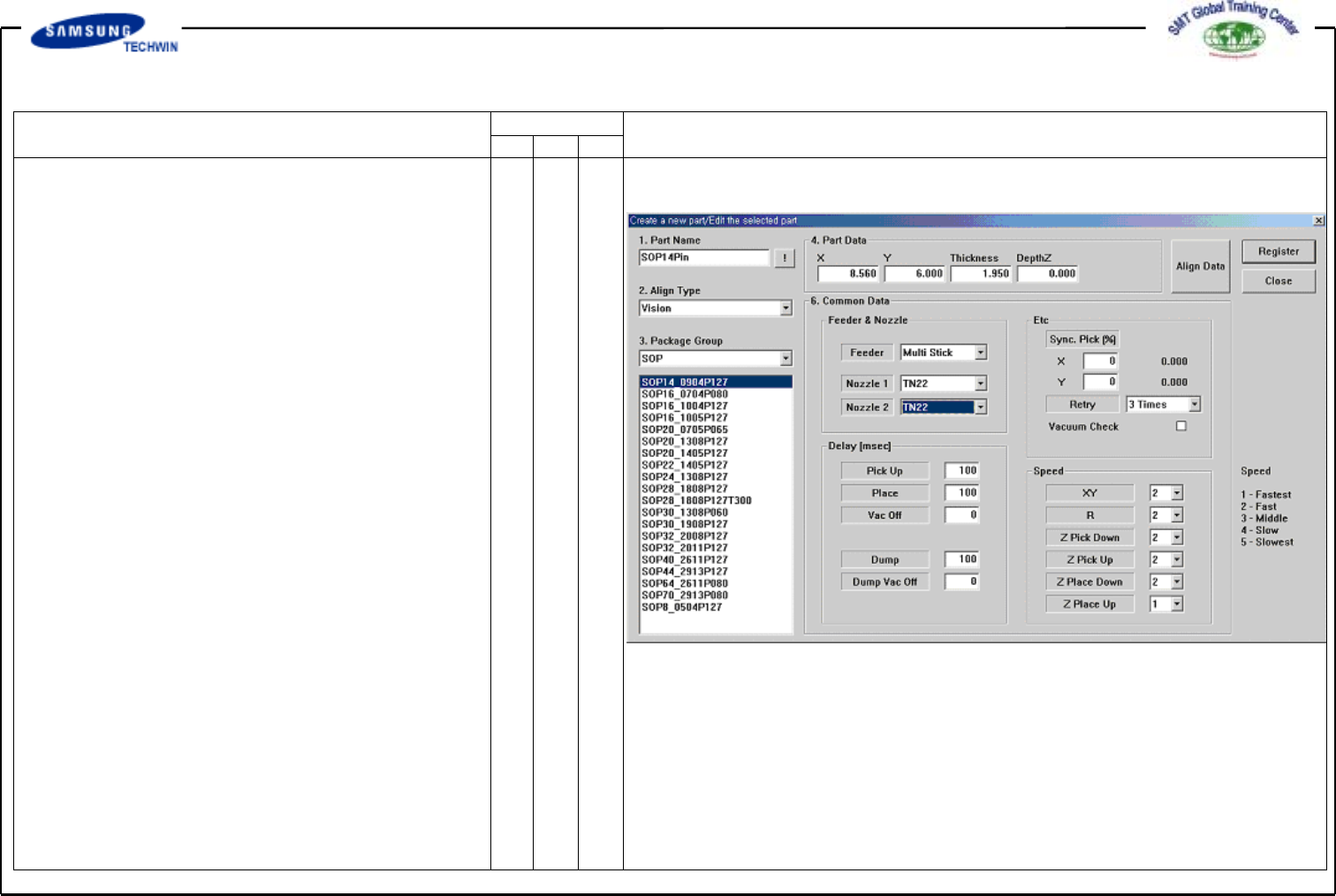

Enter the Common Data by
pressing the <Common Data>
button.
Select the Multi Stick on
<Feeder> Combo Box.
Select TN22 and TN22 on
<Nozzle 1> and <Nozzle 2>
Combo Box separately.
Register the part by clicking
the <Register> button.
Operating Manual
MODEL
Reference Figure
CP-45/55 Operation Process
V

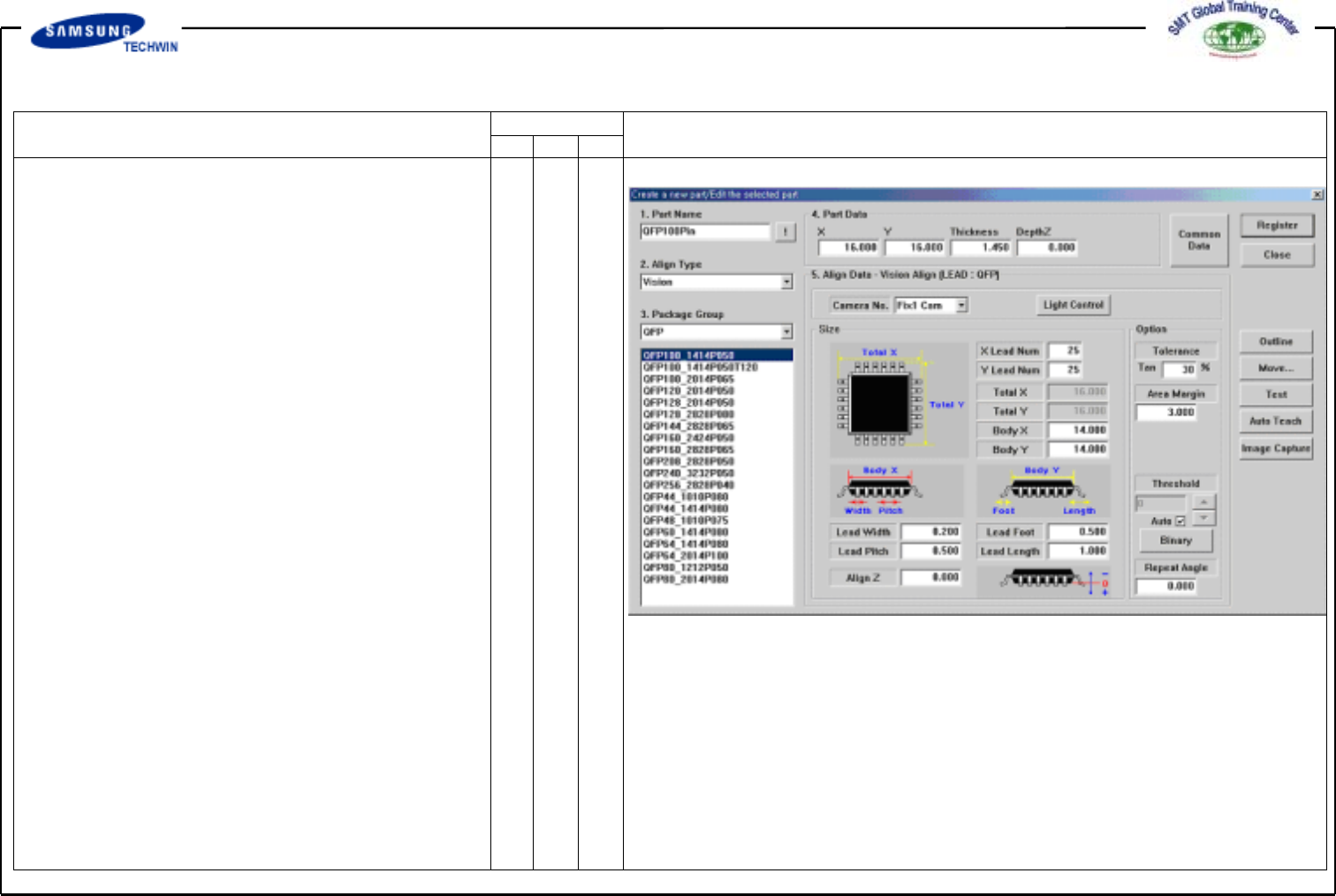

QFP (PLCC) 100Pin Register
Click the <New Part…> button
on the left of the bottom of a
screen.
Create the Part Name.
(QFP100Pin)
Select the Group to QFP.

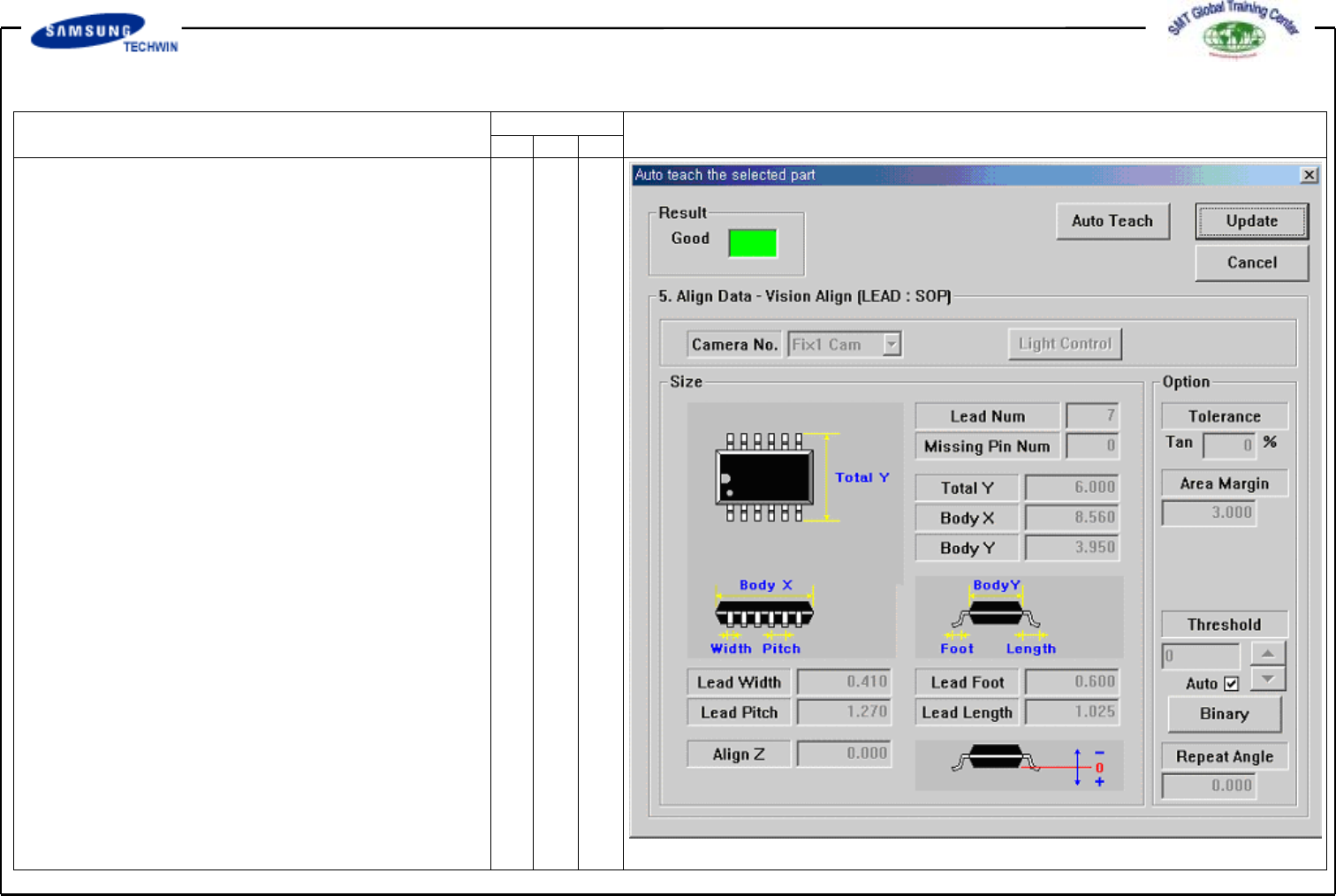

Register the part by using the
Auto Teaching. (Identical to SOP)
