Operating Manual Reference Figure CP-45/55 Operation Process 1.2.1.6 Spindle *Check Points* Foreign materials(solder paste, etc.) adhered to the inner part of spindle may cause a problem to the part pickup. Thus, clean o…

Operating Manual Reference Figure

CP-45/55 Operation Process

1.2.1.5 Vacuum Filter

*Check Points*

If a filter is contaminated by dust particles

in air or solder paste, etc., vacuum can not

be generated properly. Thus, check the filter

occasionally and replace it with new part if

necessary.

*Actions to be taken*

When a filter is contaminated, remove the

filter as shown in the following figure,

replace it with new part and also clean out

the foreign materials in the inner part of

spindle.

Vacuum Filter

Fig.1-3

Vacuum Filter Check

Fitting

Filter

Nipple

Fig. 1-4. Replacing a Filter

Operating Manual Reference Figure

CP-45/55 Operation Process

1.2.1.6 Spindle

*Check Points*

Foreign materials(solder paste, etc.) adhered

to the inner part of spindle may cause a

problem to the part pickup. Thus, clean out

the inner part of spindle.

*Actions to be taken*

@Disconnect a Housing, and

disassemble a joint in the housing.

@Apply soft cloth on the bottom of

spindle and pour some alcohol into

the upper hole of spindle.

@Blow off alcohol and foreign

materials remaining in the inner part

of the spline with an air gun.

Housing

Joint

Spline Shaft

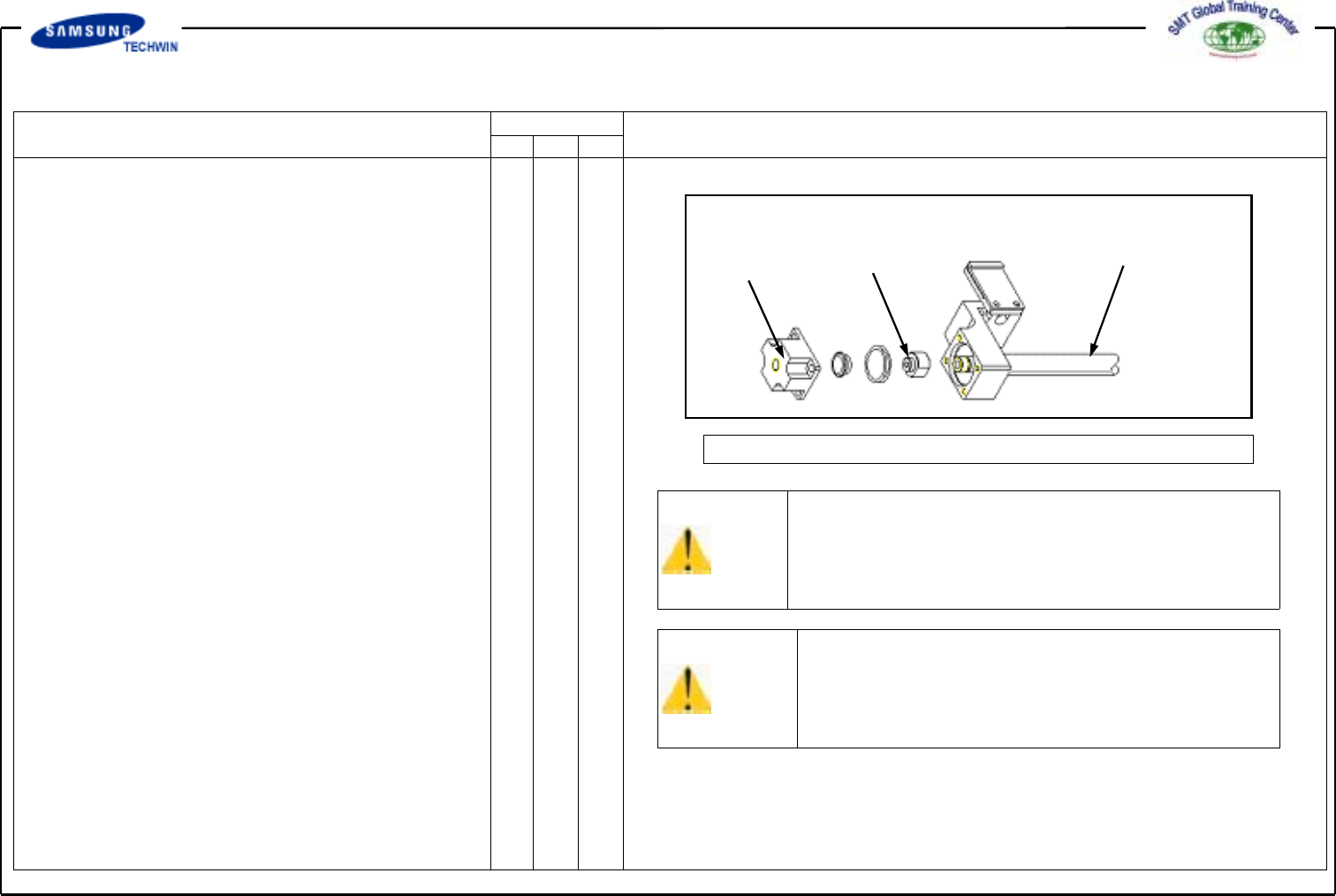

Fig. 1-5. Removing the foreign materials in Spline

Caution

Failing to wear the protective goggles when operating

the air gun may cause severe injury to eyes. Be sure

to wear the protective goggles when operating the air

gun.

Caution

Apply soft cloth on the bottom hole so that alcohol

can not be splashed outward when pouring it.

Operating Manual Reference Figure

CP-45/55 Operation Process

1.2.1.7 Timing Belt

*Check Points*

@Check a timing belt for its tension.

@Check that the timing belt is worn

improperly.

*Actions to be taken*

@Defectives of timing belt may cause

its early wear. When the defectives

occurred, contact our designated

C/S company immediately.

Timing

Belt
