Operating Manual Reference Figure CP-45/55 Operation Process 1.2.1.8 Air Part *Check Points* @Check the fittings of the air distributor and the s olenoid v alve fo r proper airtight. @Check the blow chamber fitted on the…
Operating Manual Reference Figure
CP-45/55 Operation Process

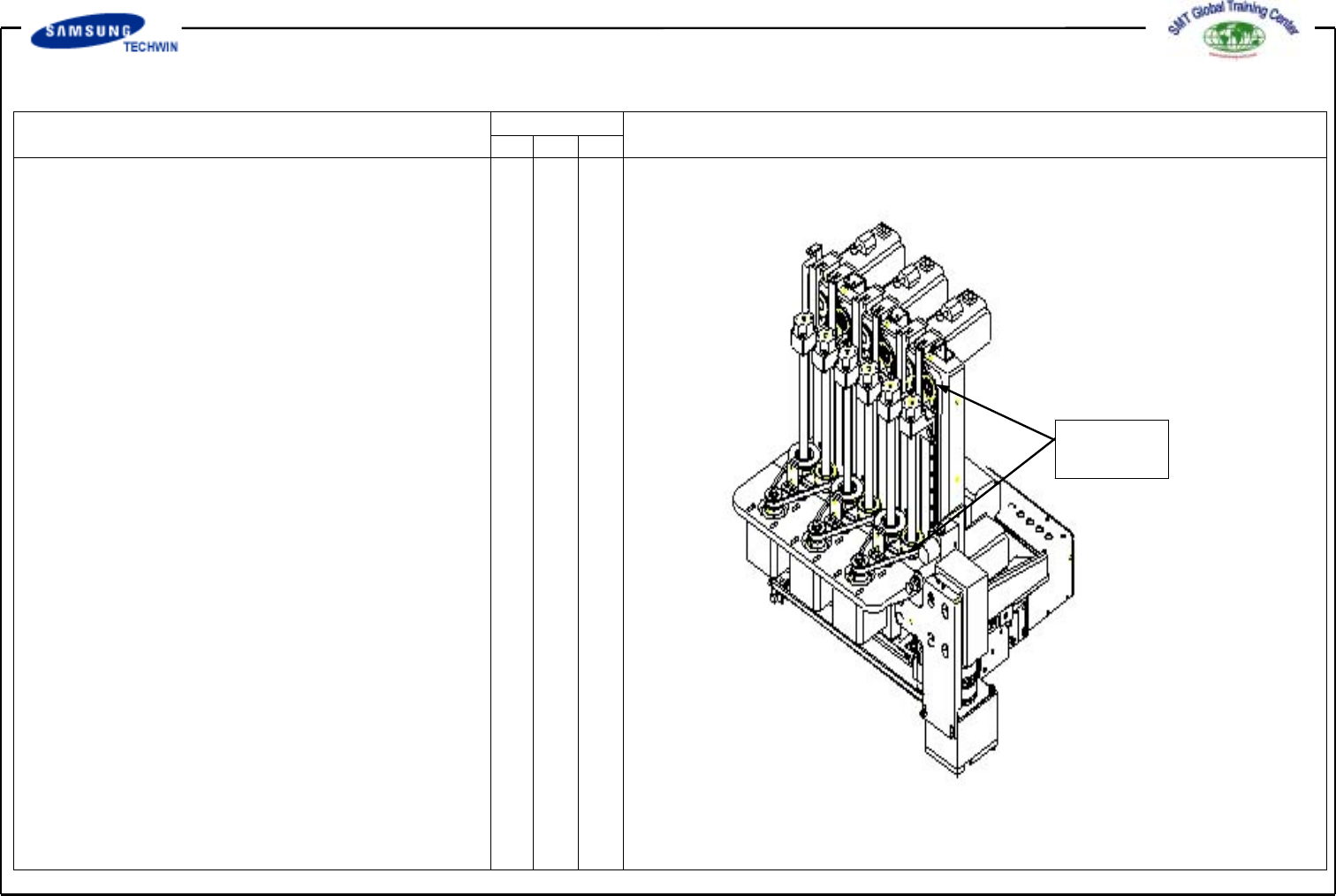

1.2.1.7 Timing Belt
*Check Points*
@Check a timing belt for its tension.
@Check that the timing belt is worn
improperly.
*Actions to be taken*
@Defectives of timing belt may cause
its early wear. When the defectives
occurred, contact our designated
C/S company immediately.
Timing
Belt
Operating Manual Reference Figure
CP-45/55 Operation Process

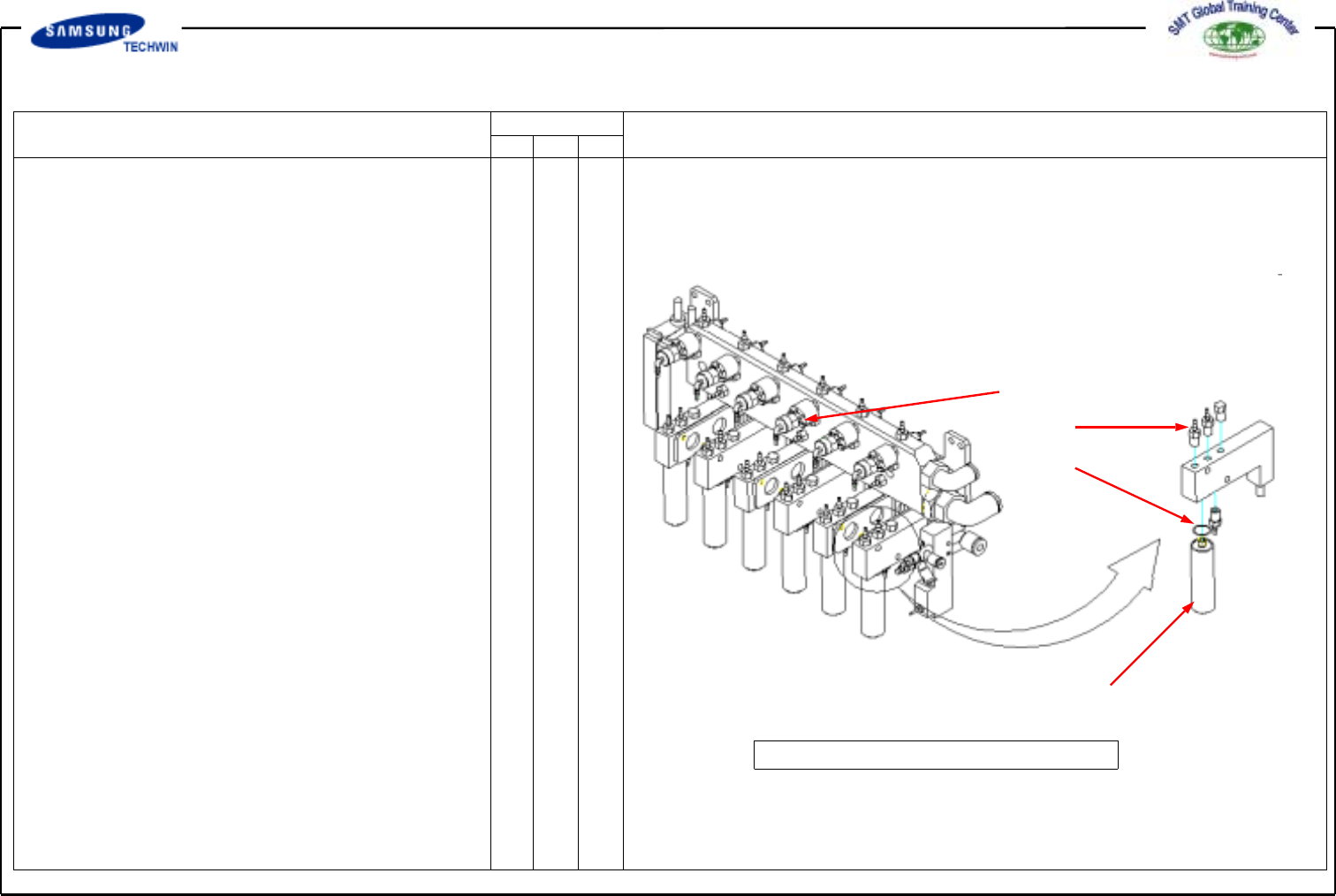

1.2.1.8 Air Part
*Check Points*
@Check the fittings of the air
distributor and the solenoid valve for
proper airtight.
@Check the blow chamber fitted on
the solenoid valve for proper
airtight.
*Actions to be taken*
@When the connector of fitting is
leaked, tighten it by suitable forces
so that the fitting can not be
damaged.
@If the blow chamber is loosened, air
leakage may occur to it. Tighten the
blow chamber for preventing from
the leakage. At this time, care is to
be taken for ensuring that O-ring in
the blow chamber can not be
missed.
@If replacing the part caused by
improper leakage or damage, be
sure to contact our designated
C/S company for proper actions.
air
DISTRIBUTE
fitting
O-ring
Blow chamber
Fig. 17. Vacuum Generator
Operating Manual Reference Figure
CP-45/55 Operation Process

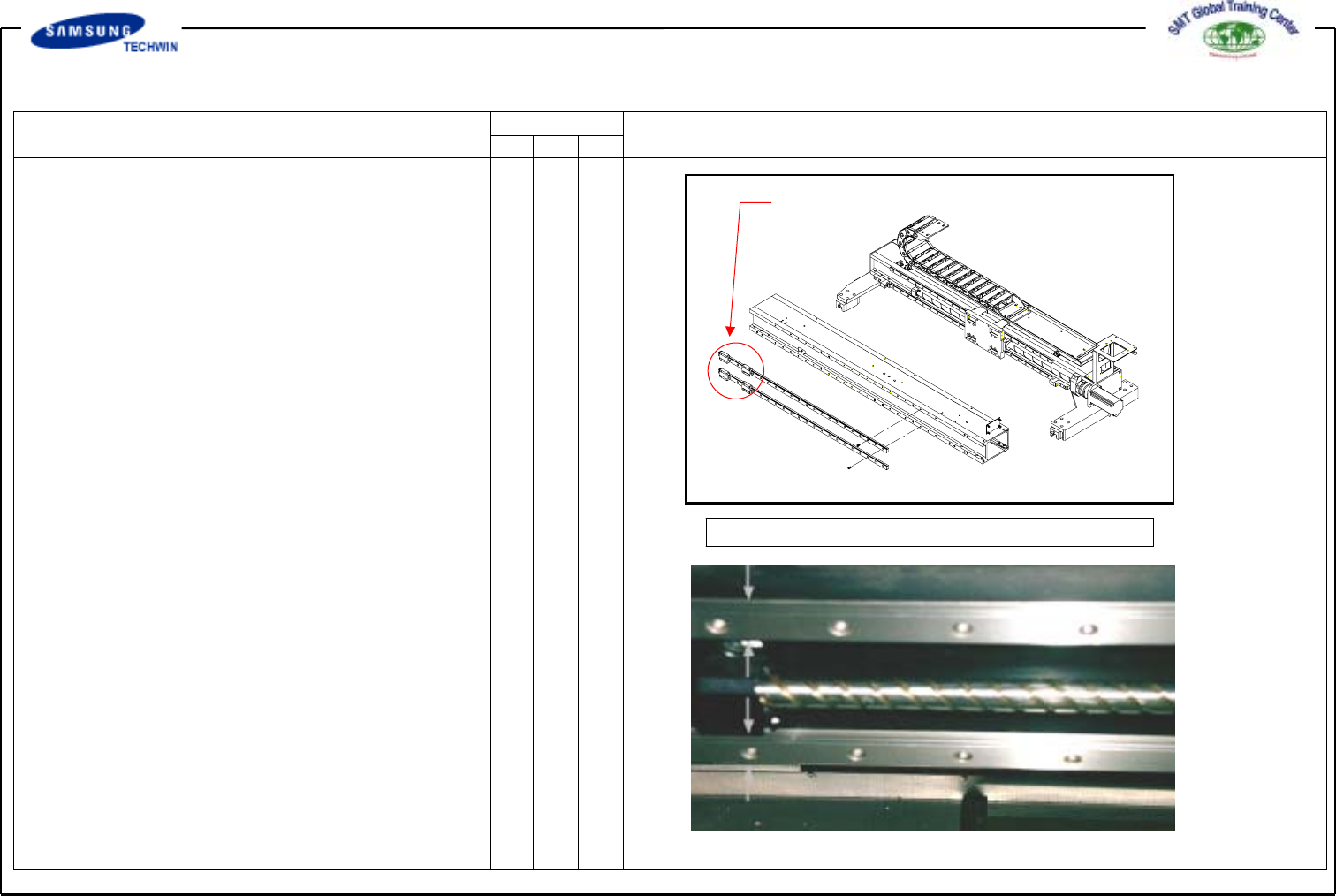

1.2.2. X-Y Frame Part
1.2.2.1 X-Axis L/M Guide Rail
*Check Points*
@Check the rail for dust particles,
or stains, etc.
@If the rail is dried too much,
excessive noise may occur. Check
the lubrication conditions.
X-axis L/M Guide Rail & Bloc
k
Fig. 1-8. X-Axis L/M Guide Rail & Block
