Operating Manual Reference Figure CP-45/55 Operation Process 1.2.2.3 X-Axis Ball Screw *Check Points* @Check the screw for dust particles, or stain s, etc. @If the screw is dried too much, excessive noise may occur. Chec…
Operating Manual Reference Figure
CP-45/55 Operation Process

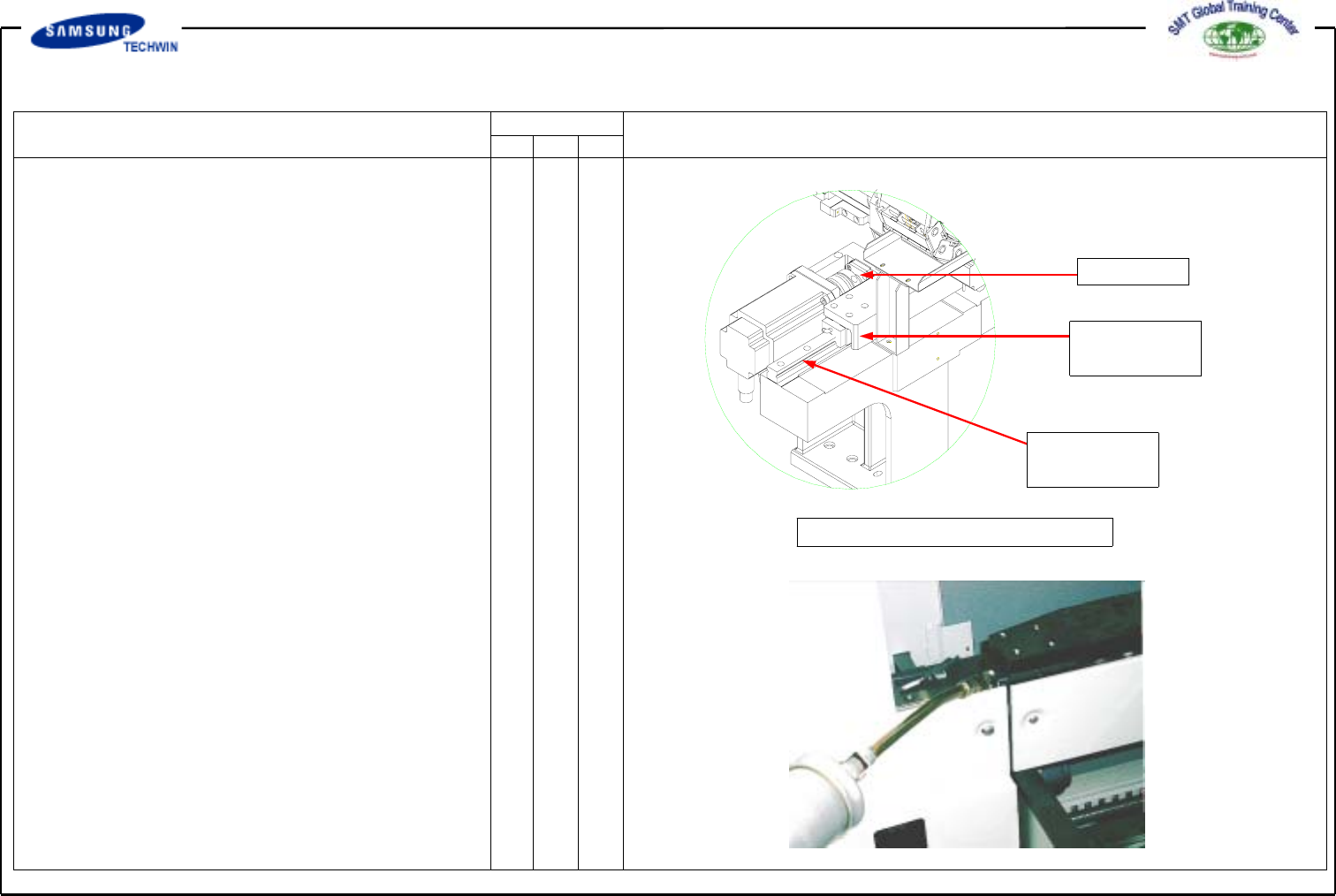

1.2.2.2 Y-Axis L/M Guide Rail
*Check Points*
@Check the rail for dust particles,
or stains, etc.
@If the rail is dried too much,
excessive noise may occur. Check
the lubrication conditions.
L/M Guide
Rail
L/M Guide
Block
Coupling
*Actions to be taken*
@Clean out dust particles or foreign
materials, etc. with dustproof cloth,
and, if required, apply thinly the
grease to the rail surface with a
brush.
@Refer to an Article 1.1.2 General
Lubrication for applying method.
Fig. 1-9. Y-Axis L/M Guide
Operating Manual Reference Figure
CP-45/55 Operation Process

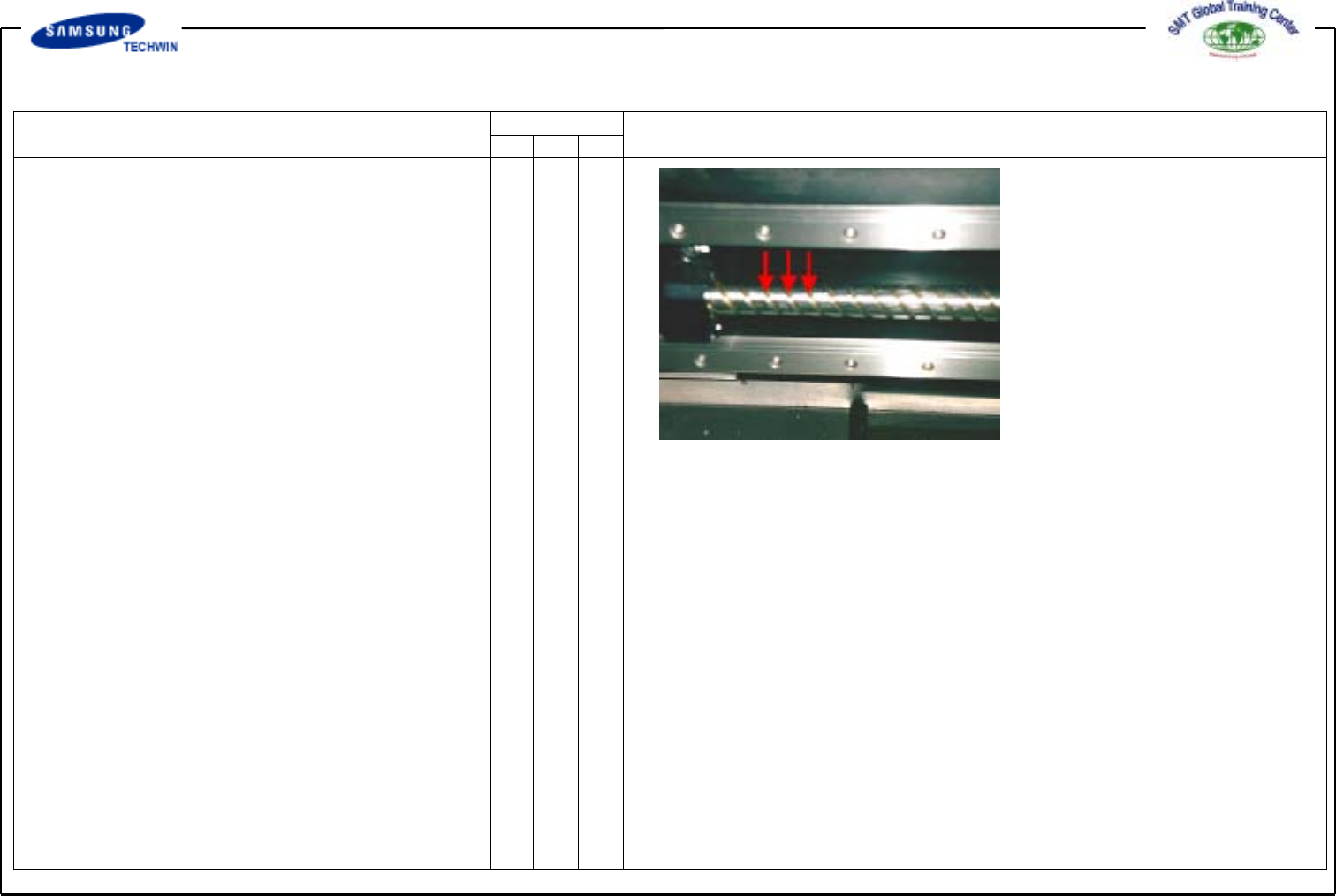

1.2.2.3 X-Axis Ball Screw
*Check Points*
@Check the screw for dust particles,
or stains, etc.
@If the screw is dried too much,
excessive noise may occur. Check
the lubrication conditions.
*Actions to be taken*
@Clean out the dust particles, foreign
materials, etc. and, if required,
apply the grease to a slot of
screw.
@Refer to an Article 1.1.2 General
Lubrication for applying method.
Operating Manual Reference Figure
CP-45/55 Operation Process
1.2.2.4 Y-Axis Ball Screw
*Check Points*
@Check the screw for dust particles,
or stains, etc.
@If the screw is dried too much,
excessive noise may occur. Check
the lubrication conditions.
*Actions to be taken*
@Clean out the dust particles, foreign
materials, etc. and, if required,
apply the grease to the screw.
@Apply the grease through the
grease nipple.
@Refer to an Article 1.1.2 General
Lubrication for applying method.

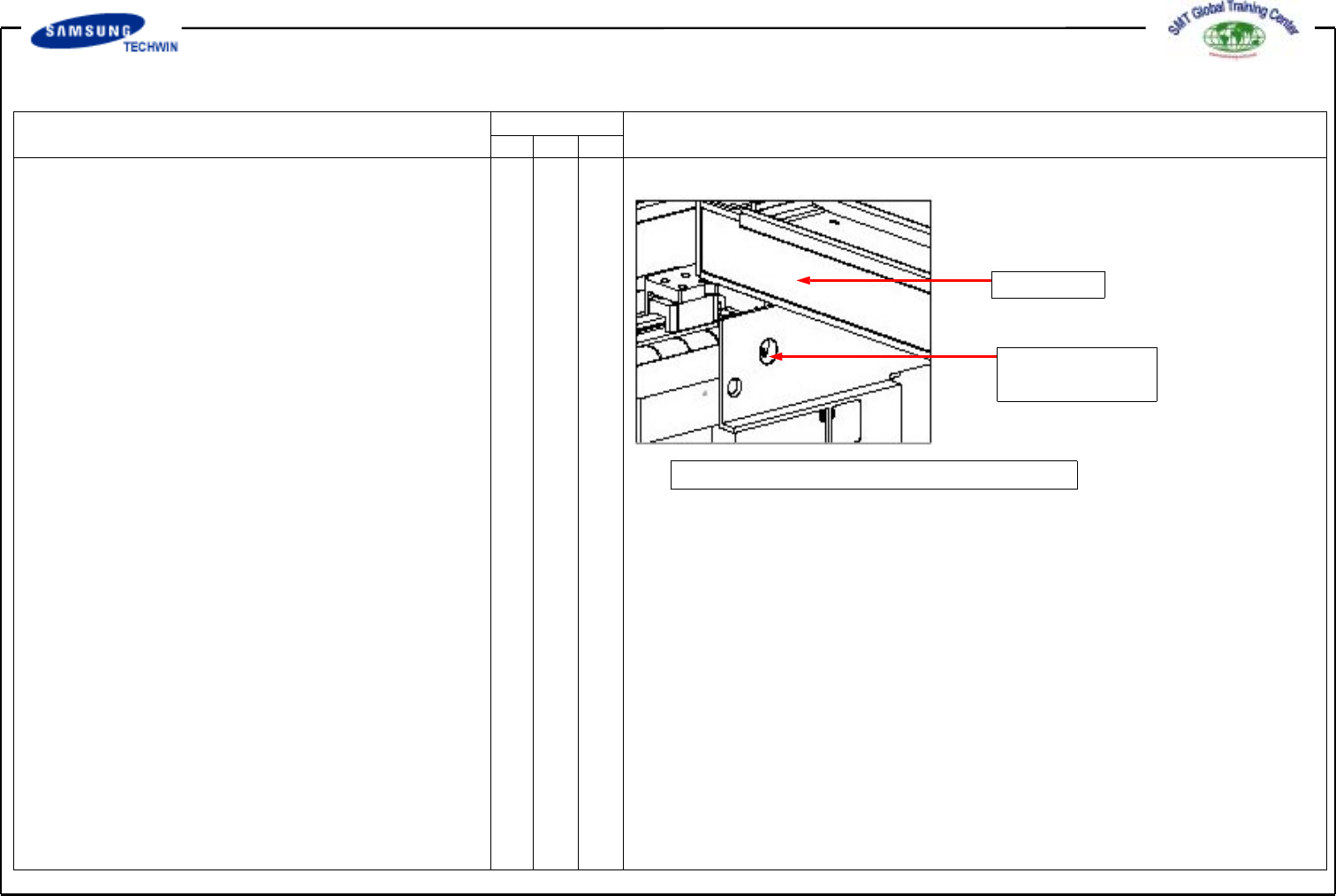

XFrame
Y-Axis Ball
Screw Opening
1.2.2.5 X,Y Axes Coupling
*Check Points*
@Check the coupling for the
tightening force.
*Actions to be taken*
@Tighten the coupling tightening bolt.
Fig. 110. Y Axis Ball Screw Opening
