Operating Manual
MODEL
Reference Figure
CP-45/55 Operation Process
2.3-2)
Tray Feeder
Tray Feeder Setup
<Select> Area: Max. 4 places
allowable.
Name/Type:Registerwith
FW-20S / FW-20S(393219).
Origin: Defines the reference
point within Tray.
Communication: Selects
Communication Channel.
(Apply the selection identical to
actual connections.)
Not Usable Lane: Selects the
area occupied to Feeder Base.
(Rear / 12~35)
Update: Completes the Setup and
applies the selection.
Refer to 1.2 Feeder in Operations
Manual for more information.
Operating Manual
MODEL
Reference Figure
CP-45/55 Operation Process
V
Tray Feeder Register
Part: QFP100Pin / BGA256 Select
Pallet Out: Selects Pallet Out
after selection of relevant
part.
Pocket Position: Applies 2Point
Teaching in 3 positions of Pallet.
XN / YN: Input of X and Y
columns number
PickZ / DumpZ
(Device): Input of Pickup Height
/ Dump Height(Head)
Test Pickup
Refer to 1.2 Feeder in Operations
Manual for more information.
Operating Manual
MODEL
Reference Figure
CP-45/55 Operation Process
2.4
)

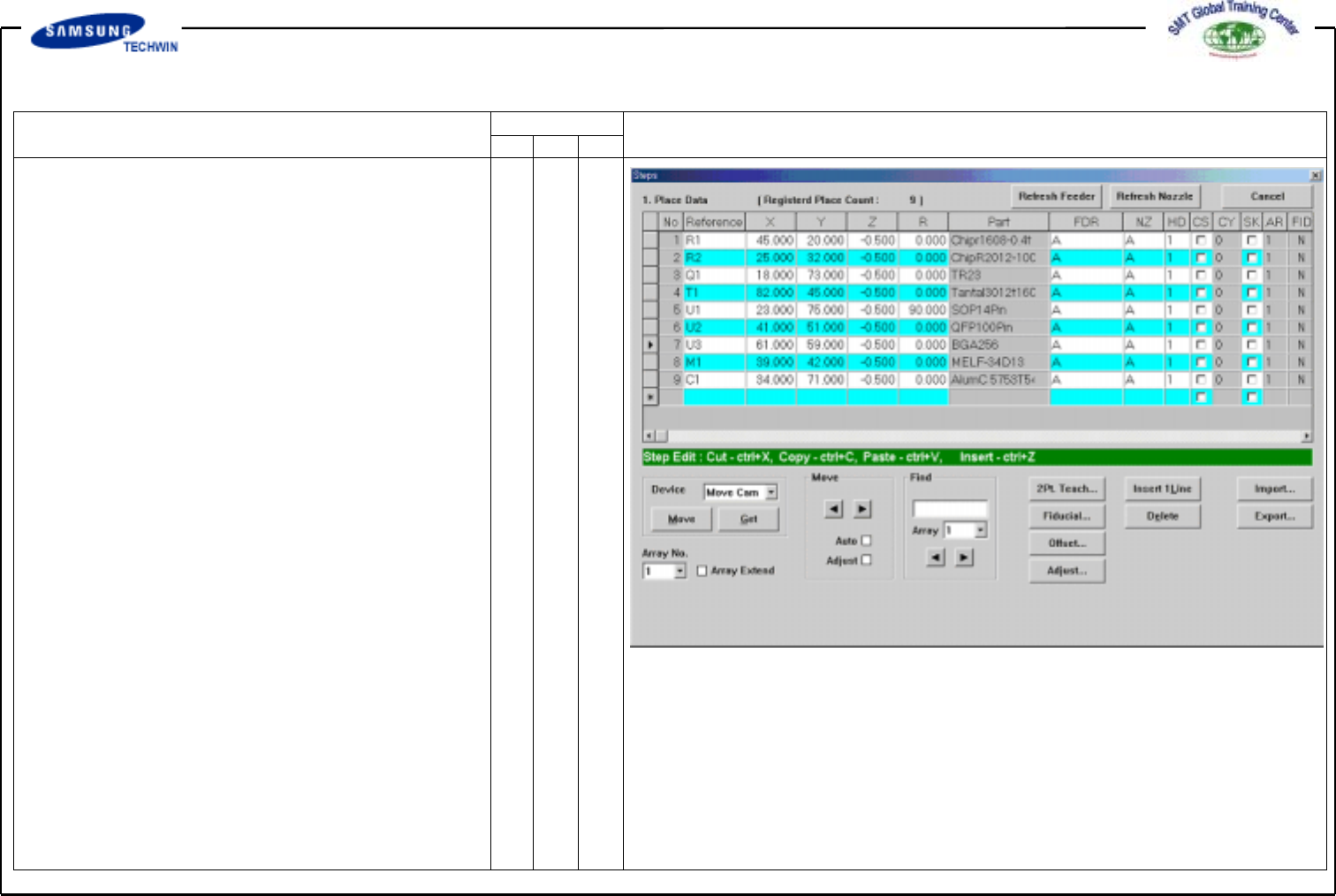

Step (Place Information Register)
<Place Position Definition>:
Place position definition by 1 point
by individual part 9 points
V
Enter the Reference.
R1, R2, Q1, T1, U1, U2,
U3, M1, C1
V
Define X and Y positions of 9
points and teach that.
Chipr1608 = X: 45 Y: 20
Chipr2012 = X: 25 Y: 32
TANTAL = X: 82 Y: 45
SOP = X: 23 Y: 75
QFP = X: 41 Y: 51
BGA = X: 61 Y: 59
MELF =X:39Y:42
A/C = X: 10 Y: 35
V
Z value Input: Enter 0.5mm for
all values.
V
R value Input: Enter degree of
90 only for TR. (Based upon
CCW)
V
Part Option: Select the part
suitable for coordinates above.
