Operating Manual Reference Figure
CP-45/55 Operation Process

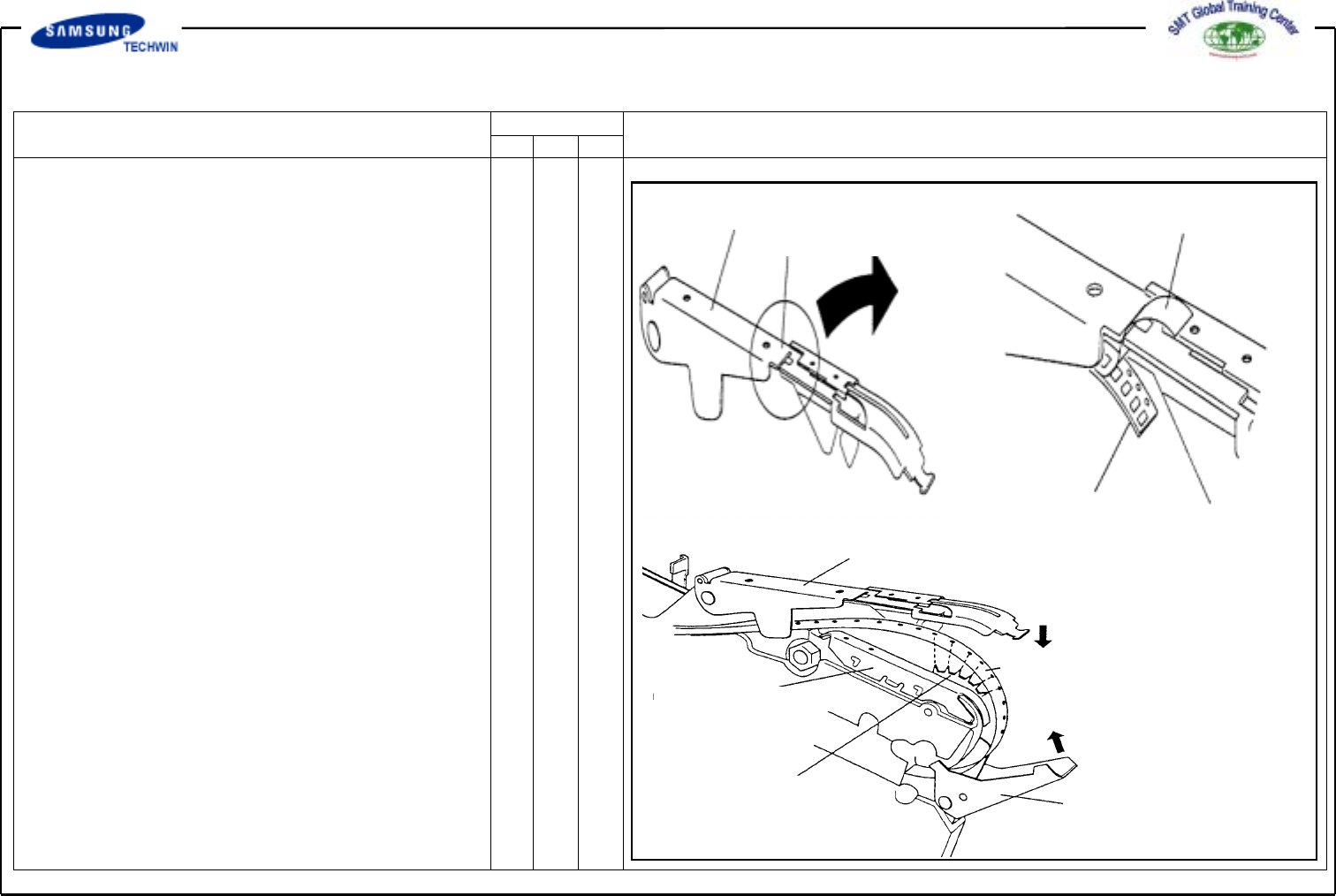

2.1.3 Separation of Upper Cover
Tape(Vinyl) from Feed Tape
-> Separate the upper cover tape(vinyl)
from the feed tape and install that to
the feeder as shown in Fig. 2.1.3.
Tape guide Tape Separating
Slot
Upper Cover Tape
Feed Tape
2.1.4 Attaching Feed Tape to
Sprocket
-> Insert the sprocket hole in feed
tape into a sprocket, close the tape
guide and lock it with locker as shown
in Fig. 2.1.4.
The shapes of some feeders are
different each other, but apply the
same method to all tape feeders
regardless of the shapes.
Tape guide
Back up guide
Feed Tape
Locker
sprocket
Operating Manual Reference Figure
CP-45/55 Operation Process

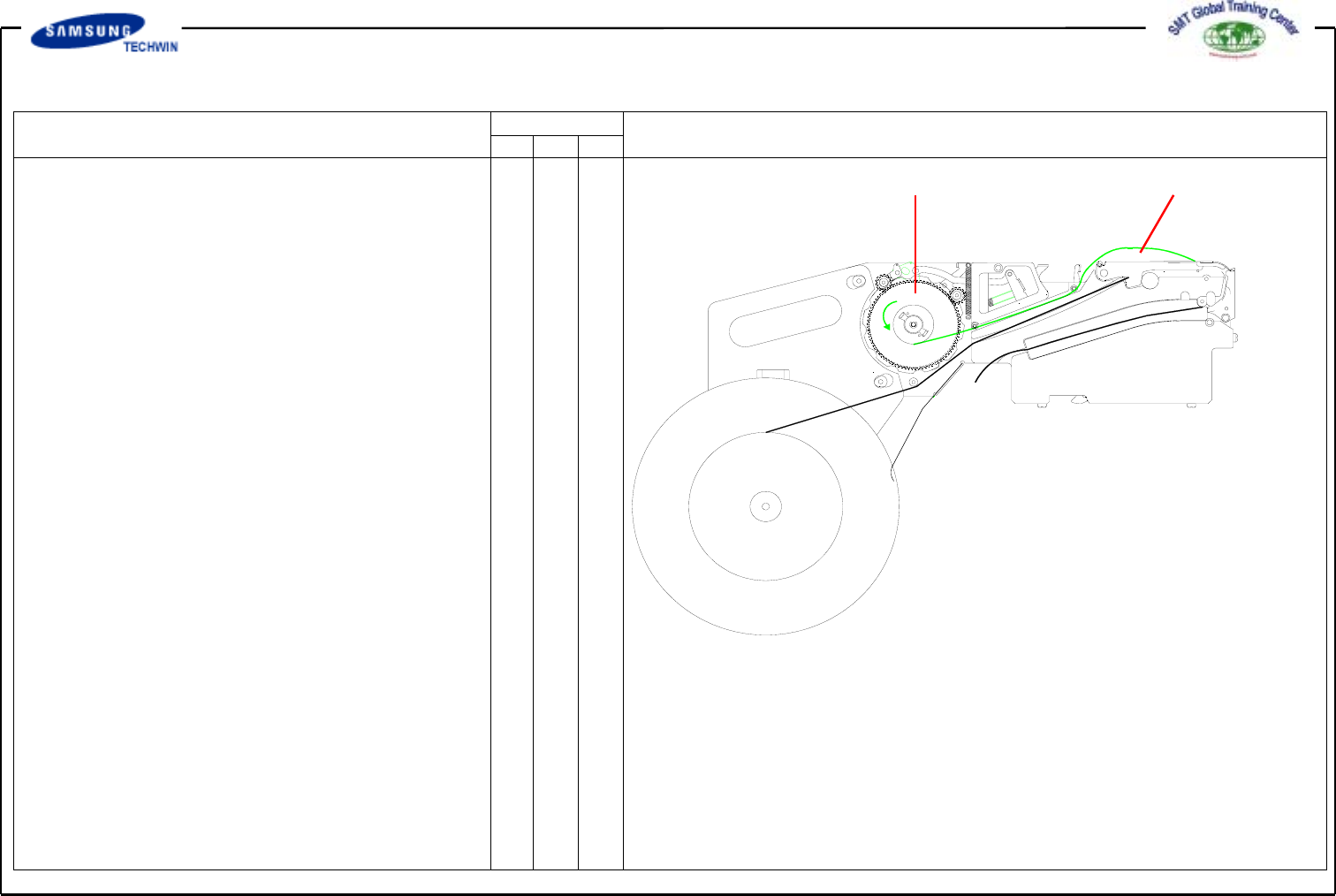

2.2 Upper Cover Tape
Handling Method
2.2.1 S-hydraulic Tape Feeder
->For 8mm take up tape feeder,
fix the end of upper cover tape to
the take up reel as shown in
following figure and take the tape
by taking the take up reel up. At
this time, if the upper cover
tape(Vinyl) is too loosen, the take
up reel fails to take up the upper
cover tape(vinyl) and can be
spread together with the feed tape.
Take up Reel Upper Cover Tape
Operating Manual Reference Figure
CP-45/55 Operation Process

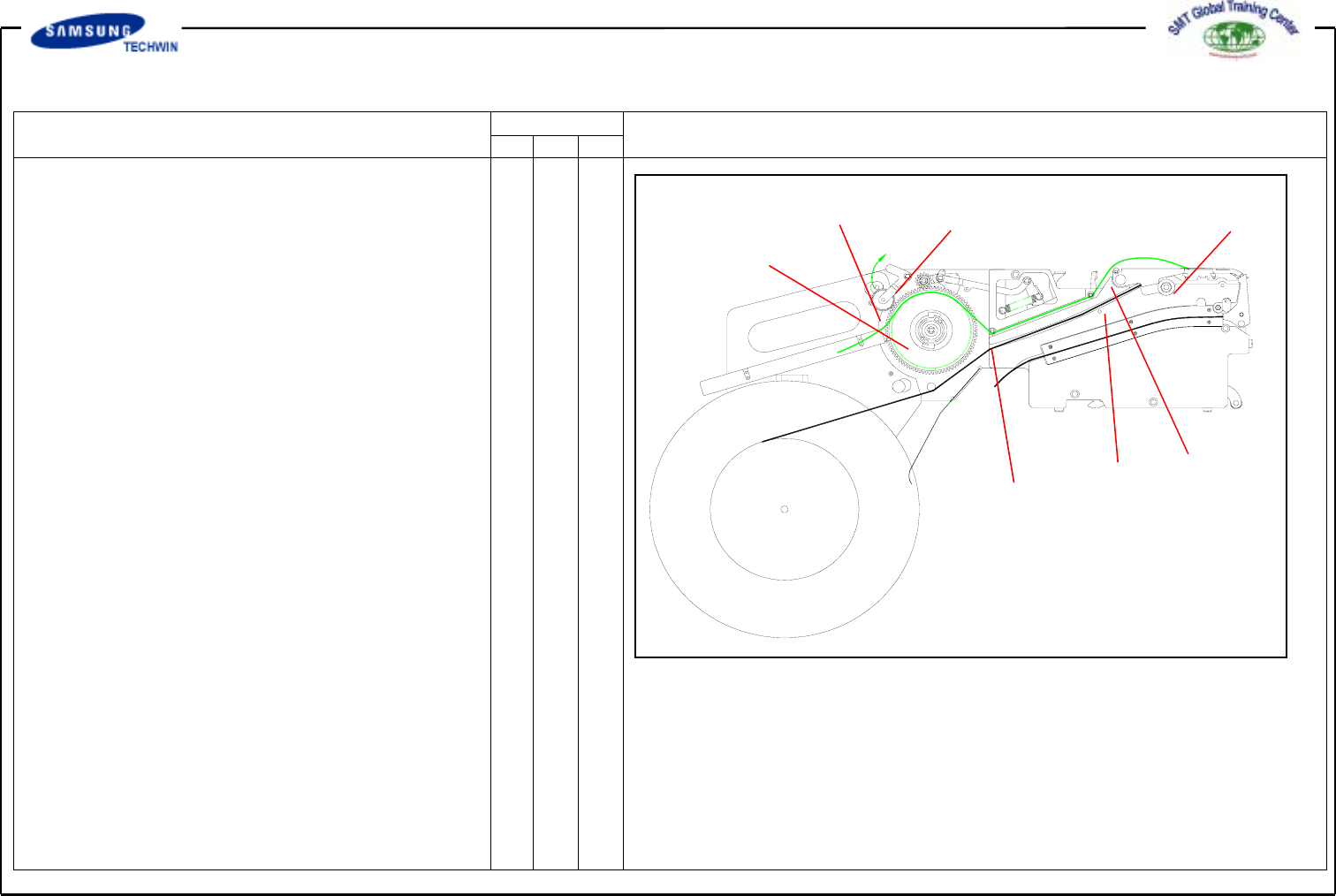

2.2.2 P-hydraulic Tape Feeder
(Drain-type Feeder )
->For 8mm drain type tape feeder,
Fix the upper cover tape by
putting the upper cover tape
between drain gear and forming
gear by turning the drain pole to
CW with taking up the upper of
drain gear, and then return again
the drain pole to CCW. At
this time, if the upper cover
tape(Vinyl) is too loosen, the
upper cover tape(vinyil) can not
be drained by the forming gear
and can be spread together with
the feed tape.
Drain Gear
Forming Gear
Drain Pole
Upper Cover
Tape
Roller C
Roller B
Roller A
