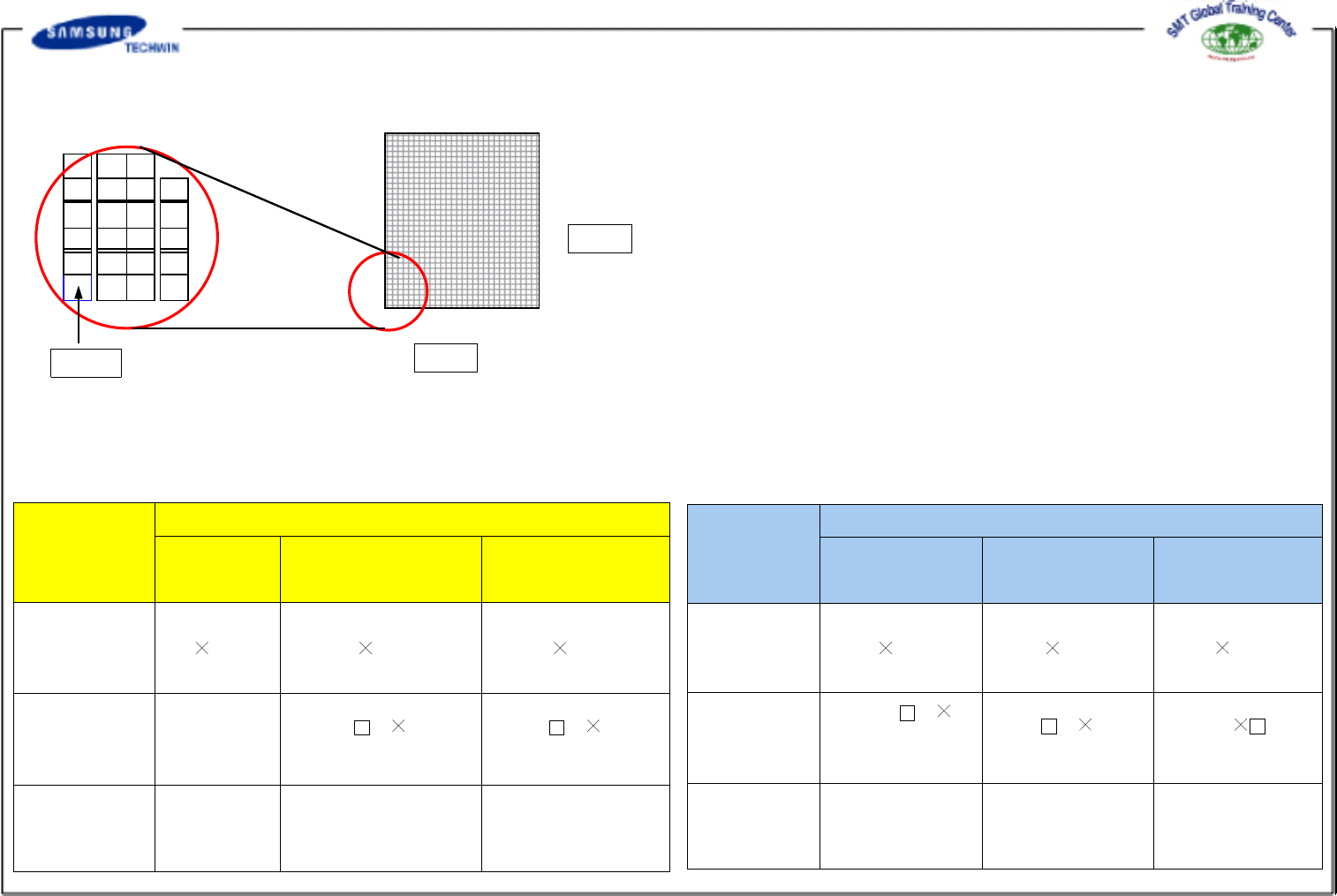

Operating Manual Reference Figure
CP-45/55 Operation Process
* 1. FOV (Fleld Of View)
1-1 STANDARD FOV (Field Of View) 1-2 OPTION FOV (Field Of View)
CAMERA
STANDARD
MOVE FLY FIXED
FOV 12 12mm 25 25mm 35 35mm
COMPONENT
SIZE
None
MAX. 22 22mm
(0.65)mm
MAX. 32 32mm
(0.40)mm
BASIC PIXEL 25[um/pixel] 50[um/pixel] 70[um/pixel]
CAMERA
OPTION
FLY FIXED-1 FIXED-2
FOV 15 15mm 20 20mm 45 45mm
COMPONENT
SIZE
MAX. 12
12mm
(0.65)mm
MAX. 17 17mm
(0.30)mm
MAX.42 42mm
(0.50)mm
BASIC PIXEL 30[um/pixel] 40[um/pixel] 90[um/pixel]
pixel
512a
512a
Operating Manual Reference Figure
CP-45/55 Operation Process
<FIX CAMERA>
<FLY CAMERA>
* 3. FIX - FLY Illumination
Relationship
* Body / Lead type
Note) When using with Fly after Auto
TeachingwithFix,modificationas
above is required.
