3.4 Dimensions and weight
3.4.1 Technical data - dimensions and weight
Length
Without extension kit
1587 mm
1168 mm
Width of basic machine
With CO trolley
Incl. monitors
With keyboards
2285 mm
2636 mm (D1), 2560 mm (D2)
2555 mm
2574 mm
Height of the machine
With indicator lamp
With folded-up protective covers
max. 1809 mm
1878 mm (PCB conveyor height: 830 mm)
1948 mm (PCB conveyor height: 900 mm)
1978 mm (PCB conveyor height: 930 mm)
2001 mm (PCB conveyor height: 950 mm)
Machine ground clearance 107 mm (PCB conveyor height: 830 mm)
177 mm (PCB conveyor height: 900 mm)
207 mm (PCB conveyor height: 930 mm)
230 mm (PCB conveyor height: 950 mm)
Weight
Basic machine with 2 component trolleys
Full configuration with feeder modules
SIPLACE D1 SIPLACE D2
2325 kg 2343 kg
2516 kg 2534 kg
Footprint SIPLACE D1 SIPLACE D2
4.21 m² 4.21 m²
Load per unit area
a
a) The load per unit area calculation included an additional working space of 0.5 m on each side of the
machine. Further data available on request.
SIPLACE D1 SIPLACE D2
4.71 kN/m² 4.71 kN/m²
Number of machine feet 4
Maximum noise emissions 74 dB (A)
Room temperature Between 15°C and 35°C
Atmospheric humidity 30 to 75% (but no higher than 45% on aver-
age in order to prevent any possibility of
condensation on the machine).
User Manual SIPLACE D1/D2 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.4 Dimensions and weight
103
3.4.2 Dimensions of the machine (basic machine)
3
3

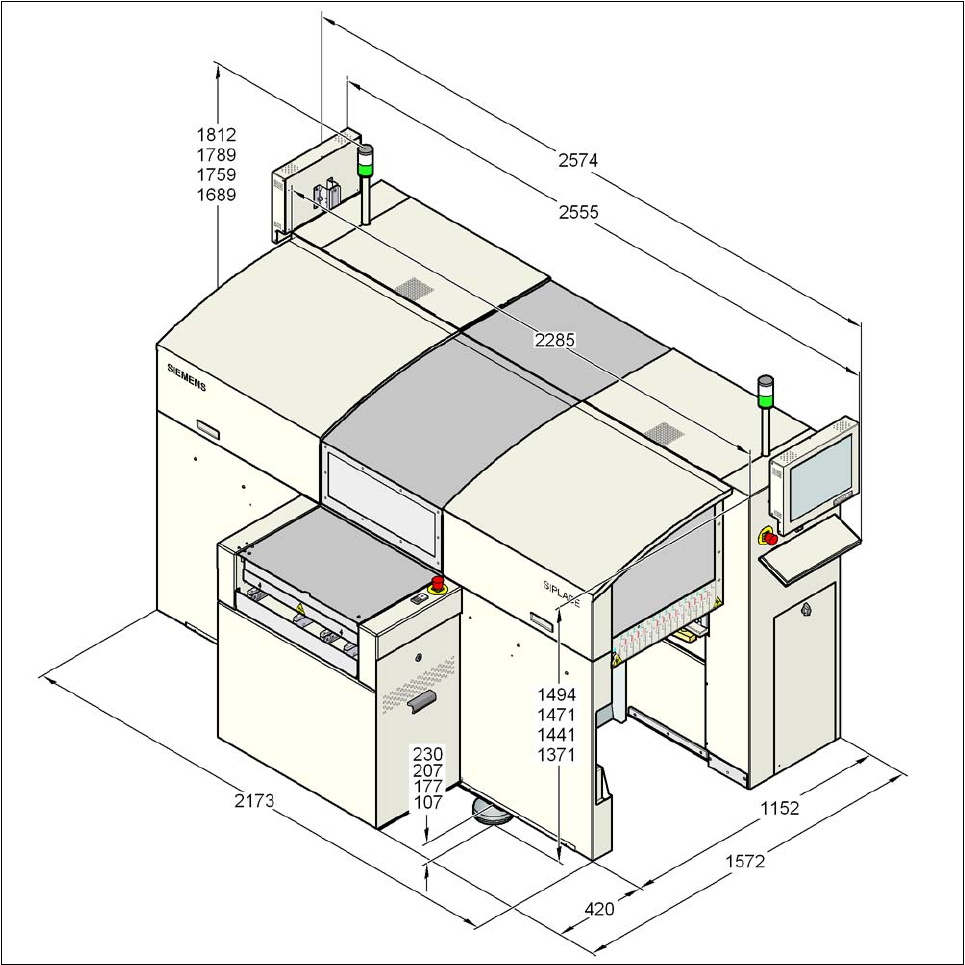

Fig. 3.4 - 1 Dimensions of the machine (basic machine) in millimeters
3
3 Technical data for the machine User Manual SIPLACE D1/D2
3.4 Dimensions and weight From software version SR.605.xx 07/2008 EN Edition
104
3.4.3 Height of the folded up protective cover
3

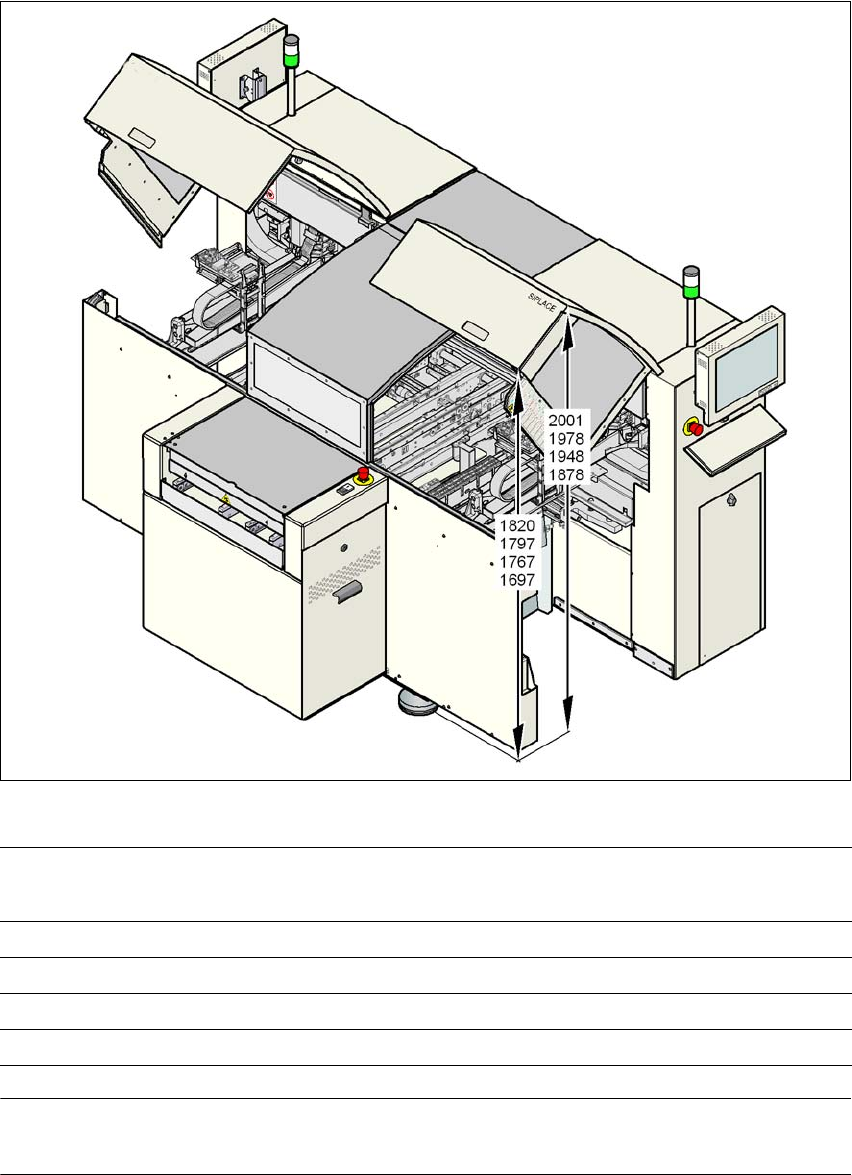

Fig. 3.4 - 2 Height of the folded-up protective cover - dimensions in millimeters
PLEASE NOTE 3
One can optionally increase the opening angle of the protective covers using other gas springs.
PCB conveyor height Height of bottom edge of the
lifted-up protective cover
Height of top edge of the lifted-
up protective cover
950 mm 1820 2001
930 mm 1797 1978
900 mm 1767 1948
830 mm 1697 1878
