3 Technical data for the machine User Manual SIPLACE D1/D2 3.10 Feeder modules From software version SR.605.xx 07/2008 EN Edition 148 3.10.8.2 3 x 8 mm S tape feeder mo dule Fig. 3.10 - 2 3 x 8 mm S tape feeder module It…
User Manual SIPLACE D1/D2 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.10 Feeder modules
147
3.10.8 Technical data for the S feeder modules
The following pages contain pictures of all the S feeder modules, the technical data and the op-
tions for setting up the feeder modules on the machine.
3.10.8.1 8 mm SII tape feeder module
3
Fig. 3.10 - 1 8 mm SII tape feeder module
3
Item no. 00141096-xx 3
Width 30.6 mm 3
Tracks per feeder module 2 3
Feeder module locations filled 1 3
Max. number of feeder modules per machine 2 x 15 3
Stock of components for 7" reels Approx. 4,000 3
Conveyor increment 2mm / 4mm 3
Tape material Paper or blister tapes 3
Max. component height 2.5 mm 3
3 Technical data for the machine User Manual SIPLACE D1/D2
3.10 Feeder modules From software version SR.605.xx 07/2008 EN Edition
148
3.10.8.2 3 x 8 mm S tape feeder module

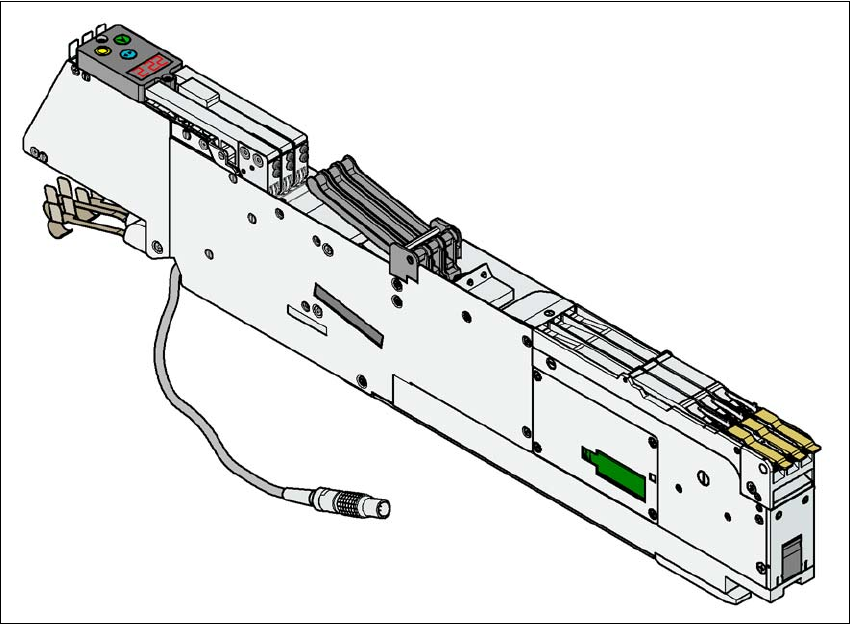

Fig. 3.10 - 2 3 x 8 mm S tape feeder module
Item no. 00141098-xx 3
Width 30.6 mm 3
Tracks per feeder module 3 3
Feeder module locations filled 1 3
Max. number of feeder modules per machine 2 x 15 3
Stock of components for 7" reels Approx. 4,000 to 10,000 3
Conveyor increment 2 mm / 4 mm / 8 mm 3
Tape material Paper or blister tapes 3
Max. component height 2.5 mm 3
User Manual SIPLACE D1/D2 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.10 Feeder modules
149
3.10.8.3 Tape feeder module 3 x 8 mm S for 01005 components
Fig. 3.10 - 3 3x8mm S tape feeder module for 01005 components
3
Item no. 00176100-xx 3
Width 30.6 mm 3
Tracks per feeder module 3 3
Feeder module locations filled 1 3
Max. number of feeder modules per machine 2 x 15 3
Stock of components for 7" reels Approx. 10,000 3
Conveyor increment 2 mm / 4 mm 3
Tape material Paper tapes 3
Max. component height 0.7 mm 3
Component range 01005/0201/0402 3
