6.3 Component camera for the Pick&Place head
6.3.1 Stationary P&P component camera (type 25) 16 x 16, digital (FC camera)
Item no. 00119718-xx Component camera, stationary, 16x16, digital, type 25
6

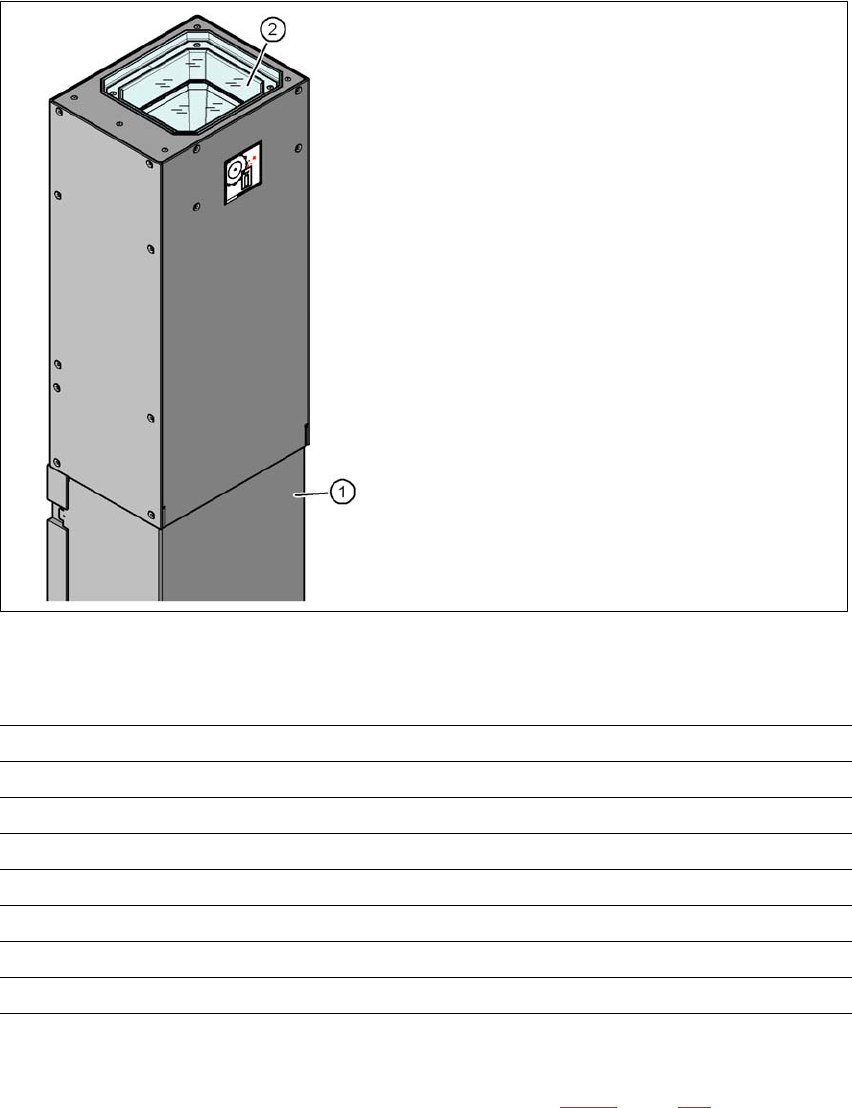

Fig. 6.3 - 1 Stationary P&P component camera (type 25) 16 x 16, digital (FC camera)
(1) Camera housing with integral camera and camera amplifier
(2) Glass plate - over the illumination and lens levels
6
6 Station extensions User Manual SIPLACE D1/D2
6.3 Component camera for the Pick&Place head From software version SR.605.xx 07/2008 EN Edition
286
6.3.1.1 Position of the component cameras for the Pick&Place head on the D1 machine
6
Fig. 6.3 - 2 Position of the component camera for the Pick&Place head on the D1 machine
(1) Assembly position for the stationary CO camera, P&P, type 36 (32 x 32) or type 33 (55 x 45)
(2) Assembly position for the stationary CO camera, P&P, type 25 (16 x 16)
6.3.1.2 Technical data, component camera, stationary, P&P, type 25
6
Component dimensions 0.2 x 0.2 mm² up to 16 x 16 mm² for single component measurement
Range of components 0201 to SO, PLCC, QFP, sockets, plugs, BGA, special components,
bare dies, flip-chips, shields
Min. lead pitch 0.25 mm
Min. lead width 0.1 mm
Min. ball pitch 0.14 mm
Min. ball diameter 0.08 mm
Field of vision 19.4 x 19.4 mm²
Method of illumination Front-illumination (6 levels, programmable as required)
User Manual SIPLACE D1/D2 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.3 Component camera for the Pick&Place head
287
6.3.2 Stationary P&P component camera, type 33, 55 x 45, digital (fine-pitch
camera)
Item no. 00119818-xx Stationary component camera, type 33, digital (55 x 45)
6
Fig. 6.3 - 3 Stationary P&P component camera, type 33, 55 x 45, digital (fine-pitch camera)
6.3.2.1 Technical data
6
6.3.2.2 Position
The position of the fine-pitch camera, type 33, is shown in Fig. 6.3 - 2, page 286.
(1) Camera housing with integral camera
and camera amplifier
(2) Glass plate - over the illumination and
lens levels
Component dimensions 0.5 x 0.5 mm² to 55 x 45 mm²
Range of components 0402, MELF, SO, PLCC, QFP, electrolytic capacitors, BGA
Min. lead pitch 0.3 mm
Min. lead width 0.15 mm
Min. ball pitch 0.35 mm
Min. ball diameter 0.2 mm
Field of vision 65 x 50 mm²
Method of illumination Front-illumination (6 levels, programmable as required)
