User Manual SIPLACE D1/D2 2 Operational safety
From software version SR.605.xx 07/2008 EN Edition 2.2 Warning labels
47
2.2.3.1 Warning label W205 on the transverse bar below the tape cutter
2

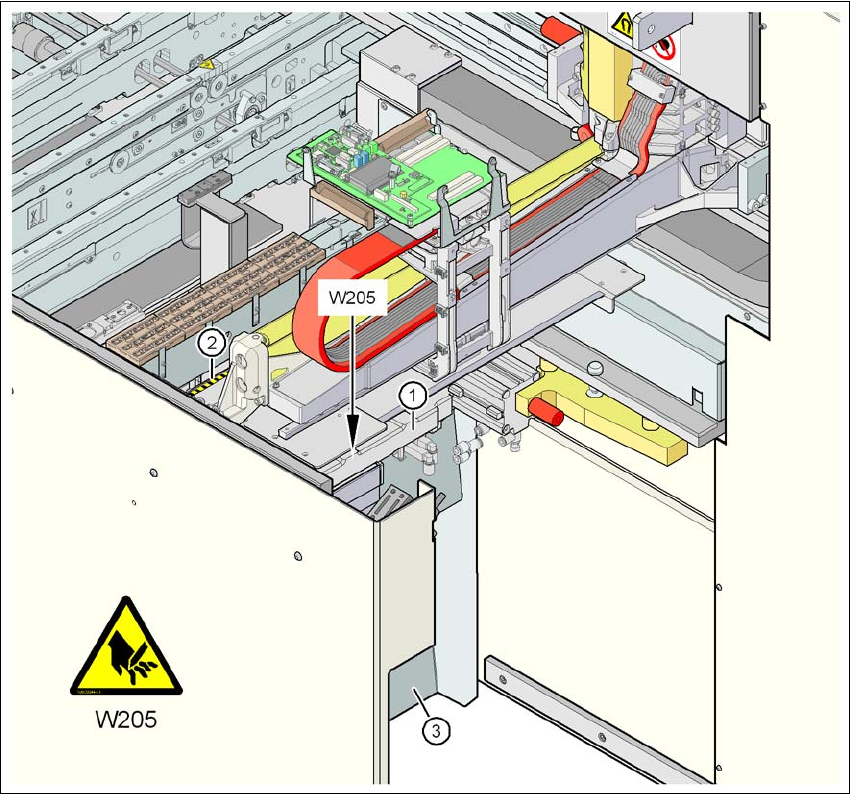

Fig. 2.2 - 4 Warning label W205 on the transverse bar below the tape cutter
(2) Tape cutter
(3) Used tape channel
(4) Used tape chute
Pos. W205, item no. 03009344-01 on the transverse bars (number per machine: 2)
2 Operational safety User Manual SIPLACE D1/D2
2.2 Warning labels From software version SR.605.xx 07/2008 EN Edition
48
2.2.3.2 Warning label W205 on the used tape chute
2

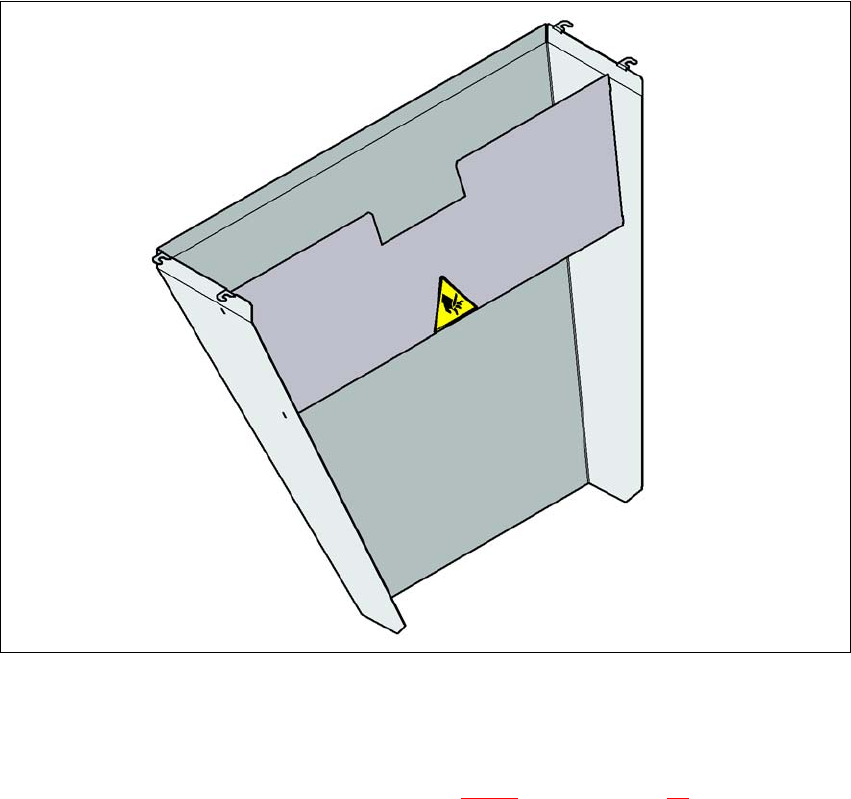

Fig. 2.2 - 5 Warning label W205 on the used tape chute
Pos. W205, item no. 03009344-01 on the used tape chute (number per machine: 2)
The position of the used tape chute is shown in Fig. 2.2 - 4
, item 3 on page 47.
User Manual SIPLACE D1/D2 2 Operational safety
From software version SR.605.xx 07/2008 EN Edition 2.2 Warning labels
49
2.2.3.3 Warning strips on the used tape channel
2

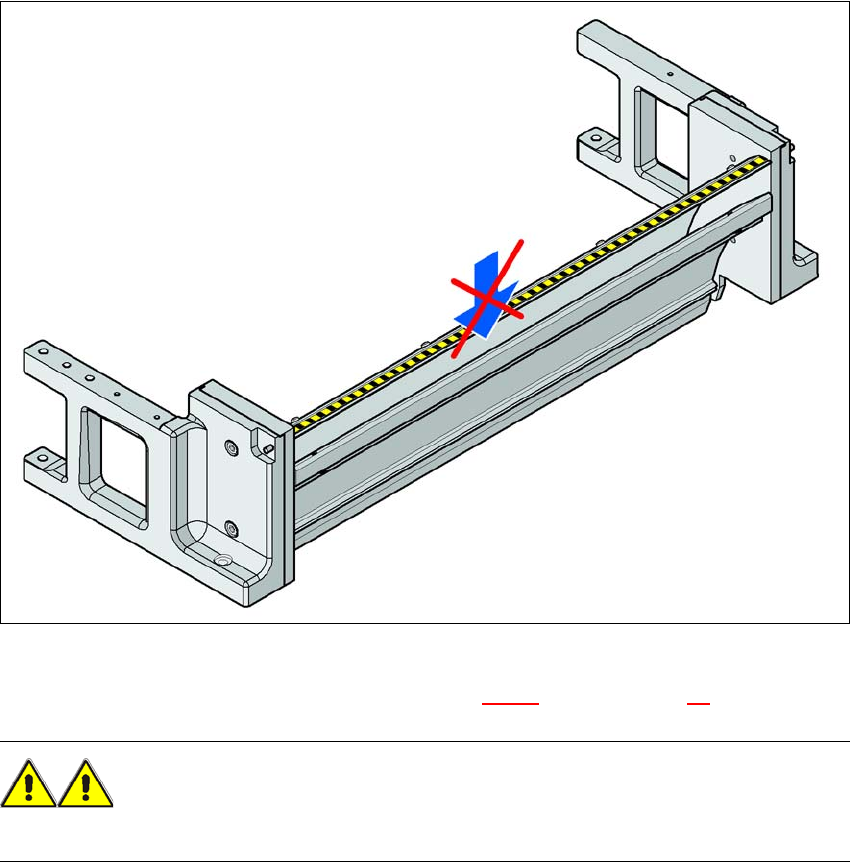

Fig. 2.2 - 6 Warning strips on the used tape channel
The position of the used tape channel is shown in Fig. 2.2 - 4, item 2 on page 47.
WARNING 2
Never reach into the opening in the used tape channel.
