User Manual SIPLACE D1/D2 2 Operational safety
From software version SR.605.xx 07/2008 EN Edition 2.2 Warning labels
41
2.2 Warning labels
2.2.1 Warning labels on the machine
The warning labels are made from soft PVC film, and are abrasion-proof, light-fast and resistant
to water and weathering. Their design meets the requirements of ISO 3864-2 and ANSI Z535.4.
2

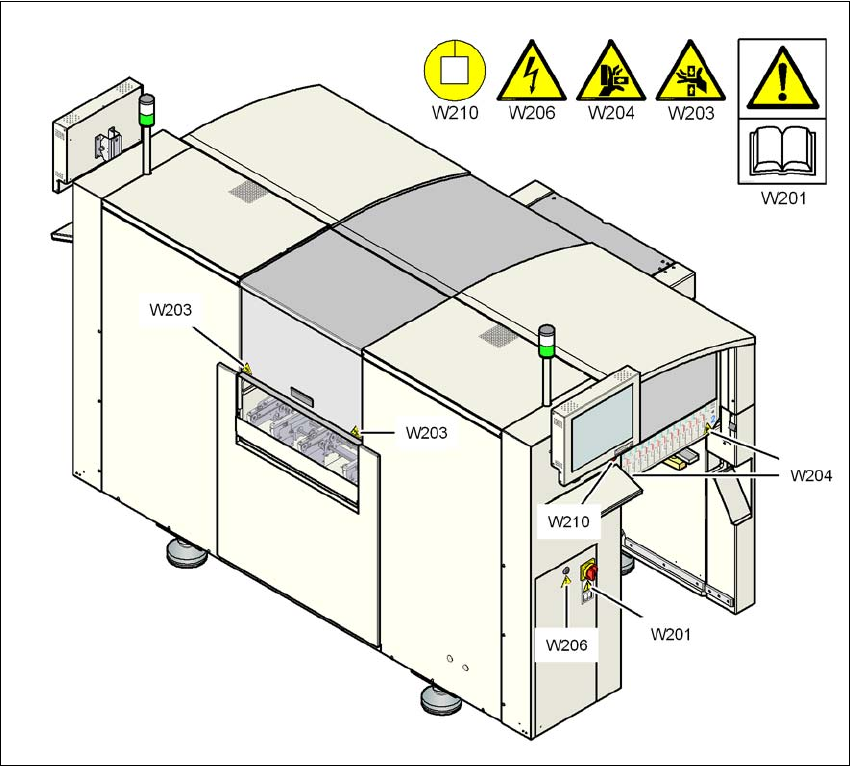

Fig. 2.2 - 1 Warning labels W201, W203, W204, W206 and W210 on the D1/D2 machines - part 1
2
Pos. W201, item no. 03009338-01
Pos. W203, item no. 03009342-01
Pos. W204, item no. 03009343-01
Pos. W206, part no. 03009345-01
Pos. W210, item no. 03009350-01
2 Operational safety User Manual SIPLACE D1/D2
2.2 Warning labels From software version SR.605.xx 07/2008 EN Edition
42
2
Fig. 2.2 - 2 Warning labels W203, W204 and W210 on the machine - part 2
Pos. W203, item no. 03009342-01
Pos. W204, item no. 03009343-01
Pos. W210, item no. 03009350-01
WARNING 2
→ Do not use abrasive cleaners or solvents for cleaning warning labels.
→ Replace any damaged or illegible warning labels.
User Manual SIPLACE D1/D2 2 Operational safety
From software version SR.605.xx 07/2008 EN Edition 2.2 Warning labels
43
2.2.1.1 Warning label W201
2
Pos. W201 in Fig. 2.2 - 1, page 41 (number per machine: 1)
2.2.1.2 Warning label W203
2
Pos. W203 in Figs. 2.2 - 1, page 41 and 2.2 - 2, page 42 (number per machine: 4)
2.2.1.3 Warning label W204
2
Pos. W204 in Figs. 2.2 - 1, page 41 and 2.2 - 2, page 42 (number per machine: 4)
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
SAFE OPERATION OF THE MACHINE
Safe operation of the machine depends absolutely on the
operator being familiar with the user manual and safety
instructions and putting them into effect.
2
2
2
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms and
hands.
Do not reach into the machine while it is running
2
2
2
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms and
hands.
Do not reach into the machine while it is running
