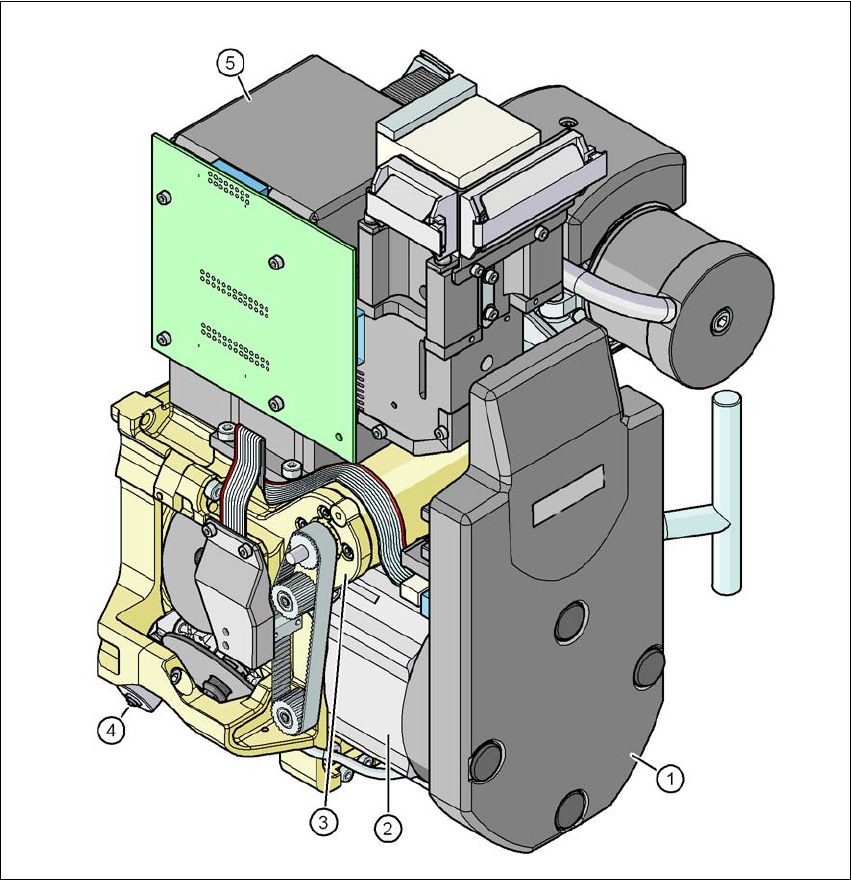

Fig. 3.6 - 4 6-segment Collect&Place head - Function groups, part 2
3
(1) Intermediate distributor board, beneath the cover
(2) Star drive - DR motor
(3) Z axis motor
(4) Valve adjustment drive
(5) C&P component camera, type 29, 27 x 27, digital
User Manual SIPLACE D1/D2 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.6 Placement head
117
3.6.2.1 Description
The 6-segment Collect&Place head also works on the Collect&Place principle. The high-resolu-
tion digital component camera allows the 6-segment Collect&Place head to place components
with an edge length of up to 27 mm accurately and very quickly. It is therefore ideal for use with
products containing a large proportion of ICs. A considerable increase in output can be achieved
even in the main application range from PLCC 44 to QFP 208.
3.6.2.2 Operation with a vacuum pump
The 6-segment Collect&Place head can be converted for operation with a vacuum pump for more
efficient vacuum generation (see Section 6.17
, page 312).
3.6.2.3 Technical data
3

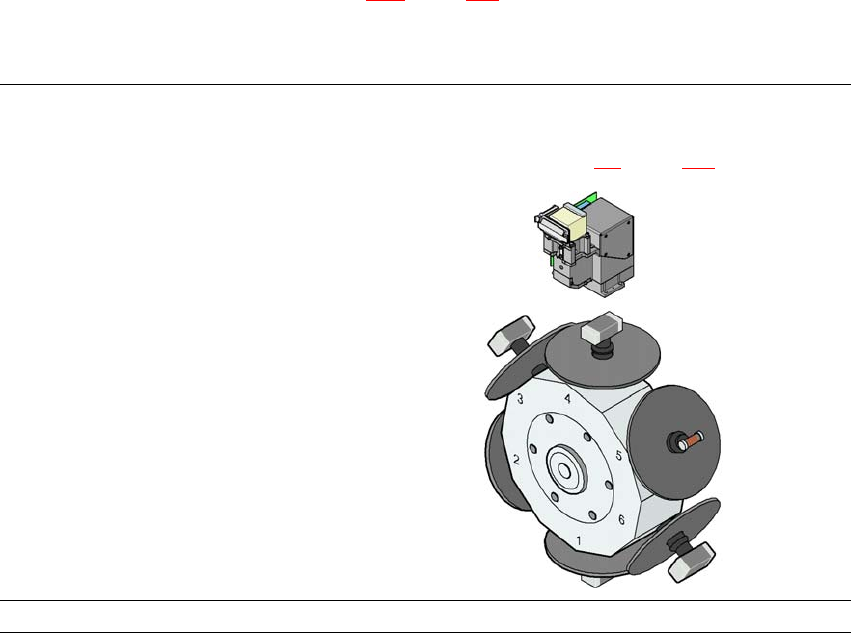

6-segment Collect&Place head with high-resolution
component camera, type 29, 27 x 27, digital
(see Section 3.9
, page 137)
Range of components
a
0201 to 27 x 27 mm²
3 Technical data for the machine User Manual SIPLACE D1/D2
3.6 Placement head From software version SR.605.xx 07/2008 EN Edition
118
Component specification
Max. height
Min. lead pitch
Min. lead width
Min. ball pitch
Min. ball diameter
Min. dimensions
Max. dimensions
Max. weight
8.5 mm
0.3 mm
0.15 mm
0.25 mm for components< 18 x 18 mm²
0.35 mm for components ≥18 x 18 mm²
0.14 mm for components < 18 x 18 mm²
0.2 mm for components ≥ 18 x 18 mm²
0.6 x 0.3 mm²
27 x 27 mm²
5 g
Programmed power stage
1
2
3
4
5
Programmed set-down force [N]
2.4 ± 0.5
2.4 ± 0.5
3 + 1
4 + 1
5 + 1
Nozzle types 8xx, 9xx
X/Y accuracy
b
± 52.5 μm/3σ, ± 70 μm/4σ
Angular accuracy ± 0.225°/3σ, ± 0.3°/4σ
Component range 99.8%
Component camera type 29
Illumination levels 5
Possible illumination level setting
256
5
a) Please note that the component range that can be placed is also affected by the pad geometry, the cus-
tomer-specific standards and the packaging tolerances.
b) The accuracy value was measured using the vendor-neutral IPC standard
