User Manual SIPLACE D1/D2 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.2 Waffle-pack changer (WPC)
281
6.2.3.3 Permitted environmental factors
6.2.4 Installation notes for the WPC
The WPC can be docked into the right-hand side of the machine at location 1 of the D1 machine.
Install the upgrade kit on location 1. Then dock in the WPC. If you use the WPC at another loca-
tion, the free location may be set up with a component trolley once more.
Room temperature Between 15°C and 35°C
Atmospheric humidity 30 - 90% at 20°C
6 Station extensions User Manual SIPLACE D1/D2
6.2 Waffle-pack changer (WPC) From software version SR.605.xx 07/2008 EN Edition
282
6.2.5 Dimensions of the D1 machine with WPC
6

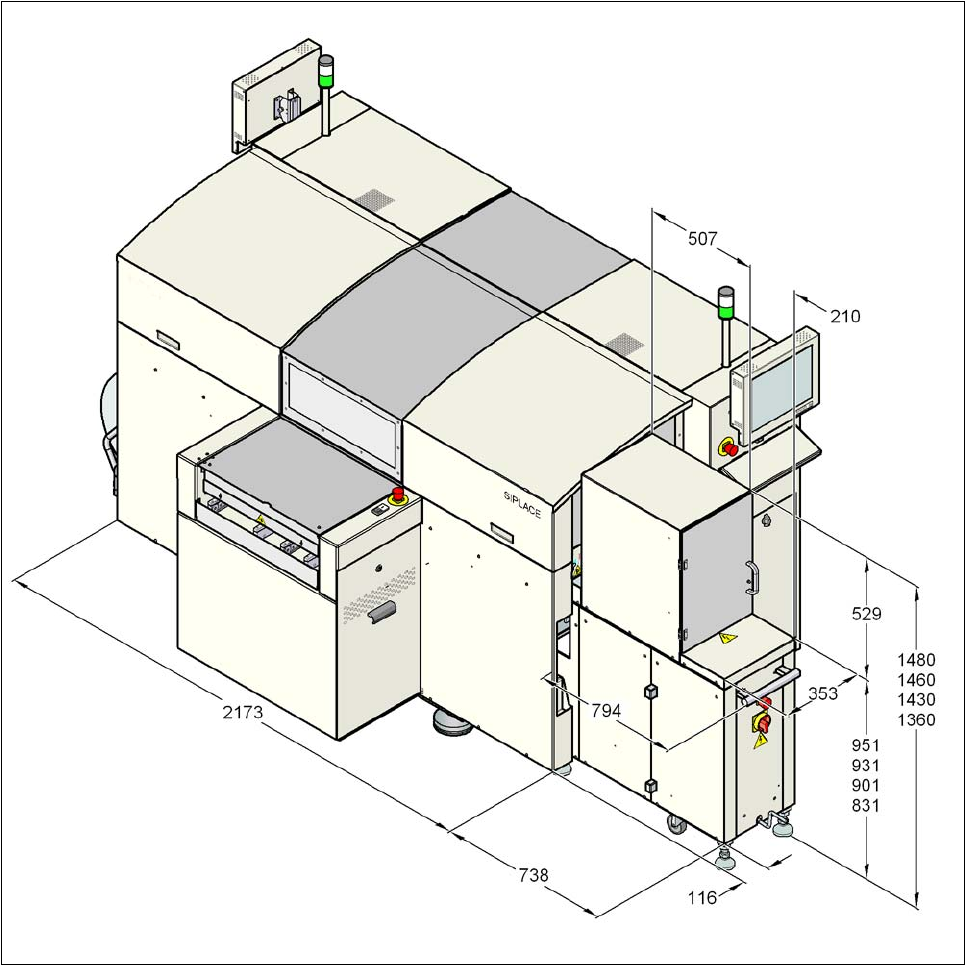

Fig. 6.2 - 1 Dimensions of the D1 machine with WPC
User Manual SIPLACE D1/D2 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.2 Waffle-pack changer (WPC)
283
6.2.6 Controls
6

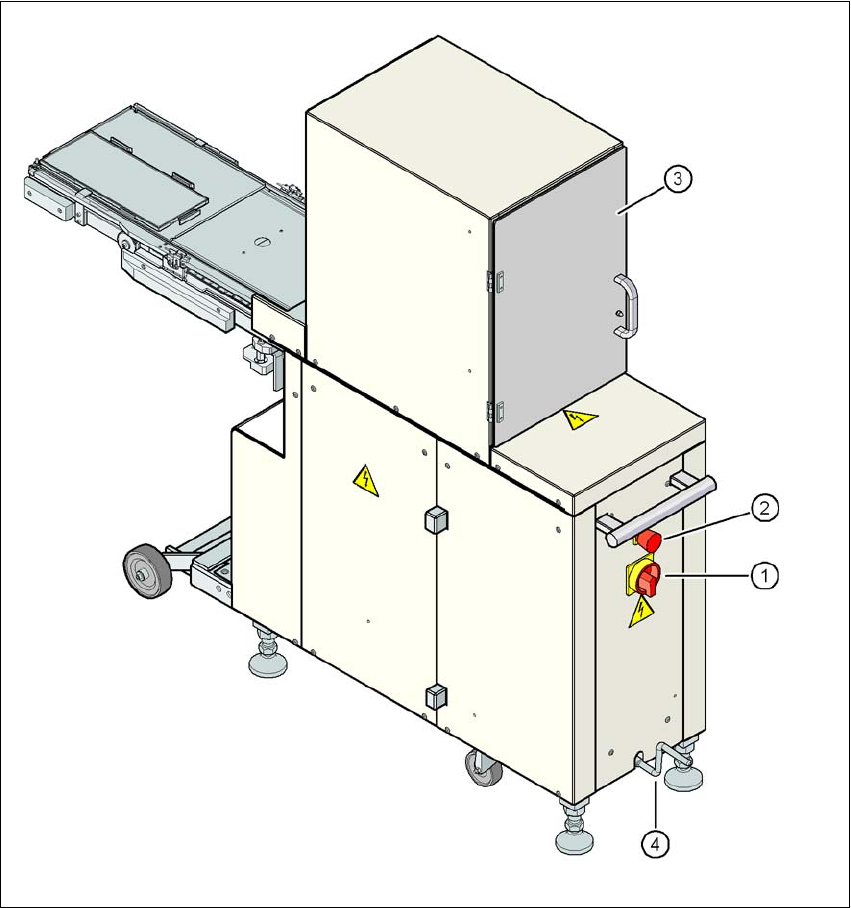

Fig. 6.2 - 2 WPC - controls
(1) Main power switch
(2) EMERGENCY STOP button
(3) Magazine storage unit
(4) Crank for raising or lowering the chassis
