6 Station extensions User Manual SIPLACE D1/D2 6.16 Coplanarity laser module From software version SR.605.xx 07/2008 EN Edition 306 6.16 Coplanarity laser module Item no. 001 1 9819-xx Coplanarity module D1 6.16.1 Safety…
User Manual SIPLACE D1/D2 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.13 01005 package
305
6.13 01005 package
Item no. 00119920-xx 01005 package for D4/D2/D1
The SIPLACE D1 and D2 machines are already prepared to place 01005 components as stan-
dard. In order to process 01005 components one simply needs upgrading of the 12-segment Col-
lect&Place head. The retrofitting package contains the following parts:
– CO camera, C&P, type 38, 16 x 16, digital Item no. 03051870-xx, 1x
– A type 12 sleeve complete, 270°-sub-division Item no. 03054107-xx, 3x
– Nozzle, type 905 ESD, 1 x 0.15 Item no. 03057320-xx, 12x
– Assembly instructions 01005 package for D4/D2/D1
German and English Item no. 00195398-xx, 1x
6.14 0201 package
Item no. 00119720-xx 0201 package for C&P12, X/D series
We can supply the 0201 package for processing 0201 components with the 12-segment Col-
lect&Place head. This contains:
– C&P component camera (type 29), digital Item no. 00119779, 1x
– Component sensor for the 12-segment C&P head Item no. 00118021, 1x
– Nozzle, type 706/906 Vectra ceramic Item no. 00345031, 12x
6.15 Single head configuration on the D1 machine
The following extension kits are available for configuring the SIPLACE D1 machines with only one
placement head:
Item no. 00119862-xx Extension kit P&P for D1 Single
Item no. 00119863-xx Extension kit C&P6 for D1 Single
Item no. 00119864-xx Extension kit C&P12 for D1 Single
The extension kits include servo amplifier for the head axes and the cable set.
6 Station extensions User Manual SIPLACE D1/D2
6.16 Coplanarity laser module From software version SR.605.xx 07/2008 EN Edition
306
6.16 Coplanarity laser module
Item no. 00119819-xx Coplanarity module D1
6.16.1 Safety instructions
6.16.1.1 Safety instructions for the sensor of the coplanarity module
The sensor works with a semiconductor laser of wave length 670 nm (visible/red).
The maximum optical output is ≤ 1 mW.
The sensor is classified as laser class 2.
– When operating the sensor, always follow the relevant regulations of VDE 0837 concerning
"Radiation safety for laser equipment" and German accident prevention regulation entitled
"Laser radiation" (BGV B2).
– Also follow the accident prevention regulations applicable in your country.
The following information plates are attached to the front and back of the sensor housing:
6
Fig. 6.16 - 1 Identification of laser class 2 for the sensor
The working laser is signaled by an LED (see Section 6.16.6).
NEVER look directly into the laser beam, despite the low laser output. The beam is visible, so the
eyes will be protected by the natural eyelid-closing reflex.
WARNING 6
Only authorized personnel may open the housing of the optical sensor.
For repair and servicing, always return the sensors to SIPLACE Company.
LASER RADIATION
DO NOT LOOK INTO BEAM
LASER CLASS 2
User Manual SIPLACE D1/D2 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.16 Coplanarity laser module
307
6

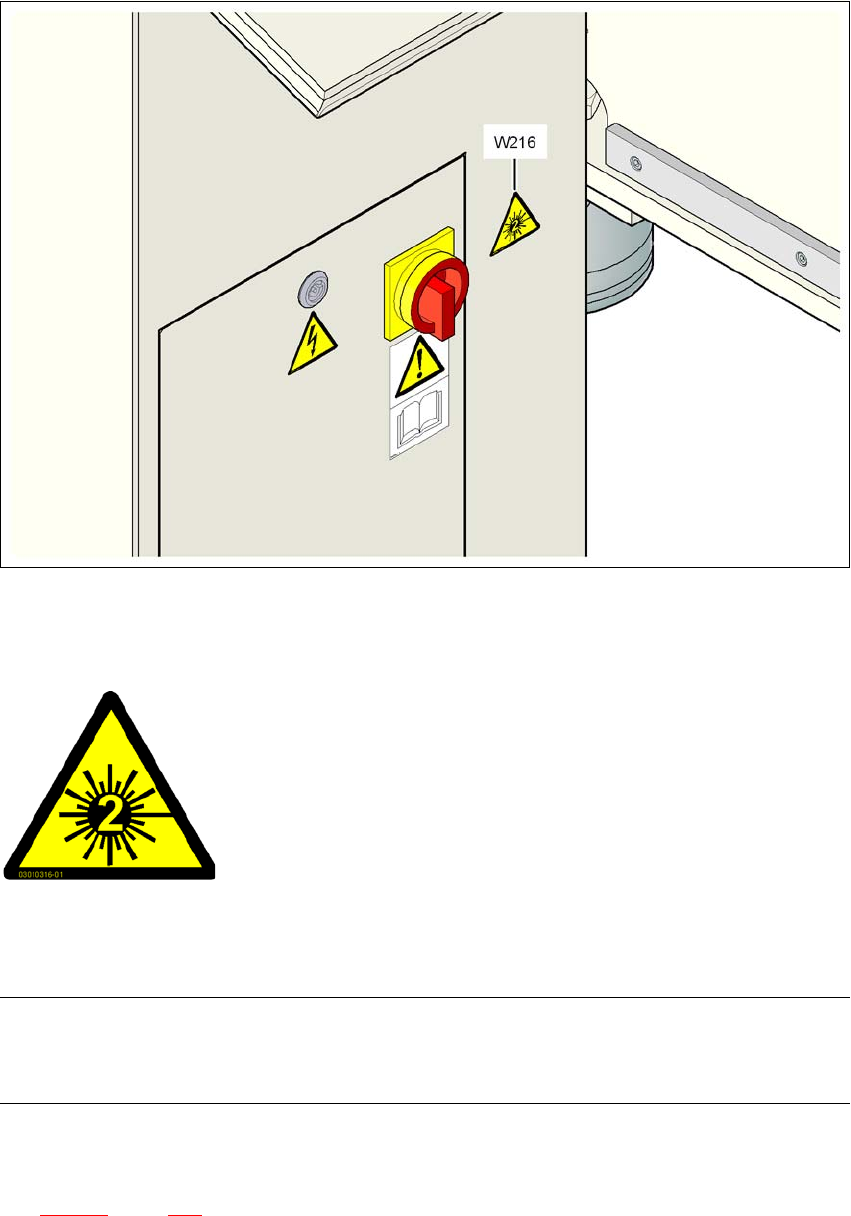

Fig. 6.16 - 2 Warning label W216 beside the main switch
6.16.1.2 Identify machine with warning label W216
6
Warning label W216 "Laser class 2" on the cover beside the main switch,
item no. 03010316-01 (number per machine: 1)
PLEASE NOTE 6
When the coplanarity laser module is fitted, the machine must be classified as laser class 2. The
laser module is not integrated into the EMERGENCY STOP circuit.
→ Identify the machine with warning sign W216 "Laser class 2", item no. 03010316-xx.
→ Stick warning label W216 beside the main power switch on the cover (see Pos. W216 in Fig.
6.16 - 2
, page 307).
6
6
6
6
6
6
LASER RADIATION!
Do not look into beam
Laser class 2
