6.16.5 Position of the coplanarity laser module on the D1 machine
6

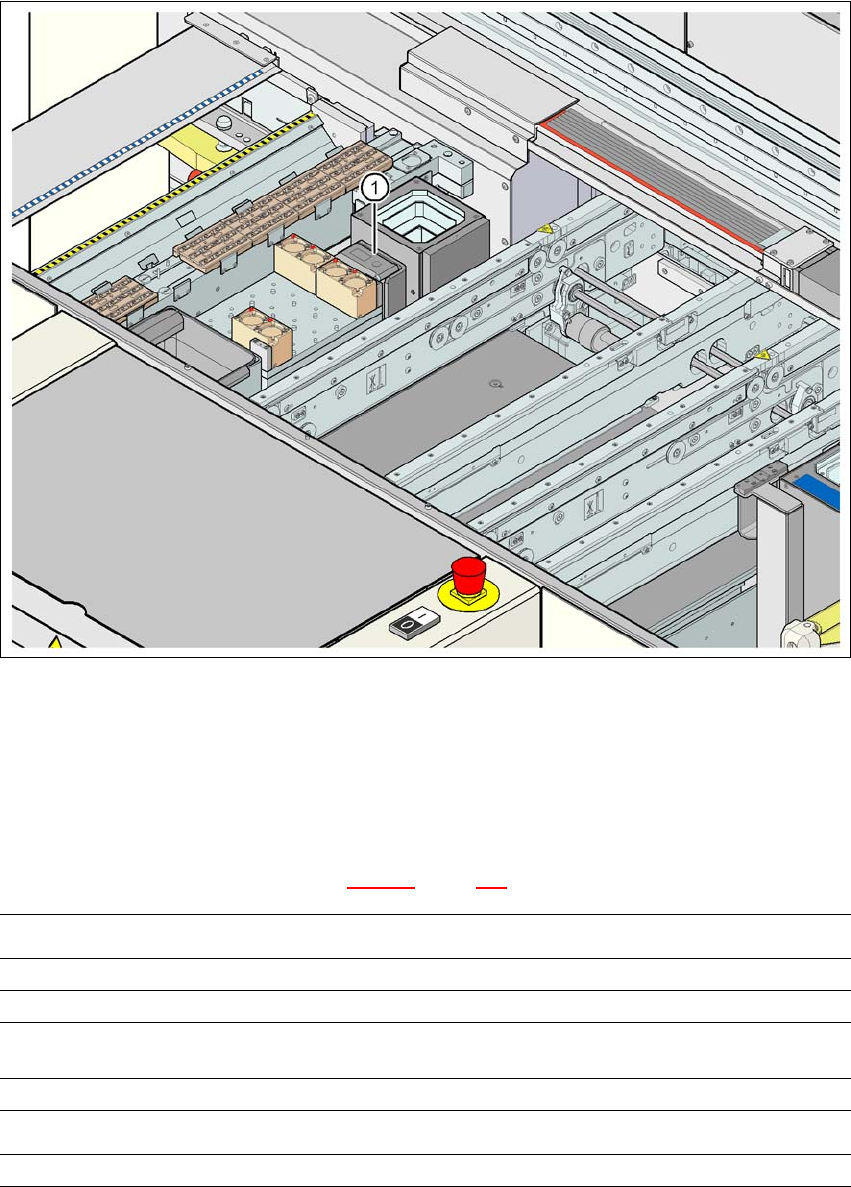

Fig. 6.16 - 4 Position of the coplanarity laser module on the D1 machine
(1) Coplanarity laser module
6.16.6 LED displays on the controller
The statuses of the coplanarity module are indicated by LEDs. The LEDs can be found at the bot-
tom of the controller (see item 6 in Fig. 6.16 - 5
, page 311).
LED state Status display
Green Test object in measuring range
Yellow Middle of measuring range
Red
Outside the measuring range,
with low reflection
LED Off Laser switched off
LED Power Status display
LED lights up Supply voltage present
User Manual SIPLACE D1/D2 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.16 Coplanarity laser module
311
6

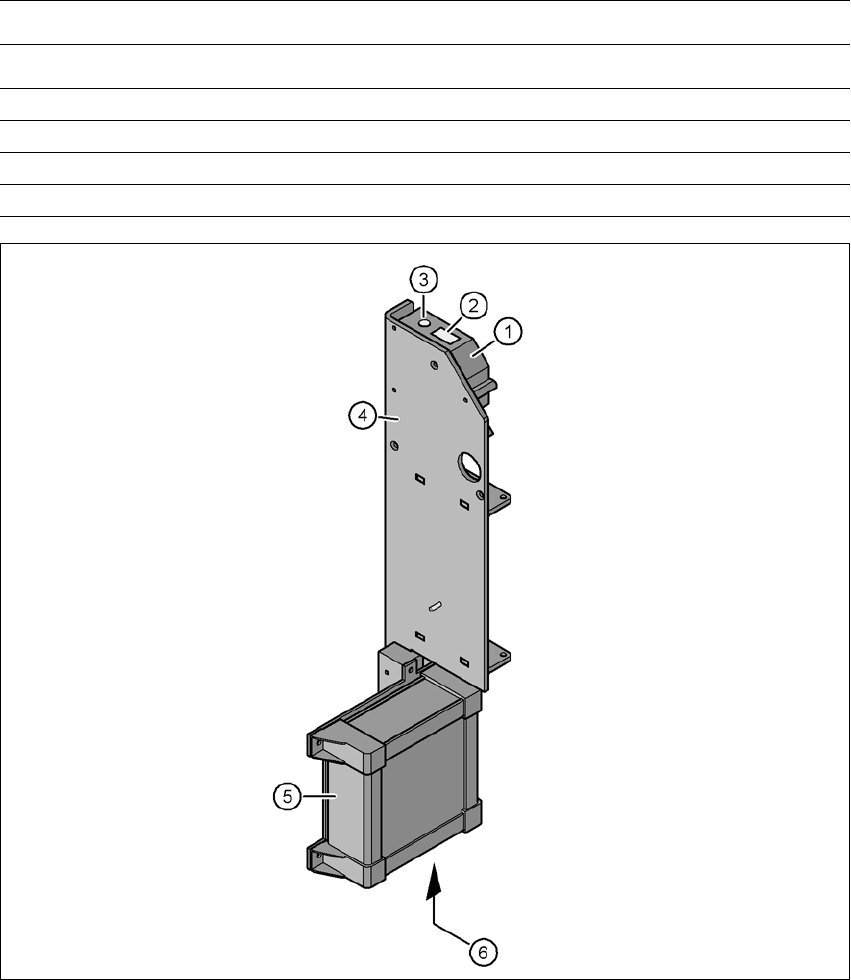

Fig. 6.16 - 5 Coplanarity laser module
(1) Laser sensor
(2) Detector
(3) Laser emitter
(4) Assembly bracket
(5) Controller
(6) LED displays and connections on the controller
LED avg avg1 avg2
Off Off No averaging
Red Off Averaging 1
Off Red Averaging 2
Red Red Averaging 3
LED state Status display
6 Station extensions User Manual SIPLACE D1/D2
6.17 Vacuum pump From software version SR.605.xx 07/2008 EN Edition
312
6.17 Vacuum pump
Item no. 00119017-xx Vacuum pump
Item no. 00119899-xx Connection kit for vacuum pump D1/D2
Every Collect&Place head has a separate vacuum generator that supplies the holding and place-
ment circuit with the vacuum that it needs. The vacuum generator works on the Venturi principle.
The D2 machine's compressed air consumption is 485 Nl/min, which means that the compressed
air supply must be dimensioned accordingly. If the owner does not have sufficient capacity locally,
the associated investment costs would be high, so we supply a vacuum pump that will provide the
necessary vacuum.
Other advantages of using the vacuum pump are:
– It roughly halves the machine's compressed air consumption.
– It reduces the input pressure.
– The machine can be easily integrated into existing lines.
– The ongoing operating costs reduce according to the energy costs.
The vacuum pump is maintenance-free and 100% oil-free. They have sufficient capacity to supply
the holding circuits of the Collect&Place heads.
Placement machine
a
Compressed air consumption of the machine
a) Under normal atmospheric conditions at 20°C and 1013 hPa
SIPLACE D1
Without vacuum pump
With vacuum pump
345 st. l/min (C&P/P&P)
205 st. l/min (C&P/P&P)
SIPLACE D2
Without vacuum pump
With vacuum pump
485 st. l/min (2 x C&P)
205 st. l/min (2 x C&P)
