4 Setting up and commissioning User Manual SIPLACE D1/D2
4.2 Infrastructure at the installation location From software version SR.605.xx 07/2008 EN Edition
200
4.2.3.6 Checking the inrush current limitation jumpers
The inrush current limitation must be configured in relation to the supply voltage. This is done us-
ing wire jumpers on the inrush current limitation board (item 1 in Fig. 4.2 - 7
).
4

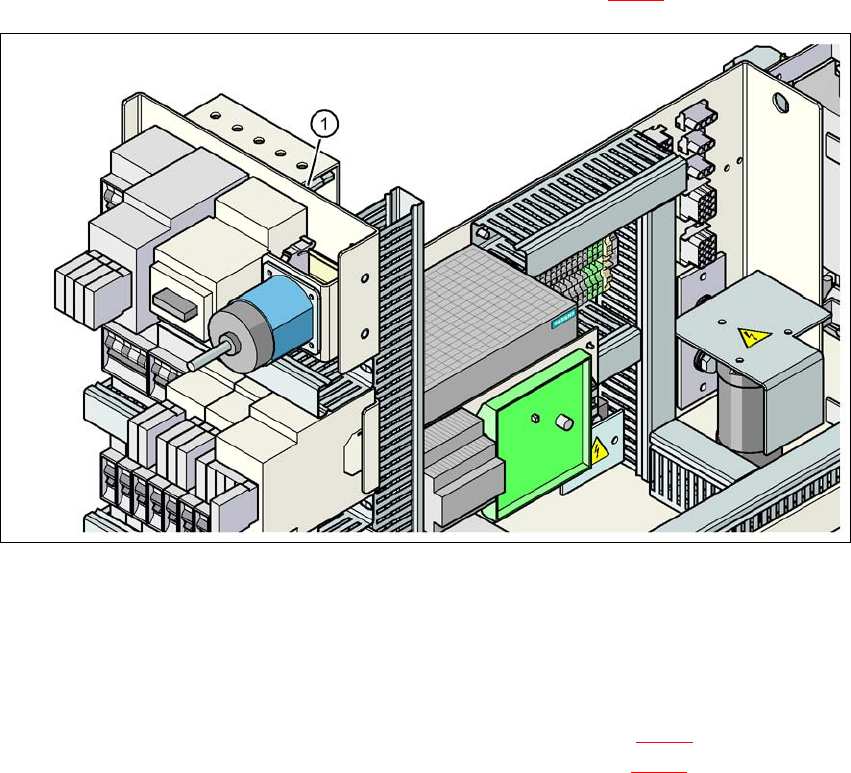

Fig. 4.2 - 7 Position of the board and connectors for the inrush current limitation
(1) Inrush current limitation board
→ Check the jumper assignment and correct if necessary.
Supply voltage 3 x 200 VAC / 3 x 208 VAC / 3 x 230 VAC (see Fig. 4.2 - 8
)
Supply voltage 3 x 380 VAC / 3 x 400 VAC / 3 x 415 VAC (see Fig. 4.2 - 9
) 4
User Manual SIPLACE D1/D2 4 Setting up and commissioning
From software version SR.605.xx 07/2008 EN Edition 4.2 Infrastructure at the installation location
201
4
Fig. 4.2 - 8 Inrush current limitation - connections and jumpers at 3 x 200 VAC / 3 x 208 VAC / 3 x 230 VAC
4
Fig. 4.2 - 9 Inrush current limitation - connections and jumpers at 3 x 380 VAC / 3 x 400 VAC / 3 x 415 VAC
3 x 200 VAC / 3 x 208 VAC / 3 x 230
3 x 380 VAC / 3 x 400 VAC / 3 x 415
4 Setting up and commissioning User Manual SIPLACE D1/D2
4.2 Infrastructure at the installation location From software version SR.605.xx 07/2008 EN Edition
202
4.2.4 Interfaces
4
Fig. 4.2 - 10 Interfaces
4
(1) Conveyor control with Siemens conveyor interface
(2) PC and LAN connection in the "PCB input" attachment
(T) PCB transport direction
