2.8 Disabling the compressed air supply and discharging the pressure From software version SR.605.xx 07/2008 EN Edition
84
2.8 Disabling the compressed air supply and discharg-
ing the pressure
The compressed air working pressure of the machine is set to 0.52 ± 0.01 MPa (5.2 ± 0.1 bar).
The position of the compressed air unit is indicated by Fig. 2.8 - 1
, page 85. The compressed air
supply to the machine can be interrupted using the shutoff valve (item 1 in Fig. 2.8 - 1
, page 85).
→ Use the machine key to release the cover lock.
→ Lift off the cover (see Fig. 2.8 - 1
, page 85).
→ Turn the lever on the shutoff valve (item 1 in Fig. 2.8 - 1
, page 85) from the vertical to the
horizontal position.
→ Watch the working pressure gauge (item 4 in Fig. 2.8 - 1
, page 85). When the machine is
switched on, the pressure discharges to 0 MPa (0 bar) within 1 minute.
CAUTION
When the machine is switched on, do not use the stop valve to interrupt the compressed air sup-
ply for more than 30 minutes. If you need to shut off the pneumatic system for longer in order to
carry out preventive maintenance or servicing work, you must switch the machine off at the main
switch and disconnect it from the power supply.
User Manual SIPLACE D1/D2 2 Operational safety
From software version SR.605.xx 07/2008 EN Edition 2.8 Disabling the compressed air supply and discharging the pressure
85
Fig. 2.8 - 1 Compressed air unit on the D1 and D2 machines
(1) Stop valve
(2) Compressed air connection:
Desired pressure: 0.55 - 1.0 MPa (5.5 - 10 bar)
(3) Compressed air filter
(4) Manometer for the gantry distributor supply pressure
Desired pressure: 0.52 ± 0.01 MPa, 5.2 ± 0.1 bar (display range 0 - 1.2 MPa, 0 - 12 bar)
(5) Manometer for the bulk case feeder modules supply pressure
Desired pressure: 0.25 ± 0.02 MPa, 2.5 ± 0.2 bar (display range 0 - 0.6 MPa, 0 - 6 bar)
WARNING
NEVER detach compressed air lines while they are still pressurized. Risk of injury. 2
2 Operational safety User Manual SIPLACE D1/D2
2.9 Energy state of the machine after switching off at the main power switch From software version SR.605.xx 07/2008 EN Edition
86
2.9 Energy state of the machine after switching off at
the main power switch
2
WARNING
The machine is supplied with 3 x 200 VAC, 3 x 208 VAC, 3 x 230 VAC, 3 x 380 VAC, 3 x 400 VAC
or 3 x 415 VAC ± 5 %, 50/60 Hz mains voltage. This means that some parts of the system carry
potentially lethal voltages - even when switched off at the main power switch. Incorrect handling
of the machine can therefore result in death or severe injury or considerable damage to equip-
ment. 2
→ Always follow the applicable accident prevention and DIN regulations (particularly DIN EN 60
204, part 1).
→ The guard over the power supply unit must ONLY be opened by appropriately qualified and
trained personnel.
2

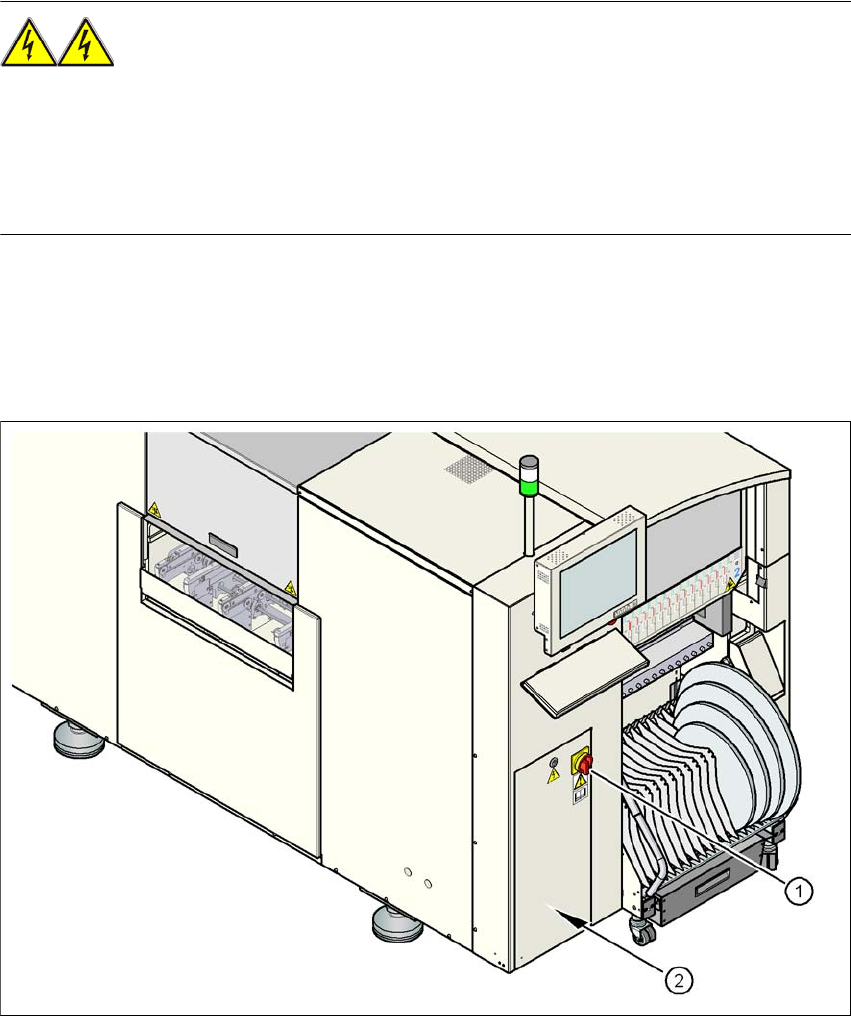

Fig. 2.9 - 1 Position of main power switch and main power supply on the machine
(1) main power switch S1
(2) Power supply unit behind the cover
