2 Operational safety User Manual SIPLACE D1/D2
2.3 Laser classification From software version SR.605.xx 07/2008 EN Edition
56
2.3 Laser classification
2.3.1 Laser class 1
2.3.1.1 Classification of the whole machine
2
PLEASE NOTE: 2
Modules in laser classes 1 and 1M are not identified.
2.3.1.2 Classification of the camera systems
2
2.3.2 Laser class 1M
Do not look directly at this with optical instruments!
2
2
All installed camera systems and the whole machine when ready
for operation are assigned to laser class 1.
The laser classes are determined according to DIN EN 60825-
1:2001
2
The following camera systems are assigned to laser class 1:
– PCB camera, type 24, digital
– Component cameras for the SIPLACE Pick&Place head:
– Component camera, stationary, P&P, type 36, 32 x 32, digital
– Component camera, stationary, P&P, type 33, 55 x 45, digital
– Component camera, stationary, P&P, type 25, 16 x 16, digital
2
The following camera systems are assigned to laser class 1M:
– C&P CO camera, type 28, 18 x 18 on the 12-segment Collect&Place head
– C&P CO camera, type 29, 27 x 27 on the 6/12-segment Collect&Place head
– C&P CO camera, type 38, 16 x 16 on the 12-segment Collect&Place head
User Manual SIPLACE D1/D2 2 Operational safety
From software version SR.605.xx 07/2008 EN Edition 2.4 Safety instructions for transporting the machine
57
2.3.3 Laser class 2
The following modules are assigned to laser class 2:
– Laser light barrier, placement area 1 in the PCB conveyor
– Laser light barrier, placement area 2 in the PCB conveyor
– PCB barcode scanner
– Coplanarity laser module
2
2.4 Safety instructions for transporting the machine
2

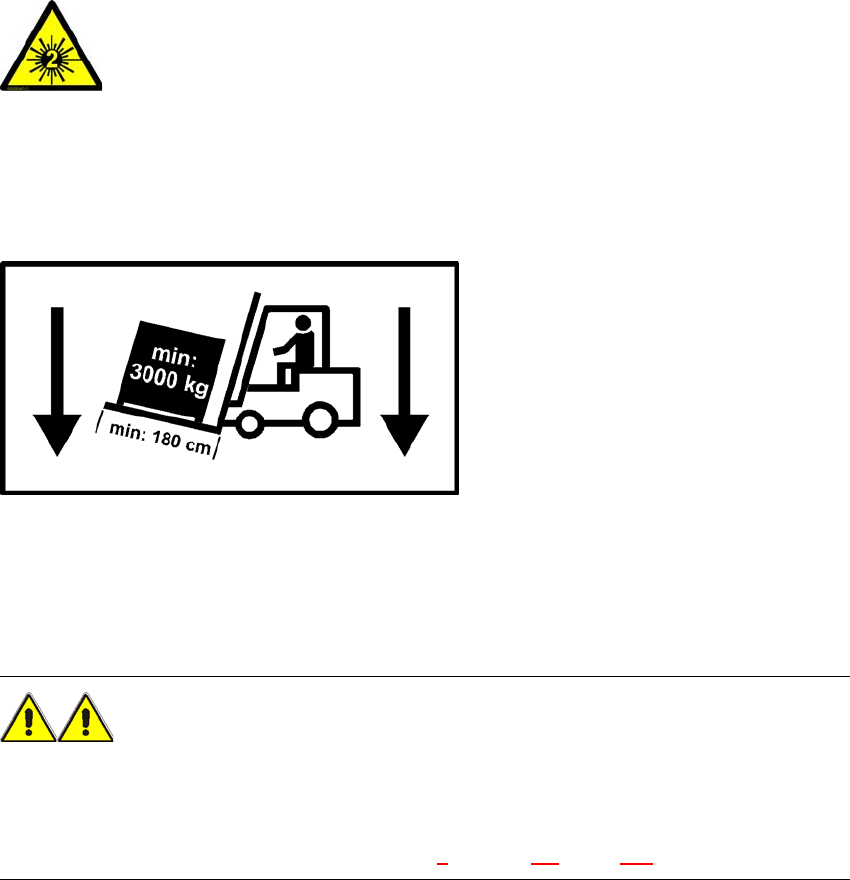

Use a fork-lift truck with the following specification to carry the machine:
Fork length: min. 1800 mm
Carrying power: min. 3000 kg
Clear width between forks: min. 350 mm 2
WARNING
RISK OF TIPPING 2
If the required specification cannot be applied to the fork-lift, there is a risk that the fork-lift will tip
over when carrying the machine.
Transporting the machine is described in chapter 4, Section 4.1, page 185.
2
Laser radiation
Do not look into beam!
2 Operational safety User Manual SIPLACE D1/D2
2.5 Safety instructions for operating the machine From software version SR.605.xx 07/2008 EN Edition
58
2.5 Safety instructions for operating the machine
2.5.1 Safety instructions for closing the protective covers
To prevent any risk of injury when the protective covers on the machine are closed, the owner
must instruct his operators to use the protective covers exactly as specified in the following in-
structions.
CAUTION
RISK OF CRUSHING HANDS
IF THE PROTECTIVE COVERS ARE NOT CLOSED CORRECTLY 2
2
Fig. 2.5 - 1 Safety instructions for closing the protective covers
(1) Protective covers
(2) Recessed grips
