User Manual SIPLACE D1/D2 4 Setting up and commissioning From software version SR.605.xx 07/2008 EN Edition 4.3 Setting up the machine 205 4.3.4 Presetting the PCB conveyor height → Push the forks of the fork-lift under …
4 Setting up and commissioning User Manual SIPLACE D1/D2
4.3 Setting up the machine From software version SR.605.xx 07/2008 EN Edition
204
4.3.3 Tools and equipment
You will need the following tools and equipment to adjust the height of your machine:
– Single-ended spanner, size 65, item no. 00353827-01
Size 65 for the hexagon lock nut M24 on the machine foot 4
– Allen key, size 10, item no. 00373926-01
for hexagon socket head screws M12 for fixing the spacers for the machine feet 4
– Fork-lift
Fork length: min. 1800 mm 4
Carrying power: min. 3000 kg 4
Width between forks: see Fig. 4.3 - 1
, page 205 4
– Spirit level: Accuracy 0.02 mm/m
– Air cushion transport system: SIPLACE HSxx, item no. 00119002-xx
User Manual SIPLACE D1/D2 4 Setting up and commissioning
From software version SR.605.xx 07/2008 EN Edition 4.3 Setting up the machine
205
4.3.4 Presetting the PCB conveyor height
→ Push the forks of the fork-lift under the machine, as shown in Fig. 4.3 - 1.
4

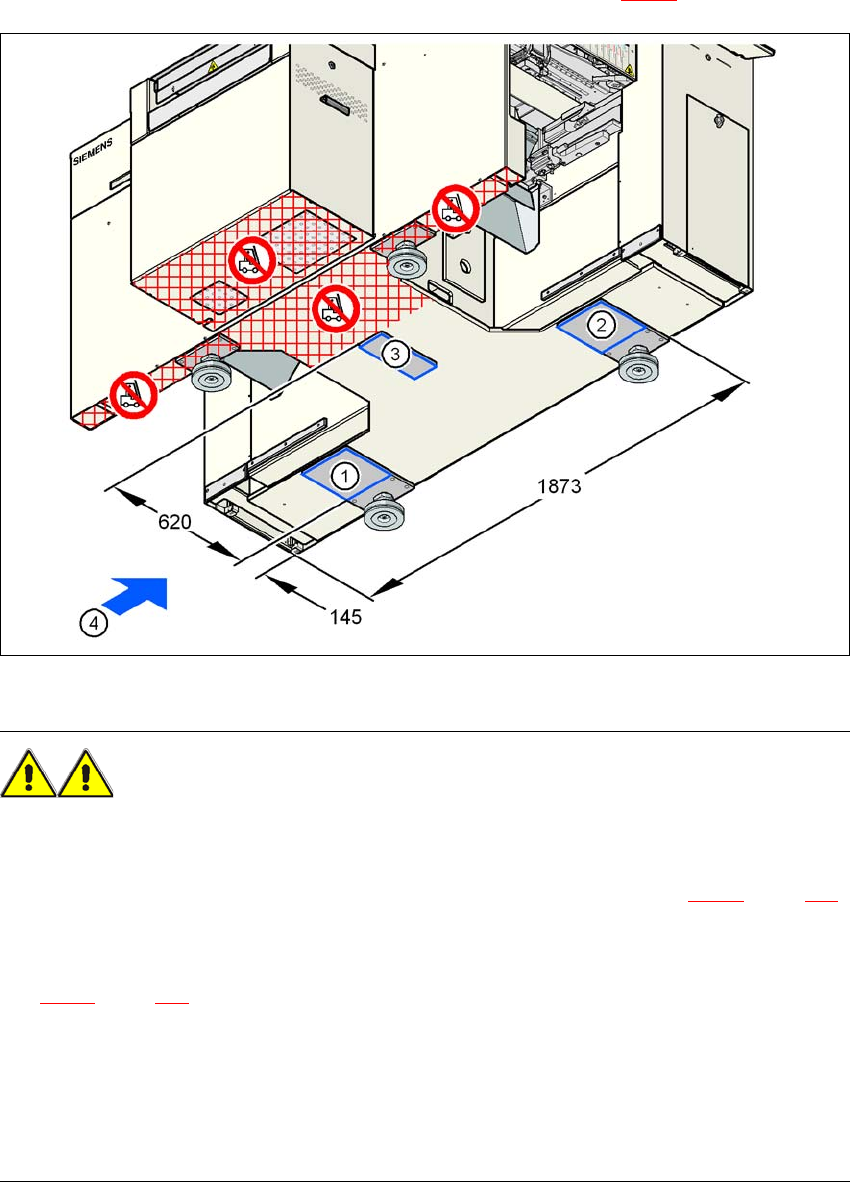

Fig. 4.3 - 1 Machine's contact surface for the fork-lift - dimensions in millimeters
WARNING 4
Please note the following points before you raise the machine in order to avoid irreversible dam-
age to the machine:
→ Attach the fork-lift on the power supply side of the machine (item 4 in Fig. 4.3 - 1
, page 205).
→ Make sure that the machine attachment surfaces 1, 2 and 3 lie evenly on the fork (see Fig.
4.3 - 1
, page 205). Use wooden planks of appropriate length for support, if the fork is shorter.
→ Make sure that the forks are evenly loaded when you lift the machine. A firm support between
the forks and machine will prevent the machine tilting when it is raised. This will also prevent
a one-sided load on the machine feet, which would deform the fixing of the machine feet. We
recommend that a second person watch the machine as it is raised, and make sure that the
machine does not tip to one side when lifted with the fork-lift.
4 Setting up and commissioning User Manual SIPLACE D1/D2
4.3 Setting up the machine From software version SR.605.xx 07/2008 EN Edition
206
→ With the fork-lift, raise the machine approximately 35 cm.
The machine stands on 4 machine feet (item 1 in Fig. 4.3 - 2
, page 206) with 4 spacers (item 2 in
Fig. 4.3 - 2
, page 206) for adjusting the height, if necessary.
4

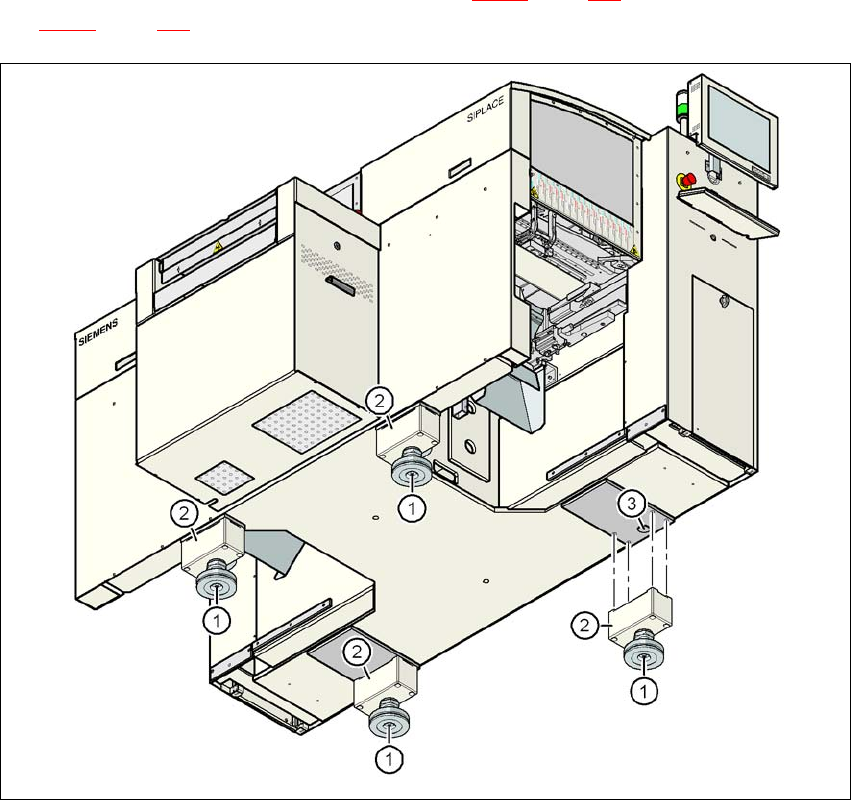

Fig. 4.3 - 2 Machine feet
(1) Machine foot, 4x
(2) Machine foot, 4x
(3) Hole in the machine frame for the machine foot for the 830 mm PCB conveyor height
