3 Technical data for the machine User Manual SIPLACE D1/D2
3.8 PCB conveyor system From software version SR.605.xx 07/2008 EN Edition
134
3.8.7 Configuration options
3.8.7.1 PCB single conveyor
Item no. 00119840-xx D1/D2 modular single conveyor
Item no. 00119626-xx Stationary conveyor side on the right
Item no. 00119628-xx Stationary conveyor side on the left
Item no. 00119912-xx Conveyor height: 900, D1/D2/D3
Item no. 00119913-xx Conveyor height: 930, D1/D2/D3
Item no. 00119914-xx Conveyor height: 950, D1/D2/D3
Item no. 00119092-xx SMEMA adapter box D4/D2/D1
3.8.7.2 Flexible PCB dual conveyor
Item no. 00119842-xx D1/D2 modular dual conveyor
Item no. 00119626-xx Stationary conveyor side on the right
Item no. 00119628-xx Stationary conveyor side on the left
Item no. 00119912-xx Conveyor height: 900, D1/D2/D3
Item no. 00119913-xx Conveyor height: 930, D1/D2/D3
Item no. 00119914-xx Conveyor height: 950, D1/D2/D3
Item no. 00119092-xx SMEMA adapter box D4/D2/D1
3.8.8 Definition of the PCB warpage
3.8.8.1 PCB warpage on the conveyor

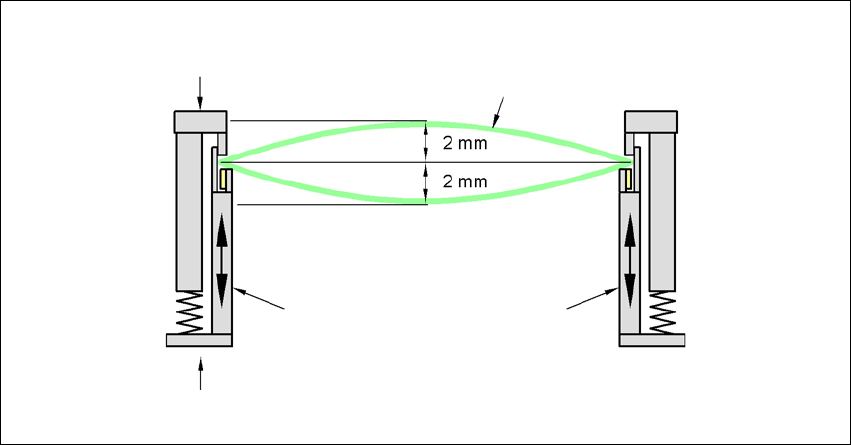

PCB warpage across the direction of travel max. 1% of the PCB diagonal, but not exceeding 2 mm
3
Fixed clamped edge
Movable clamping device
Printed circuit board
Conveyor rail
User Manual SIPLACE D1/D2 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.8 PCB conveyor system
135
PCB warpage in direction of travel + PCB thickness < 5.5 mm
3
3
3.8.8.2 PCB warpage during placement
A warpage of 2 mm can lead to problems focusing on local fiducials and ink spots in the middle of
the PCB. The digital camera's focus is 2 mm. When all the tolerances are taken into account, this
value is reduced to 1.5 mm. Also note that the component height is reduced by the warpage.
3
3
Fixed clamped edge
Conveyor belt
Printed circuit board
PCB transport direc-
tion
5.5 mm
Movable clamping device
Fixed clamped edge
Printed circuit board
Conveyor rail
3 Technical data for the machine User Manual SIPLACE D1/D2
3.8 PCB conveyor system From software version SR.605.xx 07/2008 EN Edition
136
PCB warpage down, max. 0.5 mm
3
→ Use magnetic pin supports to achieve this value.
Printed circuit board
Magnetic pin
support
Movable clamping device
Fixed clamped edge
Conveyor rail
0.5 mm
