3.6.1.3 Operation with a vacuum pump
The 12-segment Collect&Place head can be converted for operation with a vacuum pump for
more efficient vacuum generation (see Section 6.17
, page 312).
Programmed power stage
1
2
3
4
5
Programmed set-down force [N]
2.4 ± 0.5
2.4 ± 0.5
3 + 1
4 + 1
5 + 1
Nozzle types 9xx 9xx 9xx
X/Y accuracy
d
± 50 μm/3σ, ± 67 μm/4σ ± 50 μm/3σ, ± 67 μm/4σ ± 50 µm/3σ, ± 67 µm/4σ
Angular accuracy ± 0.53°/3σ, ± 0.71°/4σ ± 0.53°/3σ, ± 0.71°/4σ ± 0.53°/3σ, ± 0.71°/4σ
Component range 98% 98.5% 96%
Component camera type 28 29 38
Illumination levels 5 5 5
Possible illumination level
setting
256
5
256
5
256
5
a) Please note that the component range that can be placed is also affected by the pad geometry, the cus-
tomer-specific standards and the packaging tolerances.
b) With 0201 package
c) With 01005 package
d) The accuracy value was measured using the vendor-neutral IPC standard
User Manual SIPLACE D1/D2 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.6 Placement head
115
3.6.2 6-segment Collect&Place head for high-speed IC placement
Item no. 00119875-xx SIPLACE 6 C&P head, D-series
3

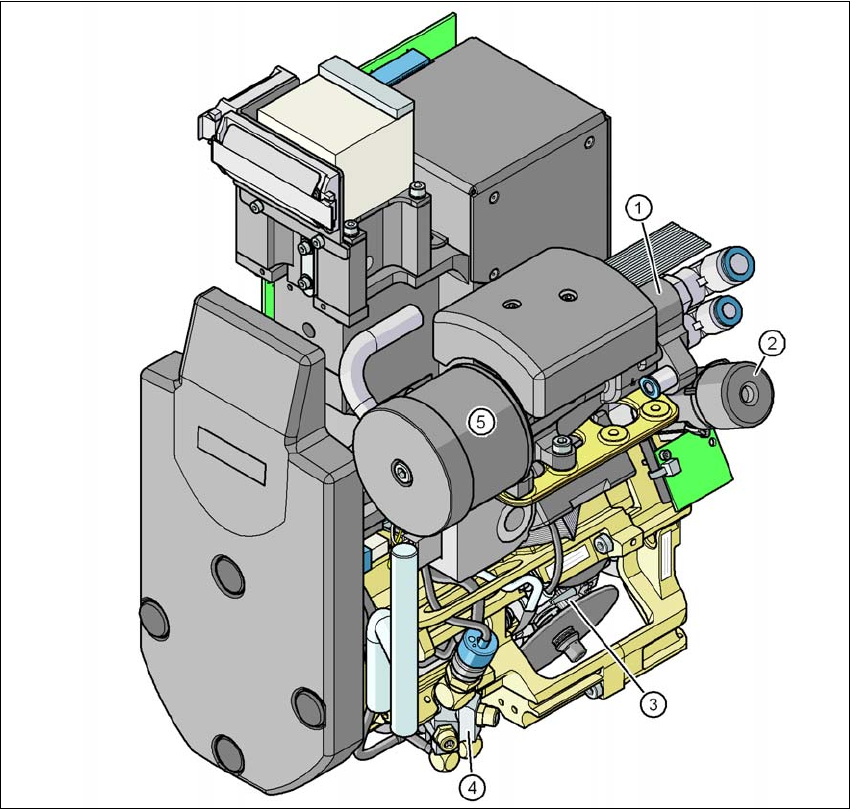

Fig. 3.6 - 3 6-segment Collect&Place head - Function groups, part 1
(1) Vacuum generator
(2) Turning station, DP axis
(3) Star with 6 sleeves - star axis
(4) Forced air valve
(5) Silencer
3 Technical data for the machine User Manual SIPLACE D1/D2
3.6 Placement head From software version SR.605.xx 07/2008 EN Edition
116
3
Fig. 3.6 - 4 6-segment Collect&Place head - Function groups, part 2
3
(1) Intermediate distributor board, beneath the cover
(2) Star drive - DR motor
(3) Z axis motor
(4) Valve adjustment drive
(5) C&P component camera, type 29, 27 x 27, digital
