4 Setting up and commissioning User Manual SIPLACE D1/D2 4.4 Adapting the component trolley to the PCB conveyor height From software ver sion SR.605.xx 07/2008 EN Edition 218 4 Fig. 4.4 - 1 Position of the eye-bolt on th…
User Manual SIPLACE D1/D2 4 Setting up and commissioning
From software version SR.605.xx 07/2008 EN Edition 4.4 Adapting the component trolley to the PCB conveyor height
217
→ Screw the eye-bolt into the M12 hole (item 1 in Fig. 4.4 - 1, page 218) in the component trolley
table bed.
→ Attach the hooks of the lifting device to the eye-bolt (item 2 in Fig. 4.4 - 1
, page 218).
→ Tighten the cable of the lifting device.
→ Loosen the 8 hexagon socket head screws, M6x12 (item 4 in Fig. 4.4 - 1
, page 218).
→ Raise or lower the component trolley table to the desired height,
→ Check the preset height with reference to the position of the check hole. The check hole for
the selected height must not be covered by the column.
→ If necessary, correct the height so that the holes for the fixing screws in the bridge are aligned
with the threaded holes in the vertical profiled beams (see figures on page 219
, 221, 223 and
225
.
→ Fix the bridge (item 5) to the vertical profiled beams using the 8 hexagon socket head screws
and washers. The positions of the hexagon socket head screws are shown in figures 4.4 - 2
to 4.4 - 9
.
PCB conveyor height Figure Page
830 mm 4.4 - 2
219
900 mm 4.4 - 4 221
930 mm 4.4 - 6 223
950 mm 4.4 - 8 225
4 Setting up and commissioning User Manual SIPLACE D1/D2
4.4 Adapting the component trolley to the PCB conveyor height From software version SR.605.xx 07/2008 EN Edition
218
4

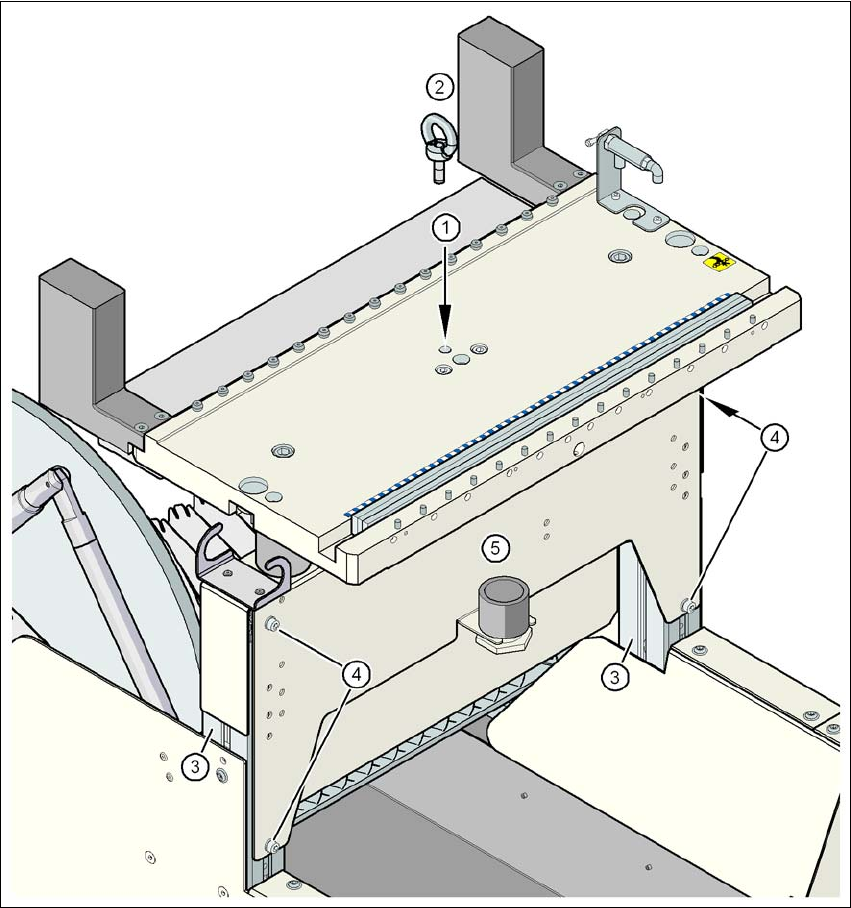

Fig. 4.4 - 1 Position of the eye-bolt on the component trolley
(1) M12 hole for eye-bolt
(2) Eye-bolt, DIN 580 M12-St
(3) Vertical profiled beam
(4) Hexagon socket head screw, M6x12 with washer, 8 x
(5) Jumper
User Manual SIPLACE D1/D2 4 Setting up and commissioning
From software version SR.605.xx 07/2008 EN Edition 4.4 Adapting the component trolley to the PCB conveyor height
219
4.4.4 830 mm PCB conveyor height
4

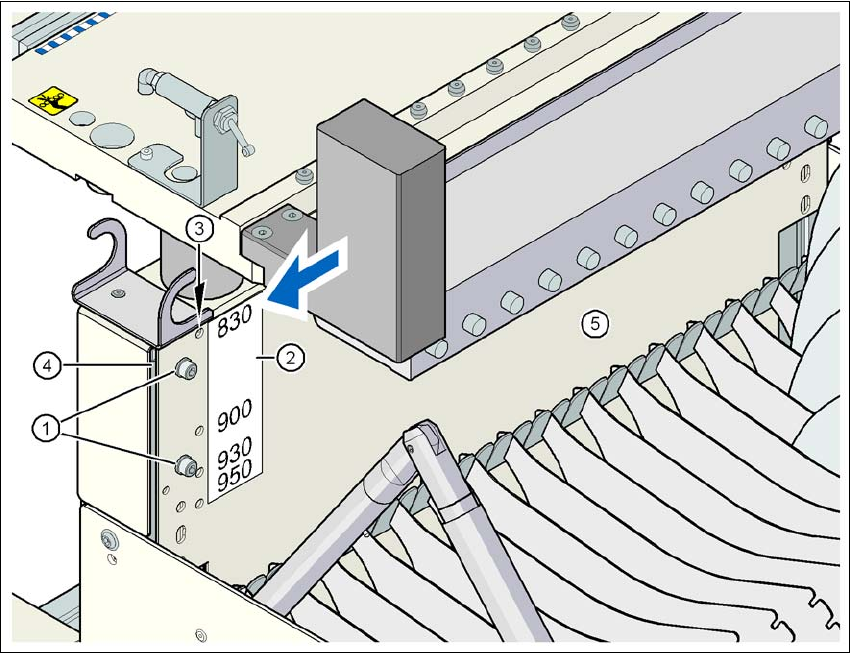

Fig. 4.4 - 2 Component trolley: PCB conveyor height 830 mm - back view, position of the hexagon socket
head screw and check hole
(1) Hexagon socket head screw M6x12 and washer (4x on the rear panel)
(2) Sticker with the heights 830, 900, 930 and 950 mm for the check holes
(3) 4 check holes for checking the preset height. The selected height is preset correctly if the
check hole is not covered by the vertical profiled beam (item 4) (see arrow in the figure)
(4) Vertical profiled beam
(5) Jumper
