User Manual SIPLACE D1/D2 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.1 Nozzle changer
267
6.1.1.7 Changing the magazine
→ To remove the magazine, push the spring hook (item 1 in Fig. 6.1 - 5, page 267) away from
the magazine. Lift the magazine out of the carrier.
6

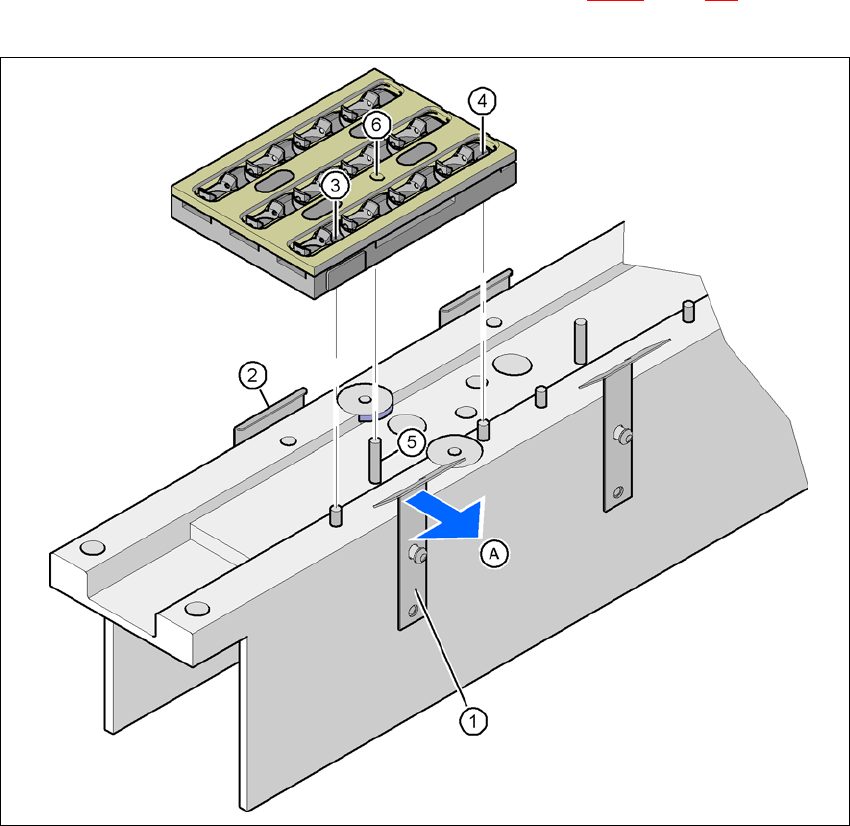

Fig. 6.1 - 5 Changing the magazine
(1) Spring hook
(2) Retaining clamp
(3) Centering hole
(4) Slot
(5) Parallel pin of the slide mechanism
(6) Hole for the parallel pin of the slide mechanism
(A) Push the spring hook away from the magazine
6
6
6 Station extensions User Manual SIPLACE D1/D2
6.1 Nozzle changer From software version SR.605.xx 07/2008 EN Edition
268
PLEASE NOTE 6
Not the following points when you insert the magazine:
→ The centering pins slide into the centering hole (item 3 in Fig. 6.1 - 5
, page 267) and into the
slot (item 4 in Fig. 6.1 - 5
, page 267).
→ The parallel pin of the slide mechanism (item 5 in Fig. 6.1 - 5
, page 267) slides into the hole
(item 6 in Fig. 6.1 - 5, page 267) in the magazine.
→ First place the side of the magazine with the numbered nozzles 1, 2, 3 and 4 on the base.
The retaining clamp (item 2 in Fig. 6.1 - 5
, page 267) must slide into the slot in the magazine.
→ Push the spring hook away from the magazine (item A in Fig. 6.1 - 5
, page 267).
→ Press the magazine so that it lies flat on the base, then release the spring hook (item 1 in Fig.
6.1 - 5
, page 267). The spring hook must latch into place.
6.1.1.8 Position detection
Every magazine of the nozzle changer has a positioning fiducial for position detection.
6

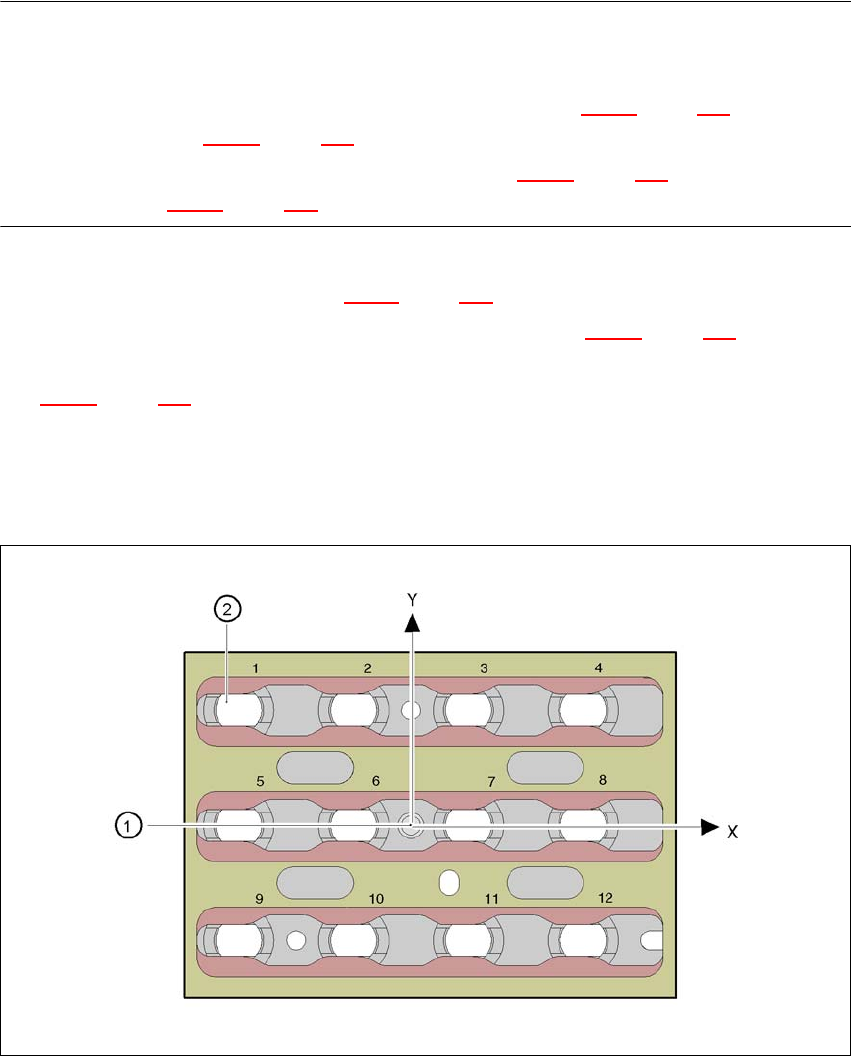

Fig. 6.1 - 6 Nozzle changer - Position detection
(1) Positioning fiducial
(2) Position of the nozzles in the magazine relative to the positioning fiducial
User Manual SIPLACE D1/D2 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.1 Nozzle changer
269
6.1.2 Nozzle changer for the 6-segment Collect&Place head
Item no. 00119866-xx Nozzle changer, 6-segment Collect&Place head, D1/D2
6.1.2.1 Description
This nozzle changer can hold up to 4 magazines, each with 6 nozzle holders. There are two types
of magazine available: magazines for type 8xx nozzles and magazines for type 9xx nozzles. The
magazines are seated on a common support. They are centered using two parallel pins and fixed
in place with clips.
Standard configuration: 3 magazines for type 9xx nozzles
1 magazine for type 8xx nozzles
6

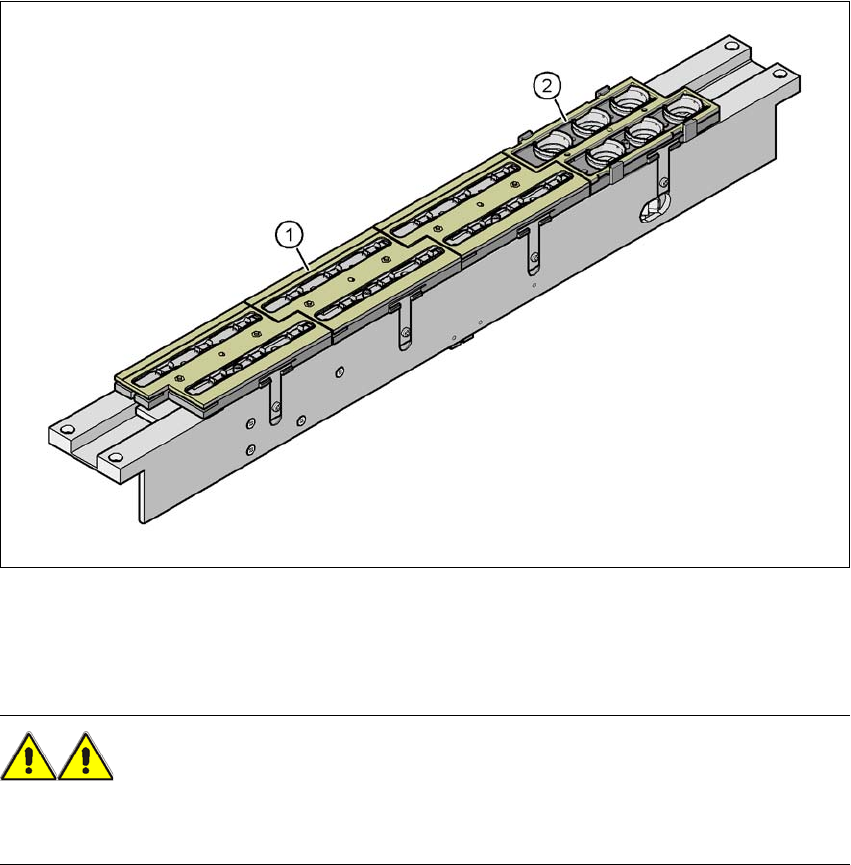

Fig. 6.1 - 7 Nozzle changer for the 6-segment Collect&Place head
(1) Magazine for type 9xx nozzles
(2) Magazine for type 8xx nozzles
WARNING 6
→ Only install the associated nozzle changer for each placement head. There is a risk of head
crashes with mixed configurations.
