→ Push the sleeve (item 1 in Fig. 5.10 - 3) up using both handles and swivel the handle down
(item 2 in Fig. 5.10 - 3
).
5
Fig. 5.10 - 3 Component trolley - swivel handles down
(1) Push sleeve up
(2) Fold handle down
5 Tasks for the operating personnel User Manual SIPLACE D1/D2
5.10 Docking the component trolley in or out From software version SR.605.xx 07/2008 EN Edition
260
User Manual SIPLACE D1/D2 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.1 Nozzle changer
261
6 Station extensions
6.1 Nozzle changer
Nozzle changers can greatly increase the flexibility of the placement heads for processing differ-
ent types of component. If the placement program requires a nozzle change, then the placement
head automatically returns the old nozzle to the nozzle holder and picks up the new nozzle. Noz-
zles that were separated out during the vacuum check can also be quickly changed.
It is significantly more exact and faster to pick up nozzles from a nozzle changer than would be
possible manually. When placing small components, it is essential to minimize the radial eccen-
tricity during nozzle rotation.
6.1.1 Nozzle changer for the 12-segment Collect&Place head
Item no. 00119865-xx Nozzle changer, 12-segment C&P head, D1/D2
6

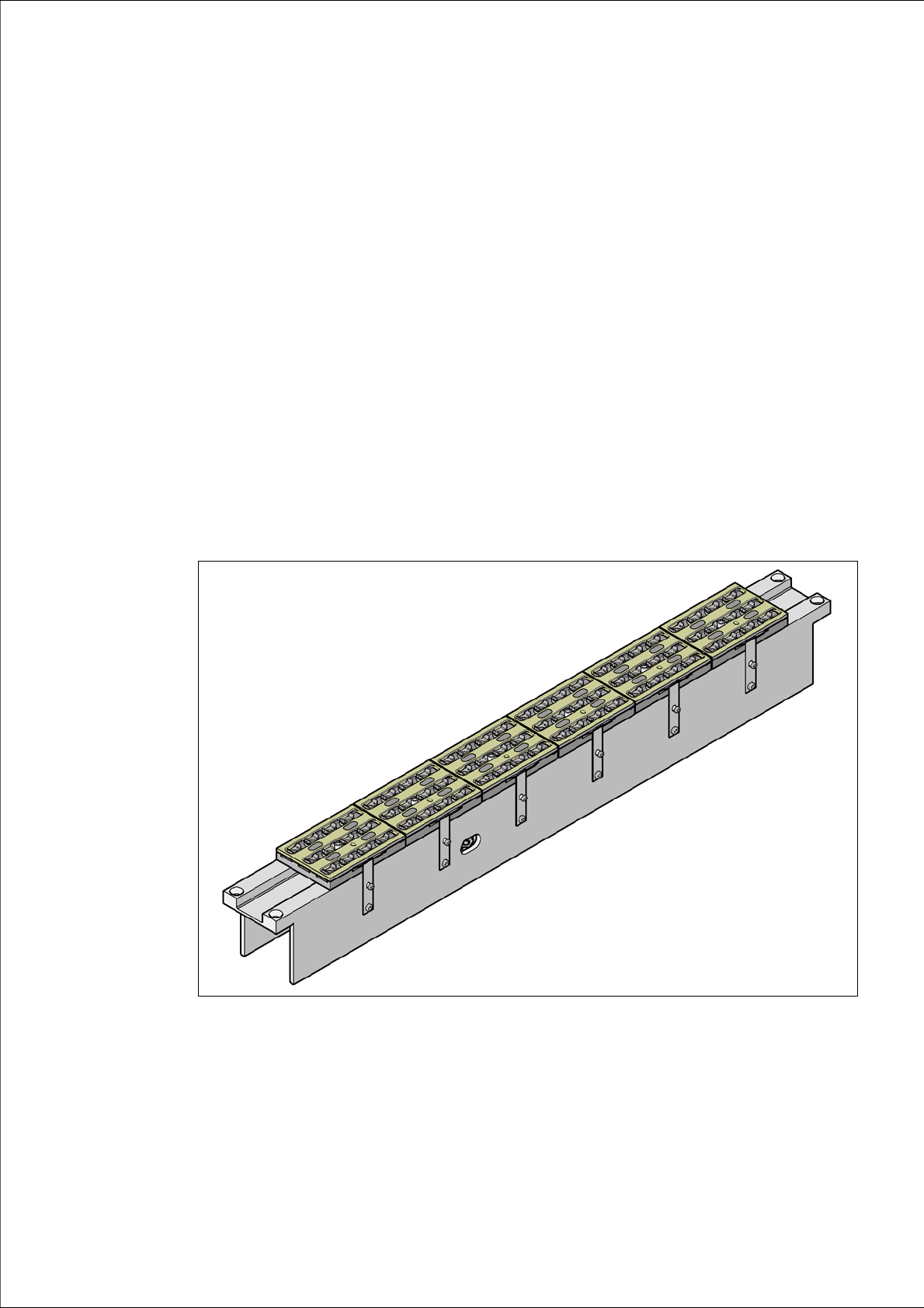

Fig. 6.1 - 1 Nozzle changer for the 12-segment Collect&Place head
