2 Operational safety User Manual SIPLACE D1/D2
2.5 Safety instructions for operating the machine From software version SR.605.xx 07/2008 EN Edition
64
2.5.9 Safety instructions for manually moving the Z axis at the P&P head
CAUTION
RISK OF CRUSHING AT THE P&P HEAD 2
NEVER move the Z axis down with your hand at the buffer of the return unit. The powerful spring
force of the cylinder creates a risk of injury to your fingers due to the buffer springing back. The
same applies inside the TwinHead when the piston rod springs back into its starting position.
2

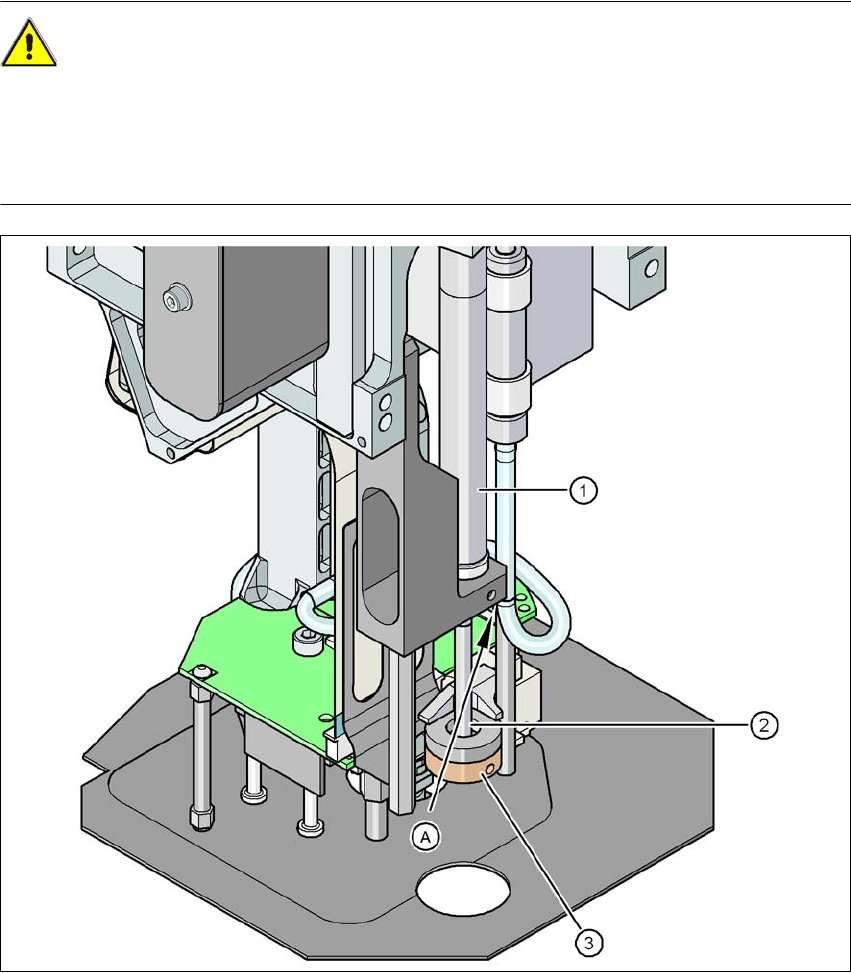

Fig. 2.5 - 5 Risk of crushing from the return unit on the P&P head
(1) Return unit, compressed air cylinder
(2) Piston rod
(3) Buffer of the return unit
(A) Risk of crushing to fingers
User Manual SIPLACE D1/D2 2 Operational safety
From software version SR.605.xx 07/2008 EN Edition 2.5 Safety instructions for operating the machine
65
2.5.10 Safety instructions for the tape cutter
2

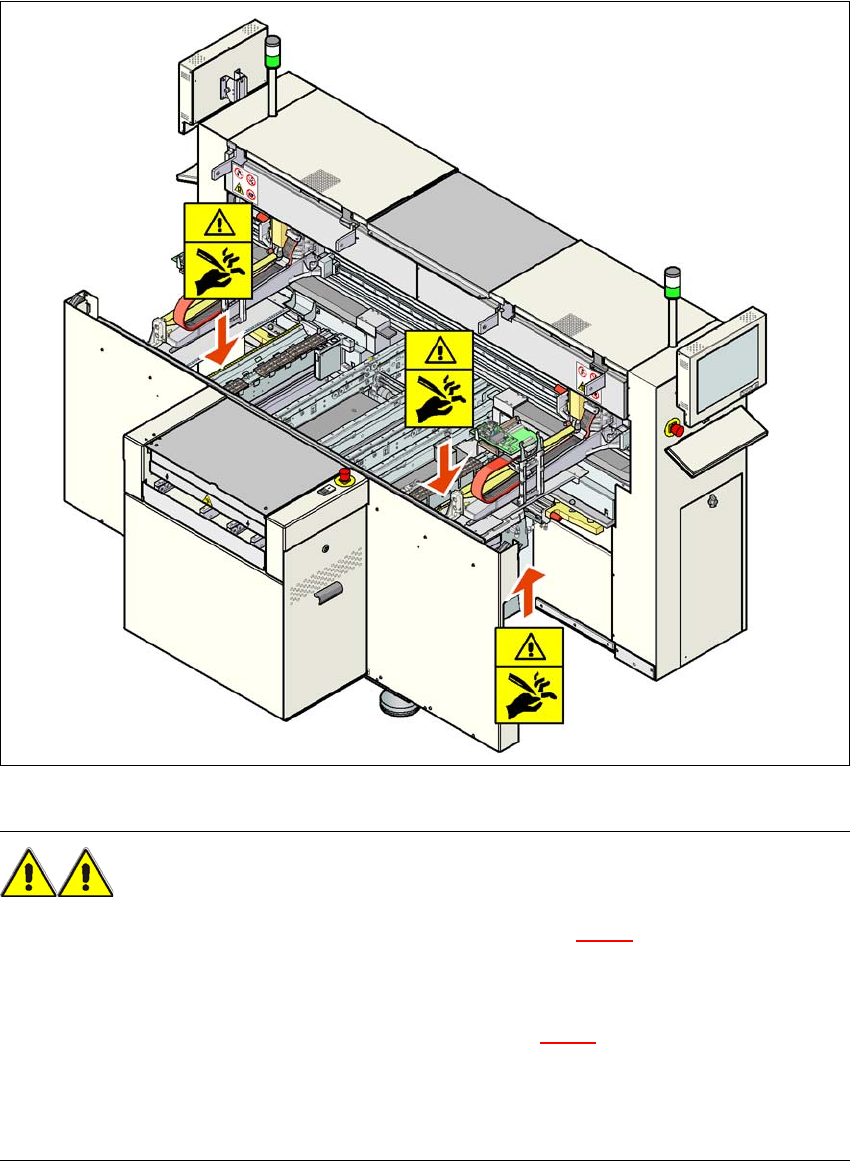

Fig. 2.5 - 6 Safety instructions for the tape cutter
WARNING RISK OF CUTTING! 2
→ Never reach down into the used tape channel (Pos. 1 in Fig. 2.5 - 6
) from above with bare
hands, even if the machine is switched off.
→ Similarly, even when the machine is switched off, do not reach up from below with bare hands
into the ejection opening of the tape cutter (Pos. 2 in Fig. 2.5 - 6
), e.g. to remove waste used
tape.
→ To remove waste used tape, it is essential to switch the machine off first and put on very sub-
stantial protective gloves, as the tape cutter bars are extremely sharp.
2 Operational safety User Manual SIPLACE D1/D2
2.6 Safety equipment From software version SR.605.xx 07/2008 EN Edition
66
2.6 Safety equipment
2.6.1 Protective covers
2

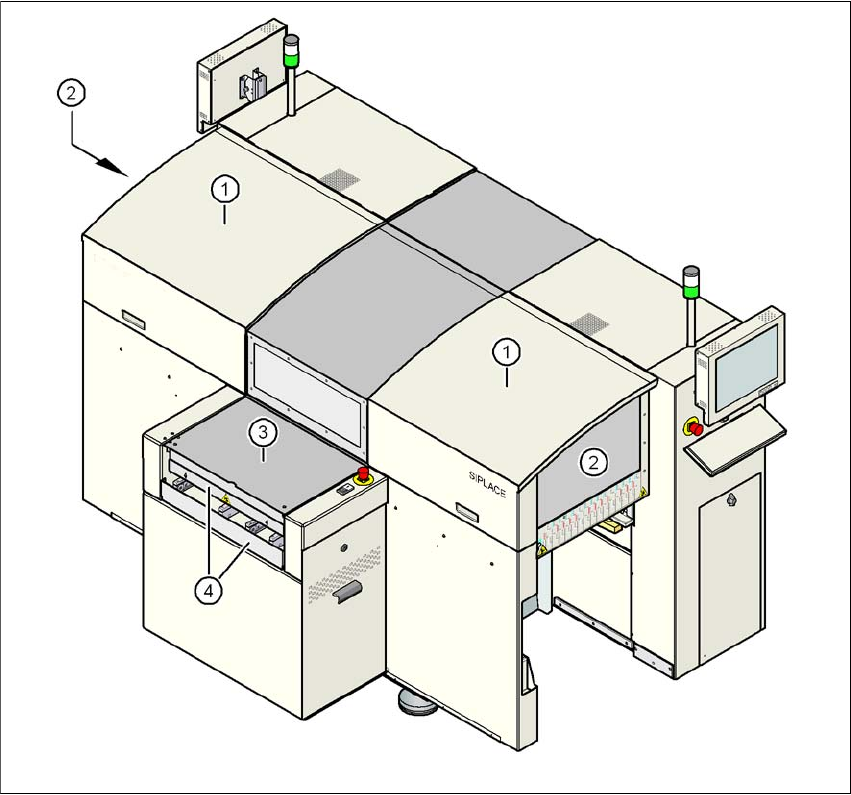

Fig. 2.6 - 1 Protective covers - viewed from the input side
(1) Protective covers
(2) Safety panels
(3) Cover flap on the input belt
(4) Hand guard on the input belt
