User Manual SIPLACE D1/D2 2 Operational safety From software version SR.605.xx 07/2008 EN Edition 2.6 Safety equipment 69 2.6.2 Switches and buttons on the machine 2.6.2.1 Position of switches and buttons on the mach ine…
2 Operational safety User Manual SIPLACE D1/D2
2.6 Safety equipment From software version SR.605.xx 07/2008 EN Edition
68
2
Fig. 2.6 - 3 Position of the start button (white) on the machine
(1) Start button (white) on the machine
User Manual SIPLACE D1/D2 2 Operational safety
From software version SR.605.xx 07/2008 EN Edition 2.6 Safety equipment
69
2.6.2 Switches and buttons on the machine
2.6.2.1 Position of switches and buttons on the machines
2
Fig. 2.6 - 4 Position of switches and buttons - View of the PCB output side
(1) Main power switch
(2) Start button (white) on the operator panel on the power supply side
(3) Stop button (black) on the operator panel on the power supply side
(4) Component counter on the operator panel on the power supply side
(5) emergency stop button on the operator panel on the power supply side
(T) PCB transport direction
2 Operational safety User Manual SIPLACE D1/D2
2.6 Safety equipment From software version SR.605.xx 07/2008 EN Edition
70
2

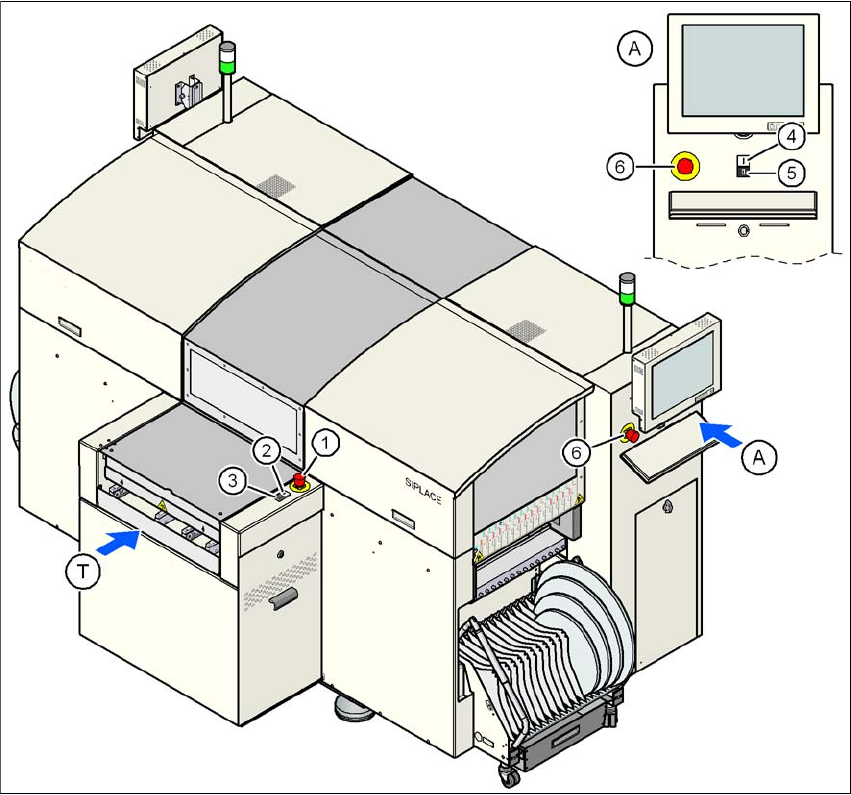

Fig. 2.6 - 5 Position of switches and buttons - View of the PCB input side
(1) EMERGENCY STOP button on the input side
(2) Start button (white) on the input side
(3) Stop button (white) on the input side
(4) Start button (white) on the operator panel on the compressed air unit side
(5) Stop button (black) on the operator panel on the compressed air unit side
(6) Emergency stop button on the operator panel on the compressed air unit side
(T) PCB transport direction
