3 Technical data for the machine User Manual SIPLACE D1/D2 3.10 Feeder modules From software version SR.605.xx 07/2008 EN Edition 162 3.10.8.16 Bulk case feeder module 3 Fig. 3.10 - 16 Bulk case feeder module Item no. 00…
User Manual SIPLACE D1/D2 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.10 Feeder modules
161
3.10.8.15 Linear vibratory feeder, type 3
3

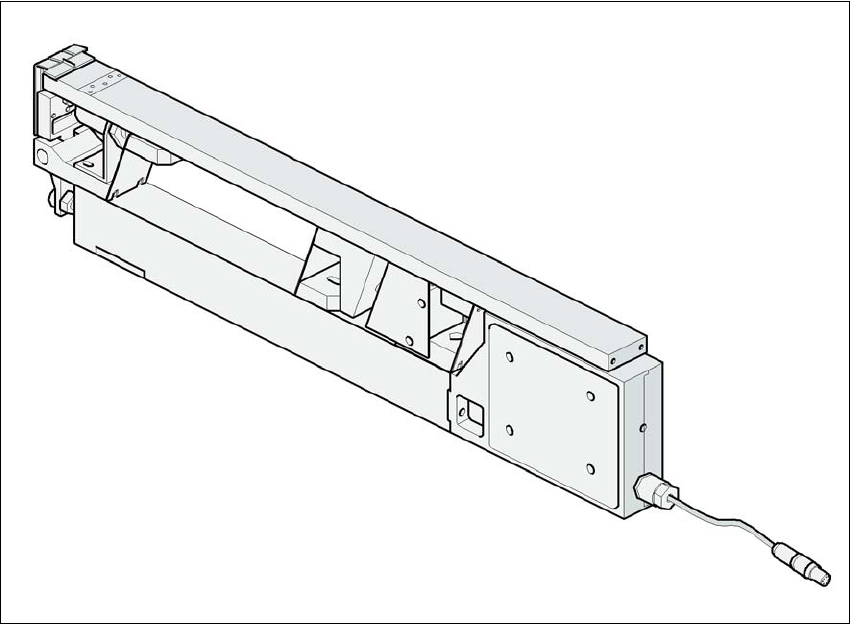

Fig. 3.10 - 15 Linear vibratory feeder, type 3
Item no. 00142031-xx 3
Width 28 mm 3
Tracks per feeder 1, 2 or 3 3
Locations filled 1 3
Max. number of feeder modules per machine 2 x 15 3
Stock of components up to 150 per steel stick magazine, 3
depending on the component length 3
Specific data for stick magazines 9.5 mm wide / 3x 3
15 mm wide / 2x 3
> 15 mm wide / 1x 3
30 mm wide / 1x 3
Vibrating time variable with SIPLACE Pro from 400 to
over 1,000 ms 3
3 Technical data for the machine User Manual SIPLACE D1/D2
3.10 Feeder modules From software version SR.605.xx 07/2008 EN Edition
162
3.10.8.16 Bulk case feeder module
3

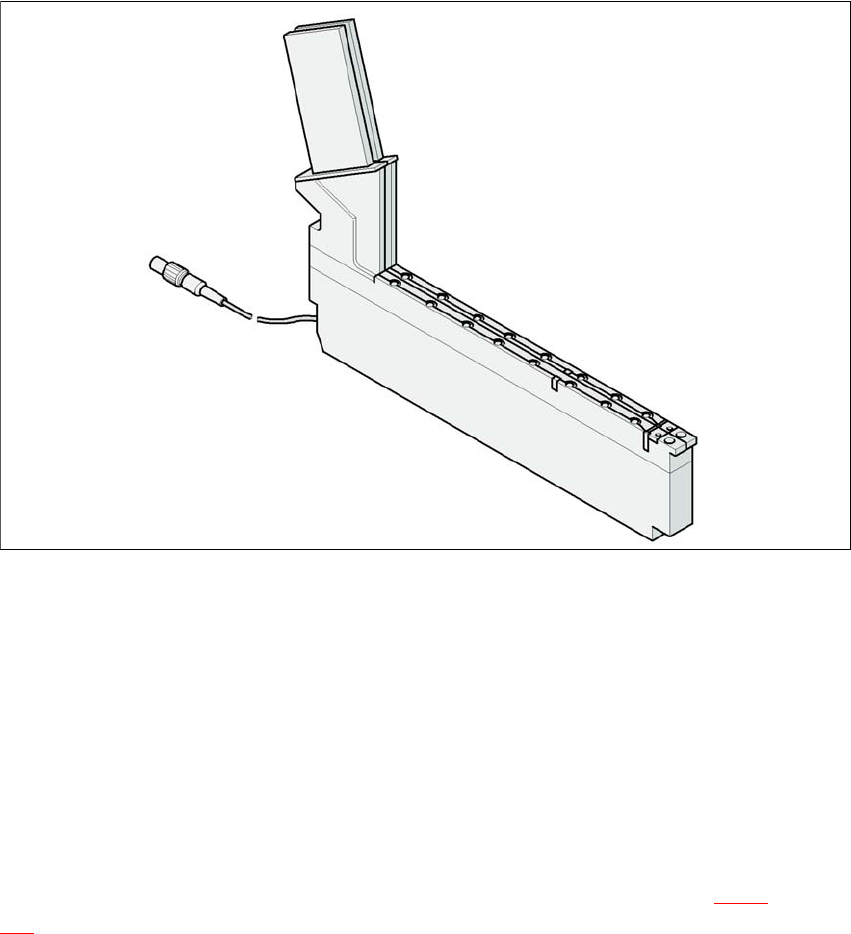

Fig. 3.10 - 16 Bulk case feeder module
Item no. 00142318-xx 3
Width 30.6 mm 3
Tracks per feeder module 2 3
Feeder module locations filled 1 3
Max. number of feeder mod. per machine2 x 15 3
Stock of components up to 50,000 3
Feeding rails 0402 / 0.5 mm high item no. 00142320-xx 3
0603 / 0.80 mm high item no. 00142322-xx 3
Cycle time < 60 ms 3
The compressed air supply for bulk case feeder modules is described in Section 3.11.6
, page
175
. 3
User Manual SIPLACE D1/D2 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.10 Feeder modules
163
3.10.8.17 Surf tape feeder module
For placing bare dies, you will need the surf tape feeder module for feeding components. There
are versions of these feeder modules for 8 mm tapes and 12 or 16 mm tapes.
3

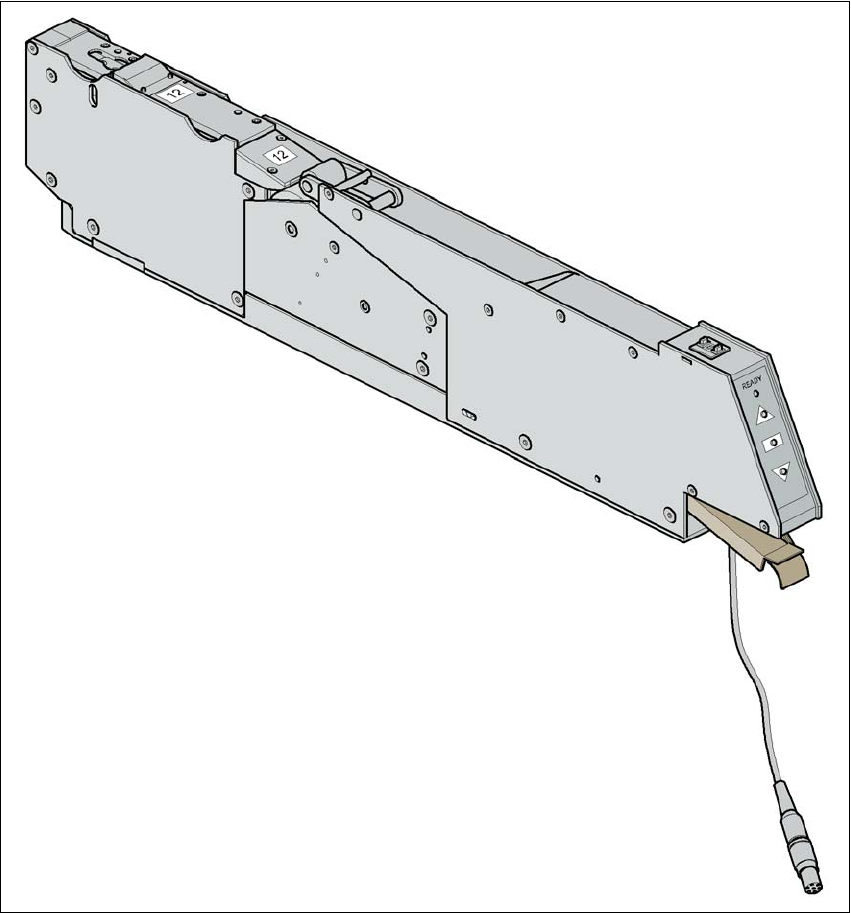

Fig. 3.10 - 17 Surf tape feeder module
Handling of the feeder module is described in the operating instructions for feeder modules.
