User Manual SIPLACE D1/D2 6 Station extensions From software version SR.605.xx 07/2008 EN Edition 6.1 Nozzle changer 265 6.1.1.5 Assembly Each nozzle changer (see Fig. 6.1 - 2 , page 263 ) is fixed to th e used tape c ha…
6 Station extensions User Manual SIPLACE D1/D2
6.1 Nozzle changer From software version SR.605.xx 07/2008 EN Edition
264
6.1.1.4 Position of the nozzle changers for the C&P12 head on the D2 machine
A nozzle changer for the 12-segment Collect&Place head may be installed at locations 1 and 2
(item 1 in Fig. 6.1 - 2
). This gives a total capacity of 2 nozzle changers with 12 magazines and a
total of 144 nozzle holders.
6

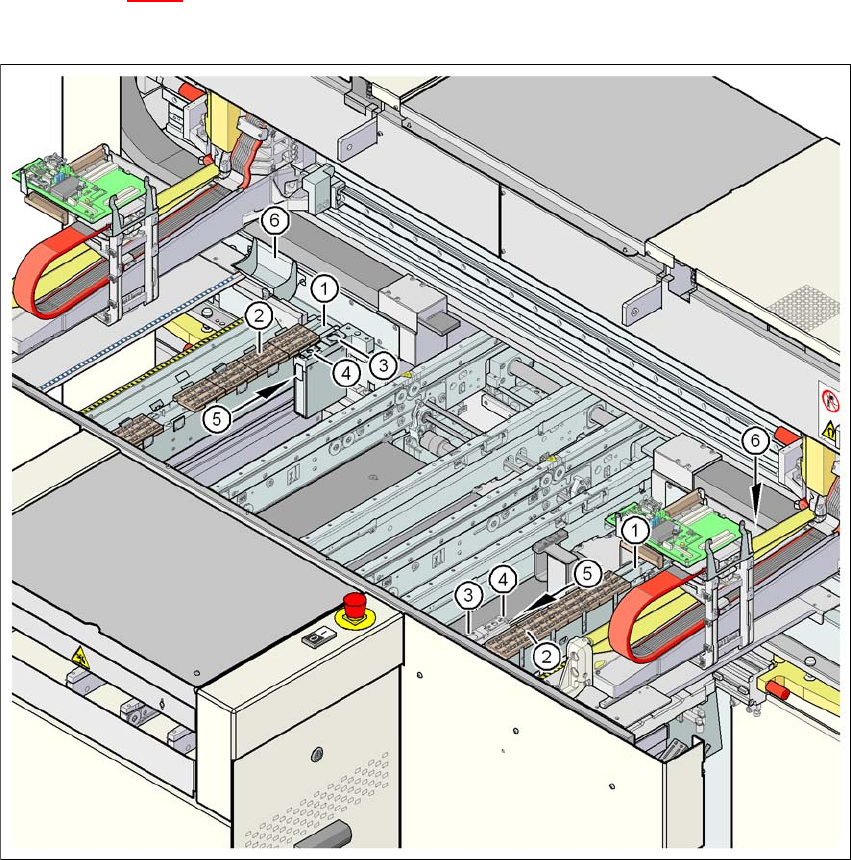

Fig. 6.1 - 3 Position of the nozzle changer for the 12-segment Collect&Place head on the D2 machine
6
(1) Nozzle changer
(2) Nozzle magazine
(3) Take-off device for nozzles, type 8xx
(4) Take-off device for nozzles, type 9xx
(5) Reject bin for nozzles
(6) Reject bin for components
User Manual SIPLACE D1/D2 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.1 Nozzle changer
265
6.1.1.5 Assembly
Each nozzle changer (see Fig. 6.1 - 2, page 263) is fixed to the used tape channel.
6

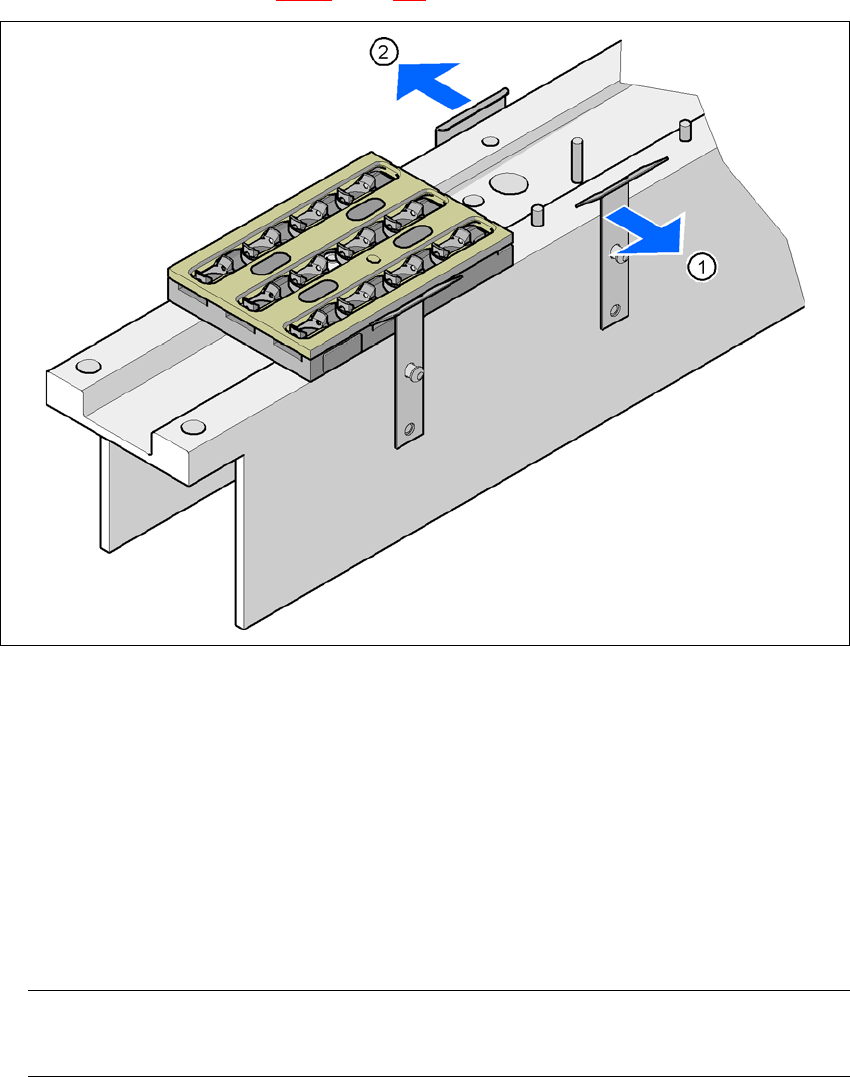

Fig. 6.1 - 4 Assembly position
(1) Spring hook pointing toward the operator
(2) Retaining clamp pointing toward the PCB conveyor
→ Align the nozzle changer so that the moving spring hooks always point toward the operator,
while the retaining clamps always point toward the PCB conveyor.
6.1.1.6 Notes on operation
→ When you fill a magazine with a certain nozzle type for the first time, attach an adhesive label
to identify the type.
PLEASE NOTE 6
Fill the magazines off the machine and always replace complete magazines. 6
→ Open the locking plate and place the nozzles in the nozzle holders.
→ Close the locking plate so that the nozzles cannot drop out of the magazines.
6 Station extensions User Manual SIPLACE D1/D2
6.1 Nozzle changer From software version SR.605.xx 07/2008 EN Edition
266
CAUTION 6
Before you fill magazine, make sure that all the nozzles on the Collect&Place head have been
returned to their magazines. 6
→ Programming the nozzle changer is described in the SIPLACE Pro user manual.
PLEASE NOTE 6
→ Do not allow components to drop onto the magazines. If they do, they could jam the locking
plate.
→ Do not allow components to drop onto free feeder module locations. They will stick to the
magnetic bar. Production may have to be interrupted if the feeder modules are not placed on
the component table correctly. You should therefore regularly clean the magazines and free
locations.
