6.8 Long board
Item no. 00119872-xx Long board option, single conveyor D1/D2
Item no. 00119873-xx Long board option, dual conveyor D1/D2
Item no. 00119631-xx Conveyor width 242/508 mm (Wide board), D1/D2/D3/D4
The following PCB formats can be placed on D1 and D2 machines:
6
6
We can supply the Long board option as a retrofit kit for placing PCBs that are over 368 mm long.
If the Long board option is installed, then the following PCB formats can be processed:
6
6
The retrofit kit consists of the following parts:
– Complete mechanism: stopper, sensors, cables and assembly parts
– Optional CD for enabling the function on the SIPLACE Pro computer
– Retrofit instructions
More detailed information can be found in the Long board retrofit instructions.
Single conveyor (standard width) 50 x 50 mm² to 460 x 460 mm²
Single conveyor, Wide board 50 x 50 mm² to 460 x 508 mm²
Dual conveyor (standard width) 50 x 50 mm² to 460 x 216 mm²
Dual conveyor, Wide board 50 x 50 mm² to 460 x 242 mm²
Dual conveyor in Single conveyor mode 50 x 50 mm² to 460 x 380 mm²
Dual conveyor in Single conveyor mode, Wide board 50 x 50 mm² to 460 x 430 mm²
Single conveyor, Long board (standard width) 50 x 80 mm² to 610 x 460 mm²
Single conveyor, Wide board, Long board 50 x 80 mm² to 610 x 508 mm²
Dual conveyor, Long board (standard width) 50 x 80 mm² to 610 x 216 mm²
Dual conveyor, Wide board, Long board 50 x 80 mm² to 610 x 242 mm²
Dual conveyor in Single conveyor mode, Long board (stan-
dard width)
50 x 80 mm² to 610 x 380 mm²
Dual conveyor in Single conveyor mode, Long board, Wide
board
50 x 80 mm² to 610 x 430 mm²
User Manual SIPLACE D1/D2 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.9 Magnetic pin support
299
6.9 Magnetic pin support
Item no. 00119680-xx Magnetic pin support
Wide boards tend to deflect during placement such that, under certain circumstances, the compo-
nents can no longer be placed with the desired accuracy. Highly curved PCBs also affect the
placement accuracy. This problem can be easily rectified by fitting magnetic pin supports on the
lifting table.
6

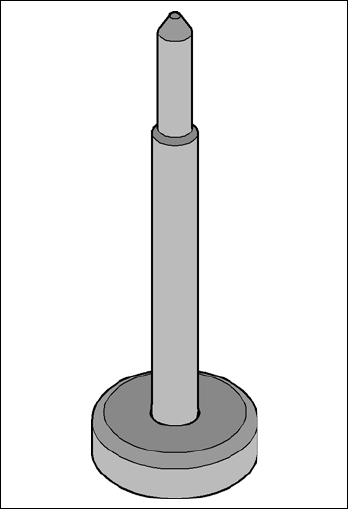

Fig. 6.9 - 1 Magnetic pin support
6 Station extensions User Manual SIPLACE D1/D2
6.10 Feeder module cover flap From software version SR.605.xx 07/2008 EN Edition
300
6.10 Feeder module cover flap
Item no. 00119810-xx Feeder module cover flap, locations 1 and 2, D1
Item no. 00119811-xx Feeder module cover flap, location 2, D1
Item no. 00119812-xx Feeder module cover flap, location 1, D1
Item no. 00119854-xx Feeder module cover flap, location 1, D2
Item no. 00119855-xx Feeder module cover flap, locations 1 and 2, D2
Item no. 00119856-xx Feeder module cover flap, location 2, D2
6
The feeder module cover flap is installed over the component feeder area. It is designed to prevent
a head crash with an upright feeder module retainer that has not been engaged correctly. The
feeder module cover flap can also prevent the front panel of feeder modules entering the place-
ment head traveling range due to incorrect operation.
In addition, a head crash is prevented when a component trolley is changed if the placement head
is over the feeder modules. The component table cannot be raised by pressing the push-button
until the placement head is outside the feeder modules and the cover flap has been opened.
6
Fig. 6.10 - 1 Feeder module cover flap
(1) Feeder module cover flap
(2) Mechanical lock
(3) Switch in the EMERGENCY STOP circuit
The switch for the feeder module cover flap is looped into the EMERGENCY STOP circuit. The
feeder module cover flap must be locked mechanically, which causes the switch to close the open
EMERGENCY STOP circuit.
