User Manual SIPLACE D1/D2 2 Operational safety
From software version SR.605.xx 07/2008 EN Edition 2.6 Safety equipment
71
2.6.2.2 Position of protective switches on the machine
2

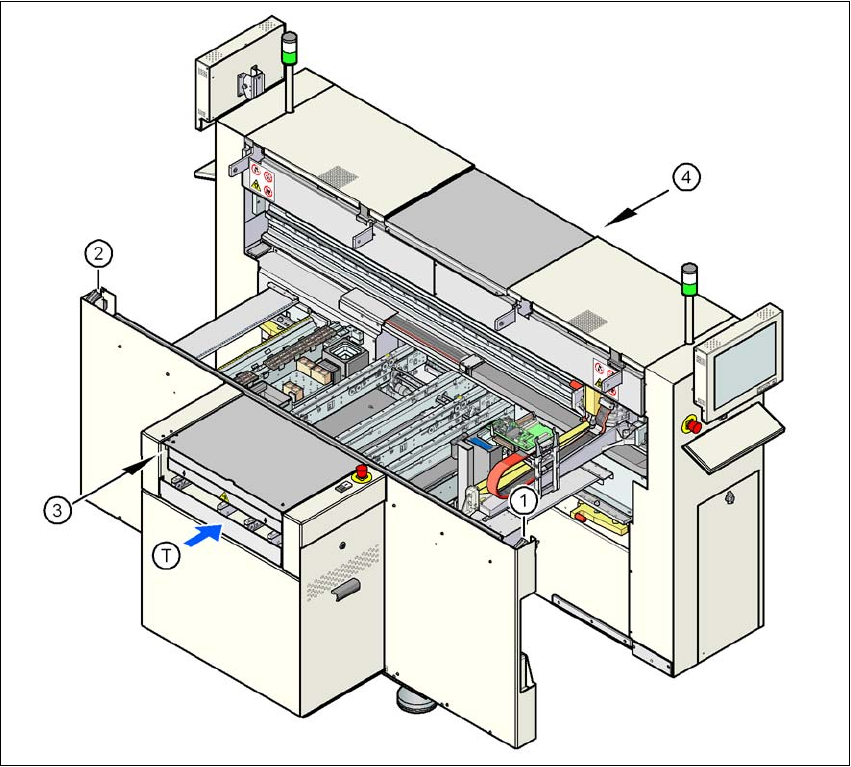

Fig. 2.6 - 6 Position of protective switches on the machine
2
(1) Protective cover switch, location 1
(2) Protective cover switch, location 2
(3) Protective switch for the cover flap on the PCB conveyor input side
(4) Protective switch for the cover flap on the PCB conveyor output side
(T) PCB transport direction
2 Operational safety User Manual SIPLACE D1/D2
2.6 Safety equipment From software version SR.605.xx 07/2008 EN Edition
72
2.6.2.3 Position of control computer, machine controller, connecting sockets and
buttons for the component trolley
2
Fig. 2.6 - 7 Control computer, machine controller, connecting sockets and buttons for the component trolley
(1) Socket for connecting the component trolley
(2) Push-button for raising the component table, with the hinged cover flap over it
(3) Control computer
(4) Machine controller
(T) PCB transport direction
User Manual SIPLACE D1/D2 2 Operational safety
From software version SR.605.xx 07/2008 EN Edition 2.6 Safety equipment
73
2.6.2.4 Description of the functions
Main power switch in the OFF position (item 1 in Fig.
2.6 - 4, page 69) 2
The main power switch disconnects the three phases U, V and W from the power supply.
WARNING 2
The following power supply components still carry potentially lethal voltages even if the main
power switch is switched off:
– Infeed terminals X100 (item 3 in Fig. 2.6 - 8
, page 75)
– Discharge reactor Z2 (item 5 in Fig. 2.6 - 8
, page 75), fuses FU, FV, FW and FBU (item 2 in
Fig. 2.6 - 8
, page 75)
– Line filter Z1 (item 6 in Fig. 2.6 - 8
, page 75)
– Service socket BU1 (item 4 in Fig. 2.6 - 8
, page 75)
– Cable connection terminals 1, 3, and 5 of the S1 main power switch (item 7 in Fig. 2.6 - 8
,
page 75
)
– The color of all individual wires, which still carry potentially lethal voltages even if the main
power switch is switched off, is brown.
→ Death, serious injury or considerable damage may result if these machines are handled in-
correctly.
→ Always follow the applicable accident prevention and DIN regulations (particularly DIN EN 60
204, part 1) and the applicable regulations in your own country.
→ The safety door to the power supply must ONLY be opened by appropriately qualified and
trained personnel.
Main power switch in the ON position 2
After switching on the main power switch, the control computer and the machine controller will
start. All supply voltages, apart from the link voltages for the gantry axes (200 V) and the star axes
(150 V) are then available.
Stop button, black (item 3 in Fig. 2.6 - 4, page 69 and item 3 and 5 in Fig. 2.6 - 5, page 70)
These buttons are used to stop the machine.
Start button, white (item 2 in Fig. 2.6 - 4, page 69 and item 2 and 4 in Fig. 2.6 - 5, page 70) 2
After switching on the main power switch you will be prompted to press the start button in order to
start the machine for placement jobs. The same prompt appears if you open the protective covers
or the press the EMERGENCY STOP button.
