3 Technical data for the machine User Manual SIPLACE D1/D2
3.4 Dimensions and weight From software version SR.605.xx 07/2008 EN Edition
108
3.4.7 The machine’s center of gravity
3

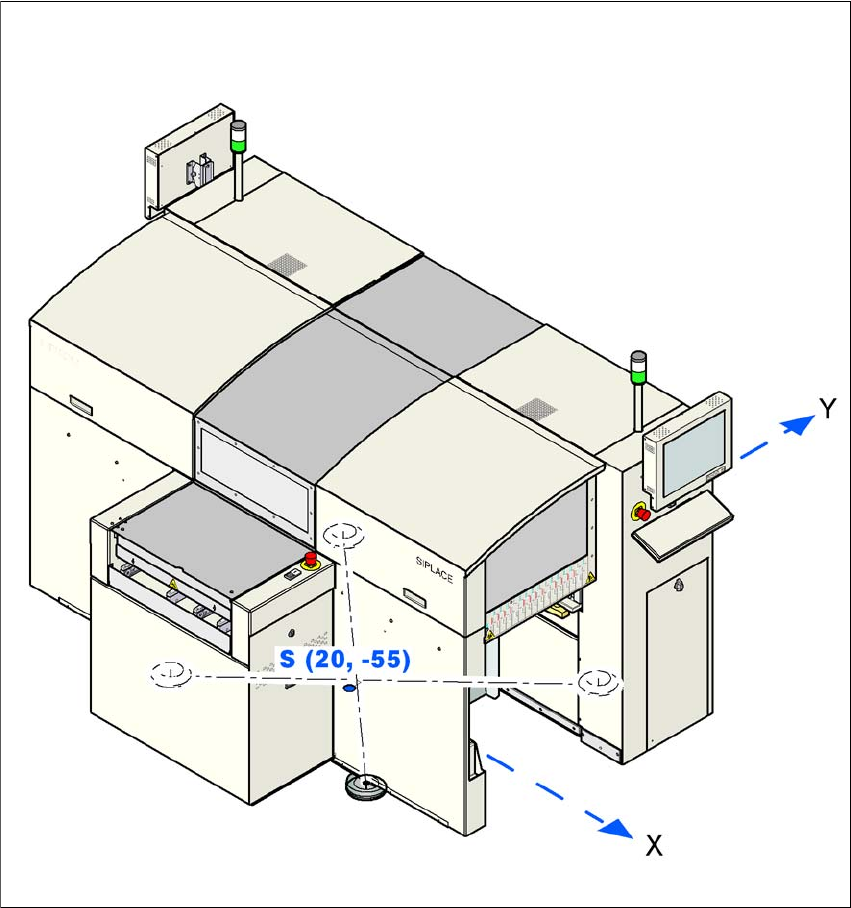

Fig. 3.4 - 6 Machine's center of gravity in millimeters
X coordinate 30 mm
Y coordinate -55 mm
User Manual SIPLACE D1/D2 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.5 Overviews of the modules
109
3.5 Overviews of the modules
3.5.1 Overview of the modules SIPLACE D1
3

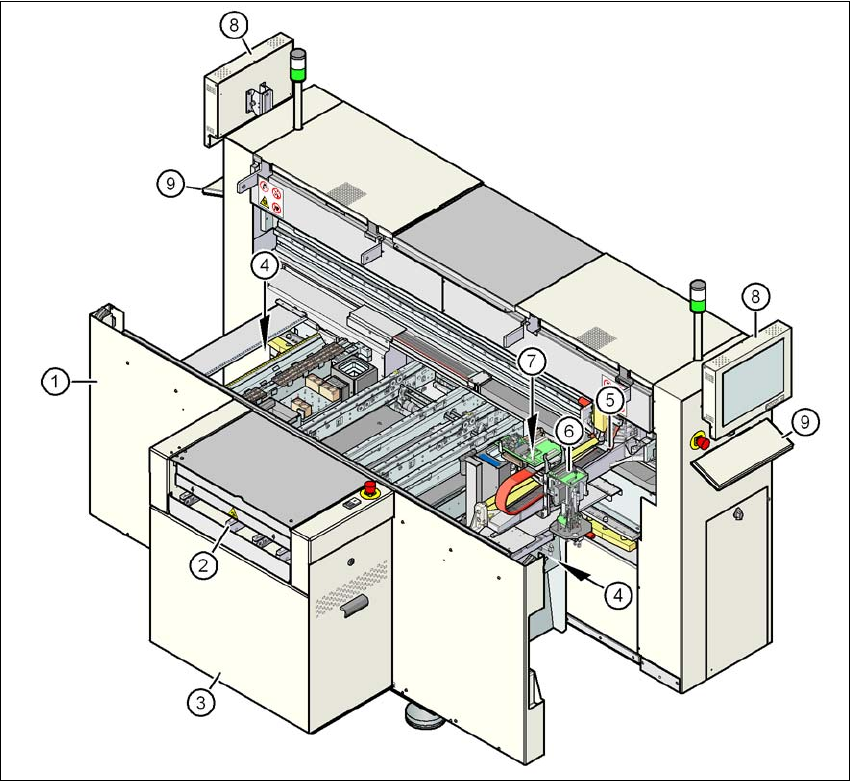

Fig. 3.5 - 1 Overview of the modules SIPLACE D1
(1) Machine frame
(2) PCB conveyor (flexible dual conveyor)
(3) extension kit
(4) Tape cutter, used tape channel (2x)
(5) Gantry 1
(6) P&P head
(7) C&P head
(8) Monitor (2x)
(9) Keyboard (2x)
3 Technical data for the machine User Manual SIPLACE D1/D2
3.5 Overviews of the modules From software version SR.605.xx 07/2008 EN Edition
110
3.5.2 Overview of the modules SIPLACE D2
3

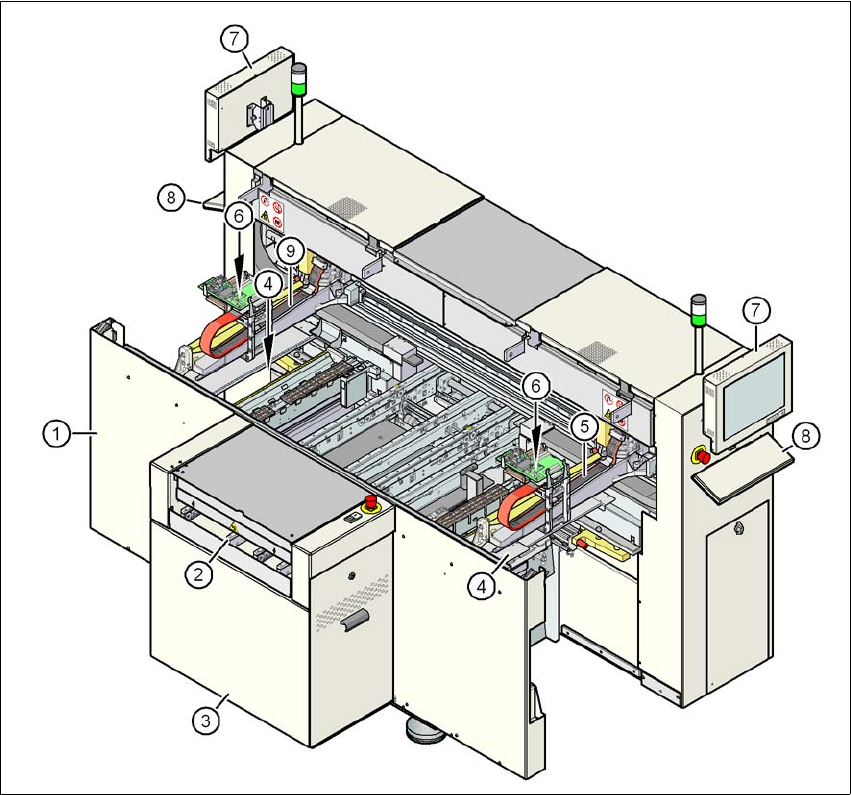

Fig. 3.5 - 2 Overview of the modules SIPLACE D2
(1) Machine frame
(2) PCB conveyor (flexible dual conveyor)
(3) extension kit
(4) Tape cutter, used tape channel (2x)
(5) Gantry 1
(6) C&P head
(7) Monitor (2x)
(8) Keyboard (2x)
(9) Gantry 2
