3 Technical data for the machine User Manual SIPLACE D1/D2 3.11 Component trolley From software version SR.605.xx 07/2008 EN Edition 176 It is easy to fit . The compres sed air distr ibutor (item 1 in Fig. 3.1 1 - 5 ) is…
User Manual SIPLACE D1/D2 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.11 Component trolley
175
3.11.4.1 Maximum tape reel diameter
The tape reels are mounted on spindles in the tape reel container. The results apply whether or
not the mount for the third tape reel is installed.
3
3
3
3.11.5 External power supply for component trolley
Item no. 00119781-xx External power supply, component trolley, D1, D2, D3
To keep the time required for a setup change as short as possible, component trolleys can be set
up in advance at a special external location. The feeder module
functions and setting can be checked there to prepare for use. We
provide an external power supply for this purpose. It is used to sup-
ply the component trolley with the required electrical power and com-
pressed air.
3.11.5.1 Technical data
The kit contains a main power cable to European standards, a main power cable to US standards
and a connecting cable between the power supply and the component trolley.
3.11.6 Compressed air supply for bulk case feeder modules
Item no. 00142335-xx Bulk case compressed air distributor
Bulk case feeder modules require compressed air in order to work. A compressed air supply for
bulk case feeder modules is therefore available as an option.
PCB conveyor height
Maximum tape reel
diameter
Without splice
detection option
With splice detection
option
950 mm
19"
17"
Yes
Yes
No
Yes
930 mm 17" Yes Yes
900 mm 17" Yes No
830 mm 15" No No
Main power voltage 230 VAC ± 5%
120 VAC ± 5%
Compressed air connection Max. 1.0 MPa (10 bar)
Output pressure Can be adjusted with pressure regulator
3 Technical data for the machine User Manual SIPLACE D1/D2
3.11 Component trolley From software version SR.605.xx 07/2008 EN Edition
176
It is easy to fit. The compressed air distributor (item 1 in Fig. 3.11 - 5) is fastened to the component
table (item 3 in Fig. 3.11 - 5
) with two screws (item 2 in Fig. 3.11 - 5). The distributor is then con-
nected to the compressed air supply of the component trolley. The distributor has retaining clips
on the back (item 4 in Fig. 3.11 - 5
). They fix the bulk case feeder modules to the component table
and thus ensure a perfect compressed air supply.
3

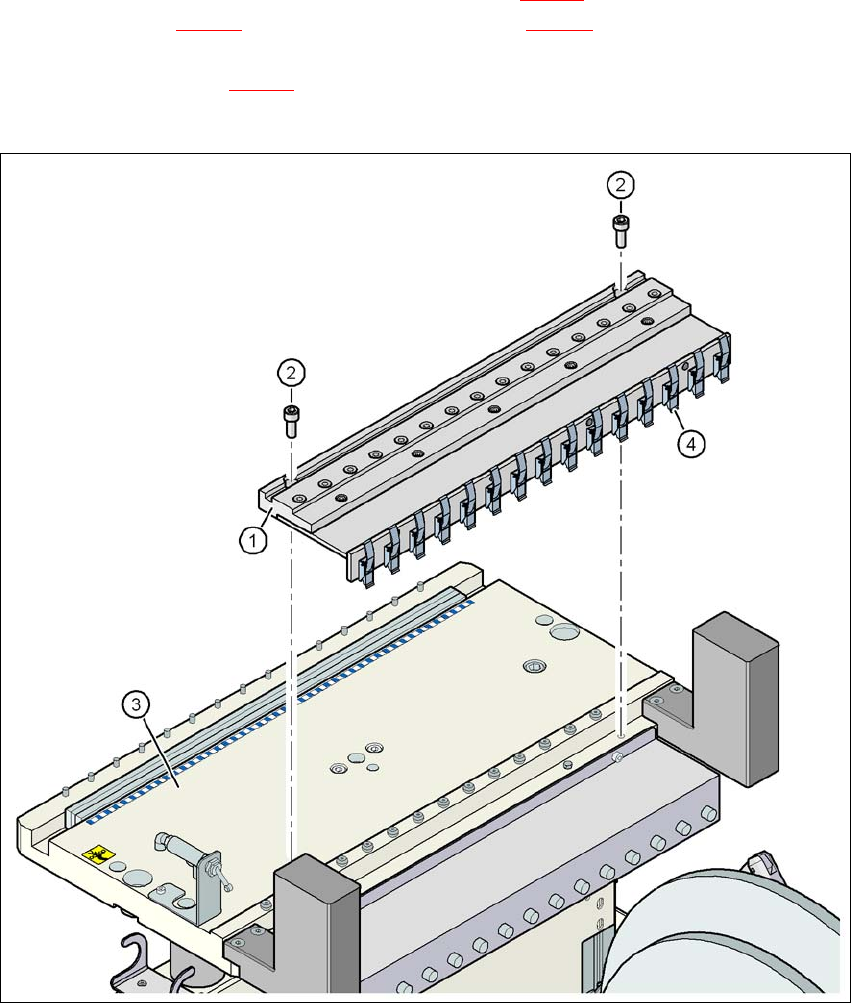

Fig. 3.11 - 5 Compressed air supply for bulk case feeder modules
(1) Compressed air distributor
(2) DIN 912 screw, M8x20, 2x
(3) Component table
(4) Retaining clamps
User Manual SIPLACE D1/D2 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.11 Component trolley
177
3.11.7 Reel holder for the middle tape reel on 3 x 8 mm S feeder modules
Item no. 00119846-xx Adapter plate for tape reel holder D1, D2
Item no. 00141204-xx Tape reel holder, 3 x 8 mm feeder module, V2
Item no. 00141215-xx Tape reel holder, 3 x 8 mm feeder module, V2, track 1
Type 3 x 8 mm S feeder modules transport components to the pick-up position on three feeder
tracks. The tape reels for the two outer tracks are located between the dividing plates in the tape
container. The middle tape reel is arranged over the tape reels for the two outer tracks. Use the
reel holder for the middle tape reel when more than two 3 x 8 mm S feeder modules are to be used
per component trolley.
For the middle tape reels you will also need:
– 1 adapter plate for holding the tape reel holder (item 1 in Fig. 3.11 - 6
) and
– for every two feeder modules, 1 tape reel holder (item 2 in Fig. 3.11 - 6
)
– On track 1: Tape reel holder with shortened idler pulley for 1 feeder module (item 3 in Fig. 3.11
- 6)
Fig. 3.11 - 6 Reel holder for the middle tape reel on 3 x 8 mm S feeder modules
