3 Technical data for the machine User Manual SIPLACE D1/D2
3.10 Feeder modules From software version SR.605.xx 07/2008 EN Edition
150
3.10.8.4 3 x 8 mm S tape feeder module for 0201/0402 components
3
Fig. 3.10 - 4 3x8mm S tape feeder module for 0201/0402 components
3
Item no. 00141099-xx 3
Width 30.6 mm 3
Tracks per feeder module 3 3
Feeder module locations filled 1 3
Max. number of feeder modules per machine 2 x 15 3
Stock of components for 7" reels Approx. 10,000 3
Conveyor increment 2 mm / 4 mm 3
Tape material Paper tapes 3
Max. component height 0.7 mm 3
Component range 0201/0402 3
User Manual SIPLACE D1/D2 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.10 Feeder modules
151
3.10.8.5 Tape feeder module 3 x 8 mm SL for 0201 and larger components
3

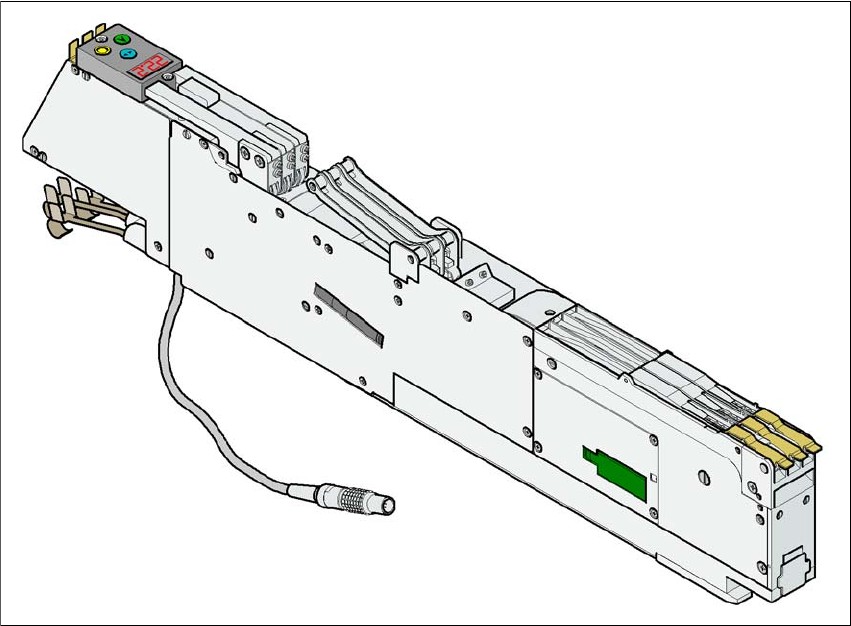

Fig. 3.10 - 5 Tape feeder module 3x8mm SL
a
for 0201 and larger components
3
Item no. 00141088-xx 3
Width 30.6 mm 3
Tracks per feeder module 3 3
Feeder module locations filled 1 3
Max. number of feeder modules per machine 2 x 15 3
Stock of components for 7" reels Approx. 10,000 3
Conveyor increment 2 mm / 4 mm / 8 mm 3
Tape material Paper or blister tapes 3
Max. component height 2.5 mm 3
Component range from 0201 3
2 pick-up positions Front position: component ≥ 1.6 mm
Rear position: component ≤ 1.6 mm 3
3
The new "Feed on Demand" principle has been implemented on this feeder module to reduce the
component rejection rate. The components are not transported to the pick-up position until the
placement head moves to the pick-up position.
a SL = shutterless, that is without any component cover
3 Technical data for the machine User Manual SIPLACE D1/D2
3.10 Feeder modules From software version SR.605.xx 07/2008 EN Edition
152
3.10.8.6 12/16 mm S tape feeder module
3
Fig. 3.10 - 6 12/16 mm S tape feeder module
Item no. 00141092-xx 3
Width 30.3 mm 3
Tracks per feeder module 1 3
Feeder module locations filled 1 3
Max. number of feeder modules per machine 2 x 15 3
Stock of components for 7" reels Approx. 4,000 3
Conveyor increment from 4 to 24 mm in 4 mm increments 3
Tape material Paper or blister tapes 3
Max. component height 14 mm 3
