User Manual SIPLACE D1/D2 4 Setting up and commissioning
From software version SR.605.xx 07/2008 EN Edition 4.1 Transport and delivery configuration
185
4 Setting up and commissioning
4.1 Transport and delivery configuration
4.1.1 Shipping packaging
Within Europe, the machine and the CO trolleys are supplied on two pallets and wrapped in plastic
film. They will be dispatched overseas in two robust wooden crates.
4.1.1.1 Dimensions of the shipping packaging
4
4
4

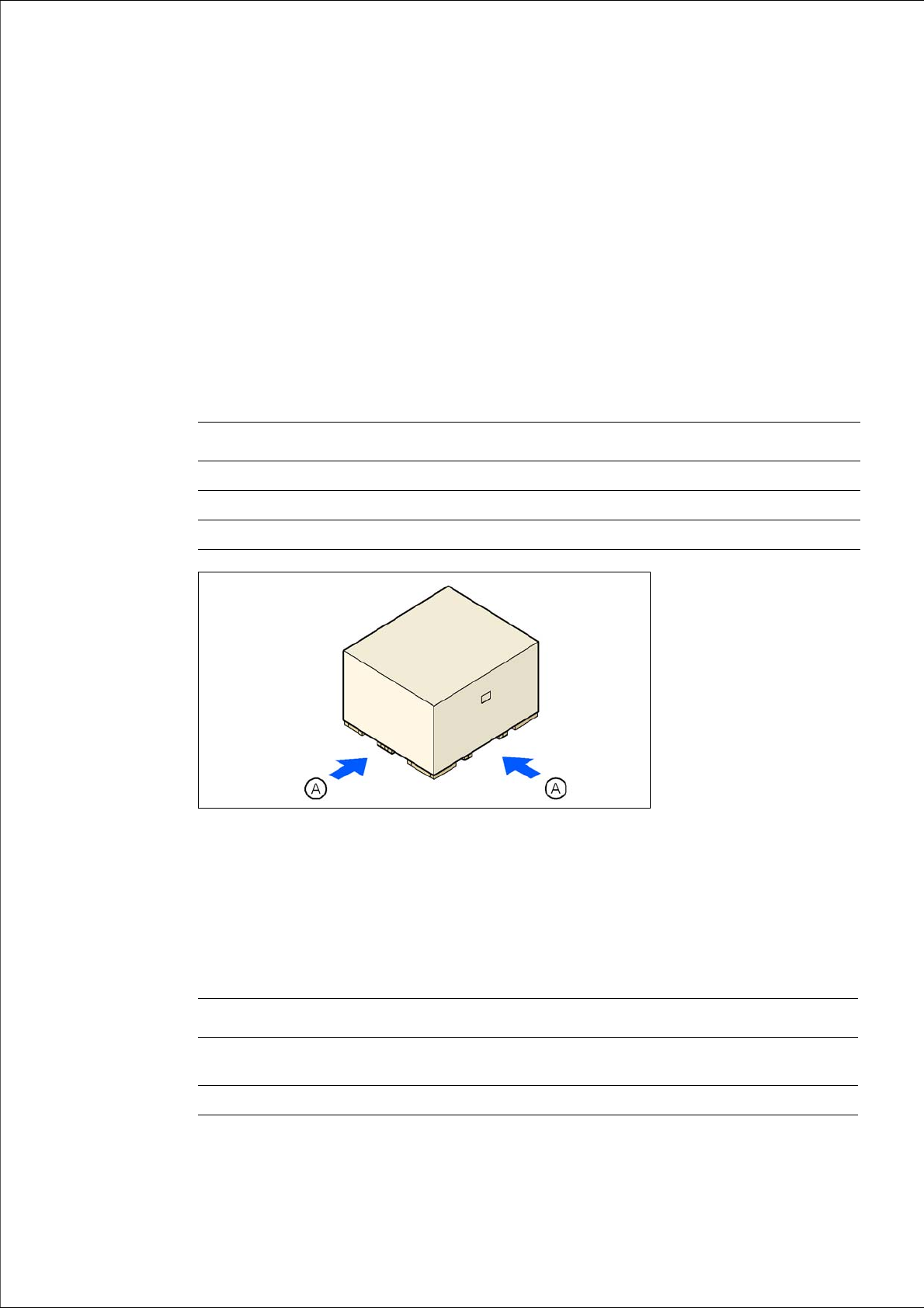

Fig. 4.1 - 1 Transport crate - dimension in millimeters
(A) Fork-lift attachment points
4.1.1.2 Weight of the machine prepared for dispatch
The following table contains the weights of the machines prepared for dispatch, including packag-
ing.
4
Crate for the machine Crate for the component trolleys
Length 2570 mm 1700 mm
Width 1860 mm 1200 mm
Height 1600 mm 1300 mm
Weight Dispatch within Europe Dispatch overseas
SIPLACE D1
SIPLACE D2
2240 kg
2258 kg
2604 kg
2622 kg
CO trolley 370 kg 450 kg
4 Setting up and commissioning User Manual SIPLACE D1/D2
4.1 Transport and delivery configuration From software version SR.605.xx 07/2008 EN Edition
186
4.1.2 Checking a delivery
→ Store the machine in the packaging until room temperature has been reached. There is oth-
erwise a risk of condensation occurring.
→ Check the delivery for damage.
→ Check the shock sensors.
→ Unpack the machine and the accessories and check the delivery for completeness (reference
delivery note).
→ Document the result in the installation report / acceptance testing report.
4.1.3 Configuration when delivered
The machine is configured as follows when delivered:
– The track on the single conveyor is set to a width of 210 mm. On the dual conveyor, the width
of conveyor track 1 is 100 mm and conveyor track 2 is 210 mm. These preset PCB conveyor
widths make it easier to remove the extension kit and conveyor on the input side of the ma-
chine when this is necessary for reasons of space in order to transport the machine.
– Both keyboards (item 1 in Fig. 4.1 - 2
) are unplugged.
– The supporting plates for the keyboards (item 2 in Fig. 4.1 - 2
) are detached.
– Both monitors (item 3 in Fig. 4.1 - 2
) are dismantled.
– Both indicator lamps (item 4 in Fig. 4.1 - 2
) are dismantled.
– All the gantry axes are fixed with shipping braces.
User Manual SIPLACE D1/D2 4 Setting up and commissioning
From software version SR.605.xx 07/2008 EN Edition 4.1 Transport and delivery configuration
187
4

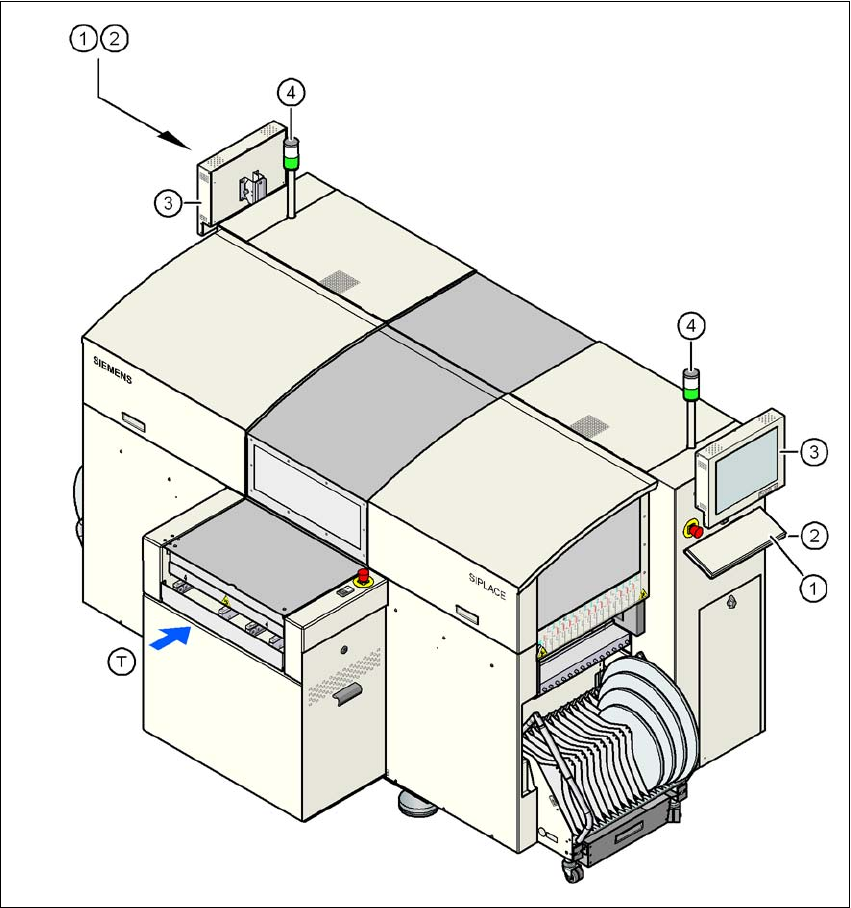

Fig. 4.1 - 2 Delivery configuration of the D1/D2 machines
(1) Keyboard
(2) Keyboard supporting plate
(3) Monitor
(4) Indicator lamp
(T) PCB transport direction
