2 Operational safety User Manual SIPLACE D1/D2
2.2 Warning labels From software version SR.605.xx 07/2008 EN Edition
50
2.2.4 Warning labels on the main power supply
2
Pos. W206 in Fig. 2.2 - 7, item no. 03009345-01 (number per machine: 2), Pos. W and Pos. W1
Fig. 2.2 - 7 Warning label W206, W and W1 on the power supply unit
Pos. W206 Beneath service socket BU1 and on the cover over the
inrush current limiter (EST)
Pos. W Warning label on the line filter and on the rectifier and
electrolytic capacitor covers
Pos. W1 Warning label on the main switch S1
DANGEROUS VOLTAGES!
The labeled parts are still live when the main power switch is off.
Disconnect the machine from the mains before servicing it.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
User Manual SIPLACE D1/D2 2 Operational safety
From software version SR.605.xx 07/2008 EN Edition 2.2 Warning labels
51
2.2.4.1 Warning label W on the cover over the main power supply for the servo
amplifier
Fig. 2.2 - 8 Warning label W on the cover over the main power supply for the servo amplifier
2
Pos. W in Fig. 2.2 - 8 (number per power supply unit: 4) see Fig. 2.2 - 7 too, page 50.
2 Operational safety User Manual SIPLACE D1/D2
2.2 Warning labels From software version SR.605.xx 07/2008 EN Edition
52
2.2.5 Warning label on the axis unit
2
Pos. W207 in Fig. 2.2 - 9, item no. 03009346-01 (number per machine: 1)
2

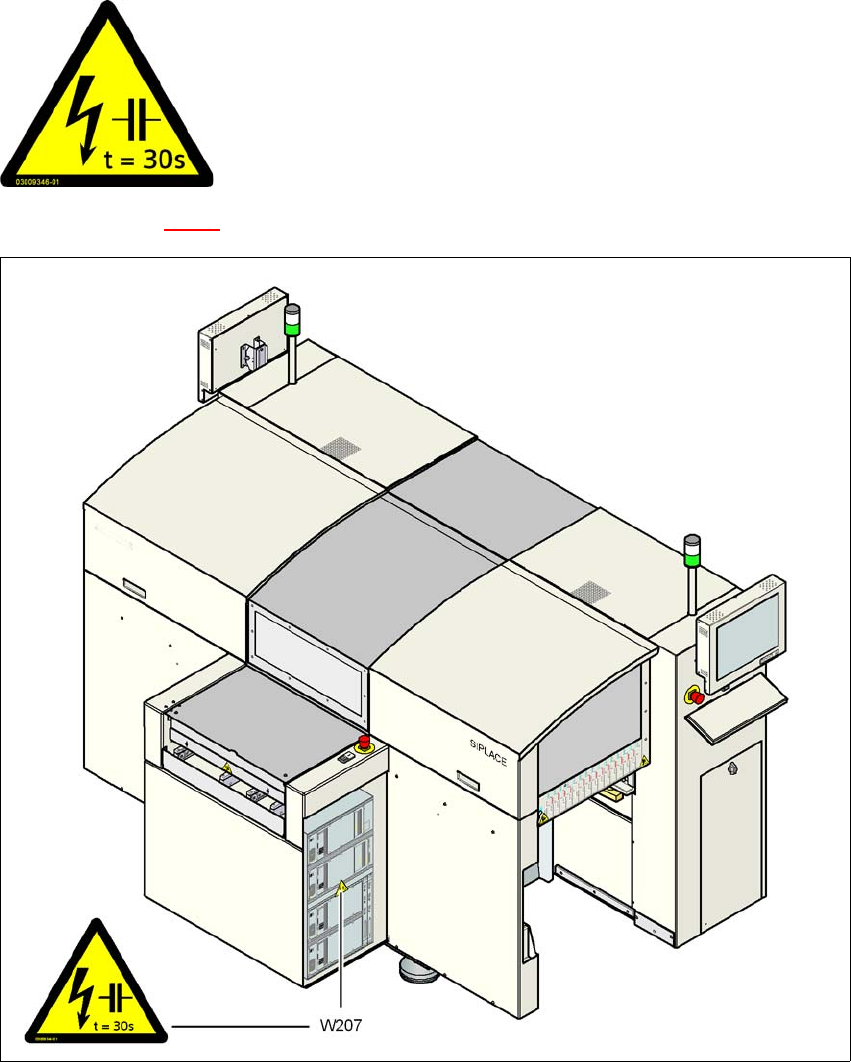

Fig. 2.2 - 9 Warning label W207 on the axis unit Macrolon panel
Pos. W207, item no. 03009346-01
2
2
MAIN POWER VOLTAGE!
Switch off the main power switch and wait 30 seconds until the
capacitors have discharged.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
