6 Station extensions User Manual SIPLACE D1/D2 6.1 Nozzle changer From software version SR.605.xx 07/2008 EN Edition 278 S pecial nozzles are available for all pla cement heads in order to process placement jobs with max…
User Manual SIPLACE D1/D2 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.1 Nozzle changer
277
6

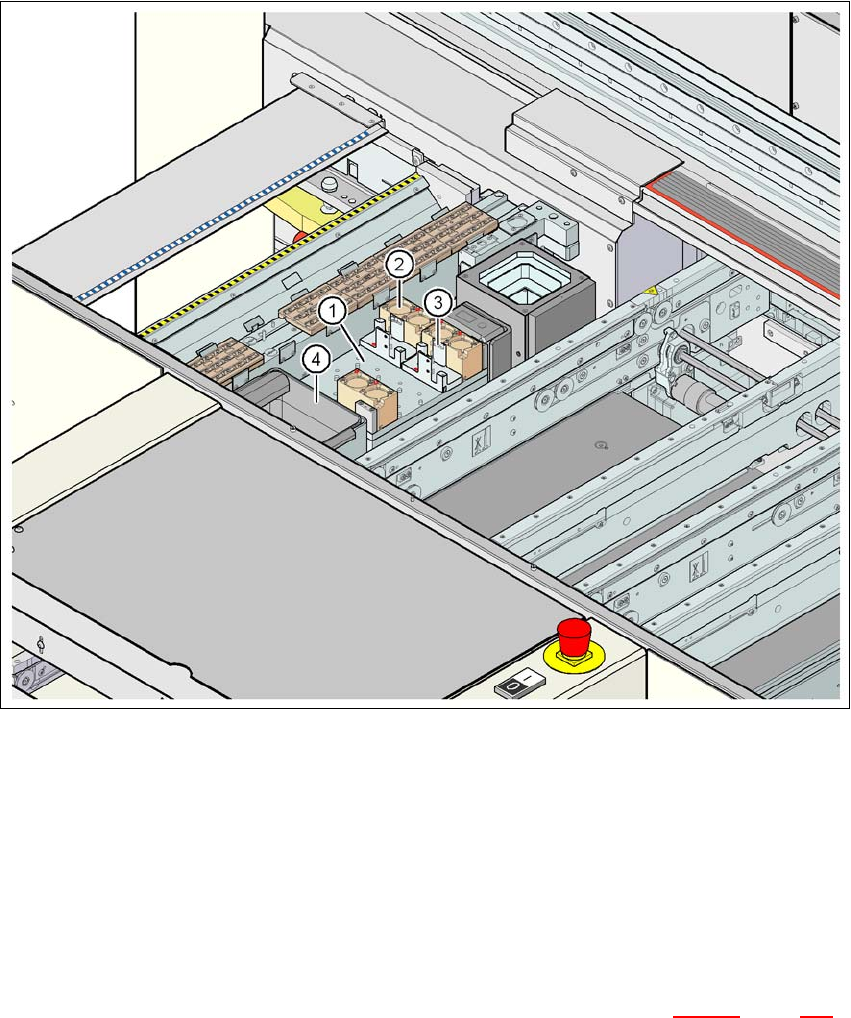

Fig. 6.1 - 12 Position of the nozzle changer for the Pick&Place head on the D1 machine
(1) Nozzle changer
(2) Standard magazine
(3) Magazine for special nozzles or grippers
(4) Component reject bin
6
6.1.3.4 Assembly
The nozzle changer is fixed to the machine frame at location 2 (item 1 in Fig. 6.1 - 12, page 277).
6.1.3.5 Grippers and special nozzles
The SIPLACE machines can process components based on through hole technology and odd-
shaped (OSC) components, in addition to the standard SMT spectrum. SIPLACE Company also
continuously develops special nozzles and grippers in parallel.
6 Station extensions User Manual SIPLACE D1/D2
6.1 Nozzle changer From software version SR.605.xx 07/2008 EN Edition
278
Special nozzles are available for all placement heads in order to process placement jobs with max-
imum speed, precision and flexibility. The use of automatic nozzle changers also reduces the set-
up times that occur at a product change.
SIPLACE Company can provide mechanical grippers for Pick&Place heads. If a component's sur-
face is not suitable for sucking up with nozzles, then it can be picked up and placed with mechan-
ical grippers. There are two types of gripper, and their functions can be divided into two groups:
– Grippers that grip the component at its outer edges and
– Grippers that grip the component at its inner edge.
Information on special nozzles and grippers is available from SIPLACE Company. For the produc-
tion of special magazines and grippers, again contact SIPLACE Company.
6.1.3.6 Component reject bin
A component reject bin may be installed for the SIPLACE Pick&Place head (item 4 in Fig. 6.1 -
12, page 277). It is positioned beside the nozzle changer at location 2 on the D1 machine.
6
Fig. 6.1 - 13 Component reject bin
User Manual SIPLACE D1/D2 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.2 Waffle-pack changer (WPC)
279
6.2 Waffle-pack changer (WPC)
Item no. 00119825-xx WPC4 on the SIPLACE D-series
6.2.1 Safety instructions
WARNING 6
→ Never reach into the gaps between the waffle-pack changer and the machine base while the
machine is running.
→ The waffle-pack changer control cable must only then be connected to the connecting socket
or taken from this if the waffle-pack changer is docked into the machine.
→ The power supply cable must not be plugged into or unplugged from the external power sup-
ply unless the waffle-pack changer is docked into the machine.
→ The waffle-pack changer must NOT be operated unless it is docked into the machine.
6.2.2 Description
The waffle-pack changer makes components available in the waffle-pack trays to avoid unneces-
sary loss of time during storage and automatic changing of the waffle-pack trays.
Programmable, random access to up to 28 waffle-pack trays also increases the range of compo-
nents that can be made available.
The waffle-pack changer has an integral chassis, and is easy to move to other locations. It is sup-
plied with the PCB conveyor height implemented for the machines, but can also be adapted for
the 830, 900, 930 and 950 mm PCB conveyor heights with just a few simple operations. There are
5 locations for 30 mm width S feeder modules available on the component table.
