5 Tasks for the operating personnel User Manual SIPLACE D1/D2
5.1 Personnel profile From software version SR.605.xx 07/2008 EN Edition
234
5.1.3.2 Tasks
The service personnel's duties include:
– Major preventive maintenance jobs
– Mounting replacement parts
– Editing machine data
– Calibrating the machine
5.1.4 Operator level "Programmer"
5.1.4.1 Training courses
A list of training courses can be found in Section 1.3, page 27.
5.1.4.2 Tasks
The programmer's jobs are as follows:
– Preparing CAD files
– Creating and calibrating vision data (teaching)
– Writing placement programs
– Implementing a new job
– Data maintenance
– Data backup
User Manual SIPLACE D1/D2 5 Tasks for the operating personnel
From software version SR.605.xx 07/2008 EN Edition 5.2 Controls and displays
235
5.2 Controls and displays
5.2.1 Position - part 1
5

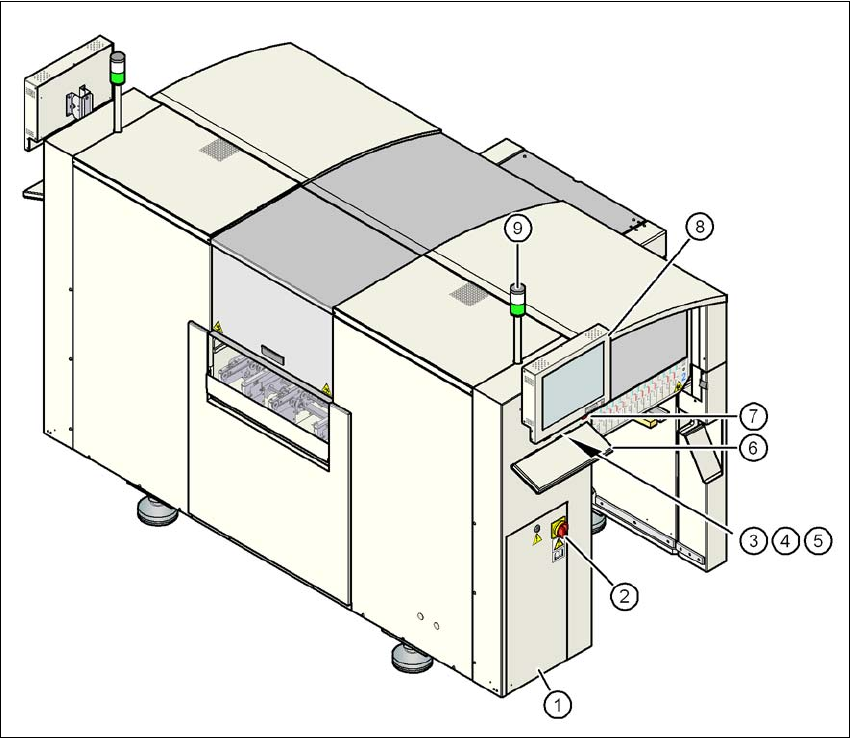

Fig. 5.2 - 1 Controls and displays - part 1
(1) Operator panel on the power supply side
(2) Main power switch
(3) Start button (white)
(4) Stop button (black)
(5) Component counter
(6) Keyboard
(7) EMERGENCY STOP button
(8) LCD touchscreen
(9) Indicator lamp
5 Tasks for the operating personnel User Manual SIPLACE D1/D2
5.2 Controls and displays From software version SR.605.xx 07/2008 EN Edition
236
5.2.2 Position - part 2
5
Fig. 5.2 - 2 Controls and displays - part 2
(1) Operator panel on the pneumatic side
(2) EMERGENCY STOP button
(3) Keyboard
(4) Start button (white)
(5) Stop button (black)
(6) LCD touchscreen
(7) Indicator lamp
(8) Button for raising the component table
